Technical specifications
Esotec Series 7

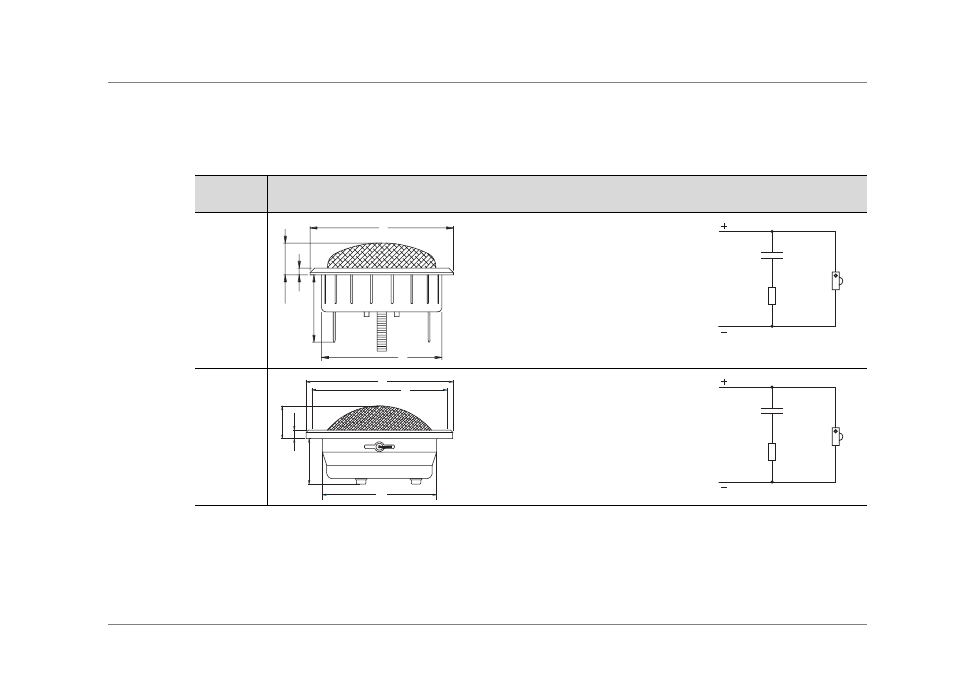

Installation dimensions and impedance correction circuit
Tweeter/Midrange
Installation dimensions (in mm) Impedance correction
circuit
MD 102
1 Max. Ø 62.2
2 Mounting hole Ø 52.1 - 55.5
3 29.1
4 3
5 13.86
MD 142
1 Max. Ø 121
2 3 holes Ø 4 on Ø 110.9
3 Mounting hole Ø 96 (add cut-outs
for terminals)
4 Max. 37.5
5 7.5
6 Max. 30
1
2
3
5
4
1.2 μF
8.2 Ω
1
2
3
4
5
6
5.6 μF
6.8 Ω
