2
4
1
1
2
4
6
2
3
5
3
1
2
1
6-08
TP20171,Rev.6

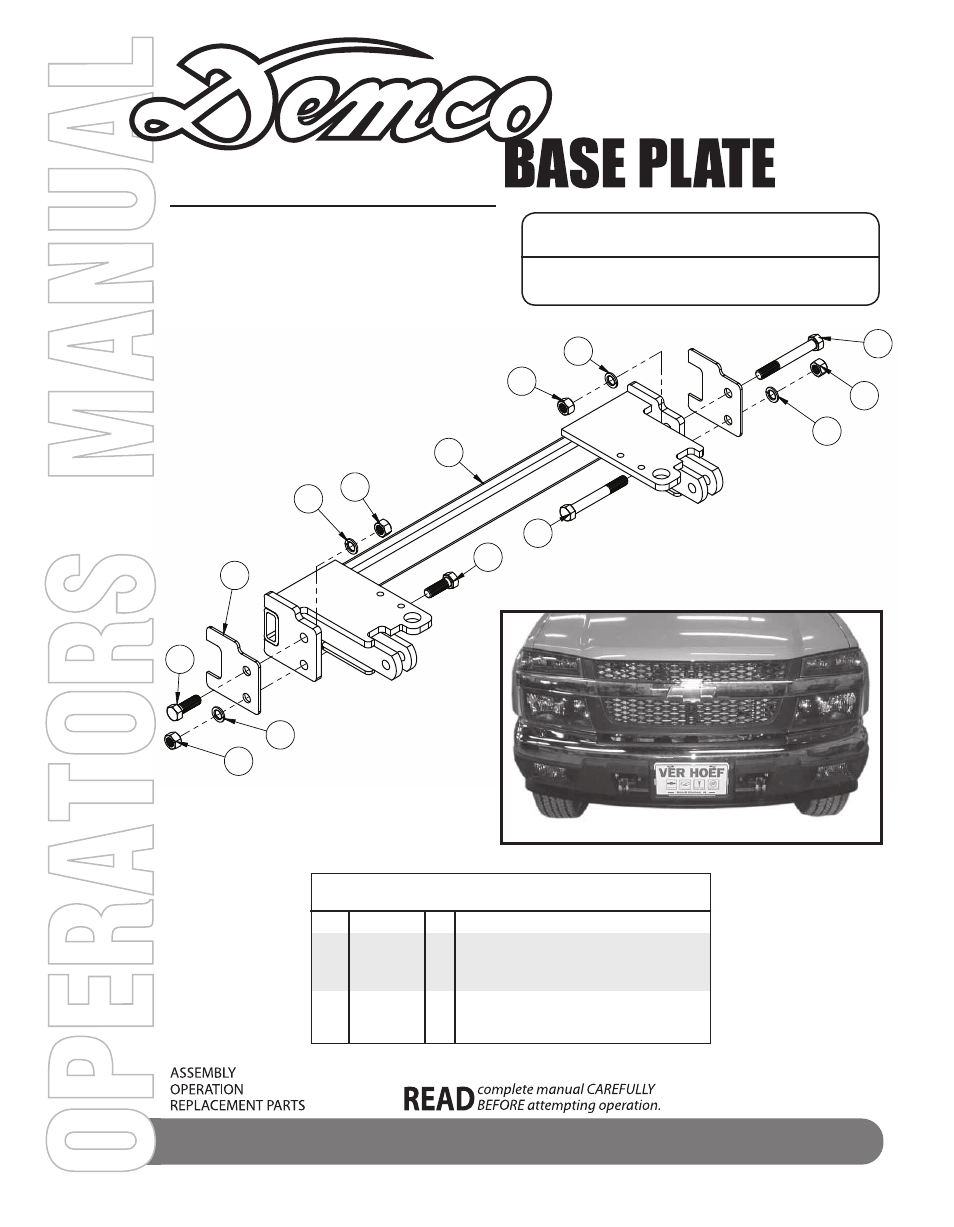

9518171 PARTS LIST
Chevrolet Colorado
GMC Canyon
REF.
PART
NO. NO.
QTY.
DESCRIPTION
1.
07288
4
12mm Spring lock washer
2.
07289
4
12mm-1.75 Hex nut
3.
11833
4
12mm-1.75 x 40mm Gr. 8.8
4.
11834
4
12mm-1.75 x 100mm Gr. 8.8
5.
11843-35
2
Shim
6.
13122-35 1 Baseplate
Crossmember
7. 12329 1 Loctite(not shown)
Please order replacement parts by PART NO. and DESCRIPTION.
4WD Pin height: 20-1/4” Centers: 22”
2WD Pin height: 17” Centers: 22”
Use this bolt
confi guration
when no drilling
is needed
Use this bolt
confi guration when
drilling is needed
BOLT TORQUE SPECIFICATIONS
Size Grade Torque
5/16” 5 20
ft/lbs.
3/8” 5
35
ft/lbs.
7/16” 5 56
ft/lbs.
1/2” 5
85
ft/lbs.
Size Torque
8mm 22
ft/lbs.
10mm 42
ft/lbs.
12mm 70
ft/lbs.
14mm 95
ft/lbs.
METRIC BOLTS:
STANDARD BOLTS:
