Profax HD250 AMP MIG - Manual (Page 3)

® ®
4
6
8
7
12
14
21
20 16
17
22
18
19
23
11
10
16
1
2
2b
2a
3
3a
15
15
13
24
25
23a
23a
28
27
10
27
29
32
30 31 31a
11a
12a
26
13a
5
9
9A
NO. PROFAX DESCRIPTION
1. 27S50 H.D. nozzle 1/2” (copper)
27S62 H.D. nozzle 5/8” (copper) (standard)
27S75 H.D. nozzle 3/4” (copper)
27T38 Tapered nozzle 3/8” (brass)(Use 17SLT series tip)
27T50 Nozzle 1/2” bottle (copper)
27K50 M.D. nozzle 1/2” (copper)
2. 17ST See Chart
2a. 16ST See Chart
2b. 17SLT See Chart
3. 17S See Chart (standard)
3a. 16S See Chart
4. 57HD Gas diffuser
5. 44C Set screw for gas diffuser/conduit
6. 240 Retaining ring
7. 260 O-ring
8. 17SW H.D. shock washer
9. 63-30HDJ Jacketed gooseneck 30°
63-45HDJ Jacketed gooseneck 45° (standard)
63-60HDJ Jacketed gooseneck 60°
63-180HDJ Jacketed gooseneck 180°
9a. TF-3HD H.D. flexible barrel
10. 62N Nipple
11. 112 Separator
11a. 114 Separator
12. 1-MBP-10 18 ball point screws
12a. A-532-24 9/16” ball point screws
13. 102 Cable connector block assembly
13a. 104 Cable connector block assembly
14. 154HD Hanger
15. 82HD Heavy duty handle w/screws
16. 122FM Binder screws for handle
17. 132-12 Clamp - handle
18. AL-300-25 7/32” hex wrench
19. 44-25 5/64” hex wrench
20. 92C Switch contacts w/screws
NO. PROFAX DESCRIPTION
21. 92 Trigger switch assembly
22. 142-6S Spring strain relief for handle
23. 250-10 10’ replacement cable assembly
250-12 12’ replacement cable assembly
250-15 15’ replacement cable assembly
250-20 20’ replacement cable assembly
250-25 25’ replacement cable assembly
250K Cable, bulk (per foot)
250CK Cloth wrapped cable, bulk (per foot) for guns longer than 15’
23a 244 Terminal
24. R185-S spring
25. 132-12 Clamp - connector block
26. 194 Connector tab assembly
27. R185-H Housing
28. R185-SC Screws for housing (4)
29. R172-UA Standard connector plug w/62N
R172-UAG Connector plug w/gas hole w/62N
30. 44C Set screw for conduit 8-32
® 31. R174-C Connector, Century
® ® R174-E Connector, Esab (L-Tec )
® R174-H Connector, Hobart
® R174-L Connector, Lincoln
® R174-M Connector, Miller
R174-T Connector, standard
31a 224 O-ring
32. 42-23-15 15’ wire conduit assembly .023
42-3035-15 15’ wire conduit assembly .030-.035
42-4045-15 15’ wire conduit assembly .040-.045
42-116-15 15’ wire conduit assembly .052 - 1/16”
42-3035-25 25’ wire conduit assembly .030-.035
42-4045-25 25’ wire conduit assembly .040-.045
42-116-25 25’ wire conduit assembly .052 - 1/16”
42N-3545-15 15’ teflon conduit assembly (alumnium) .035-.045

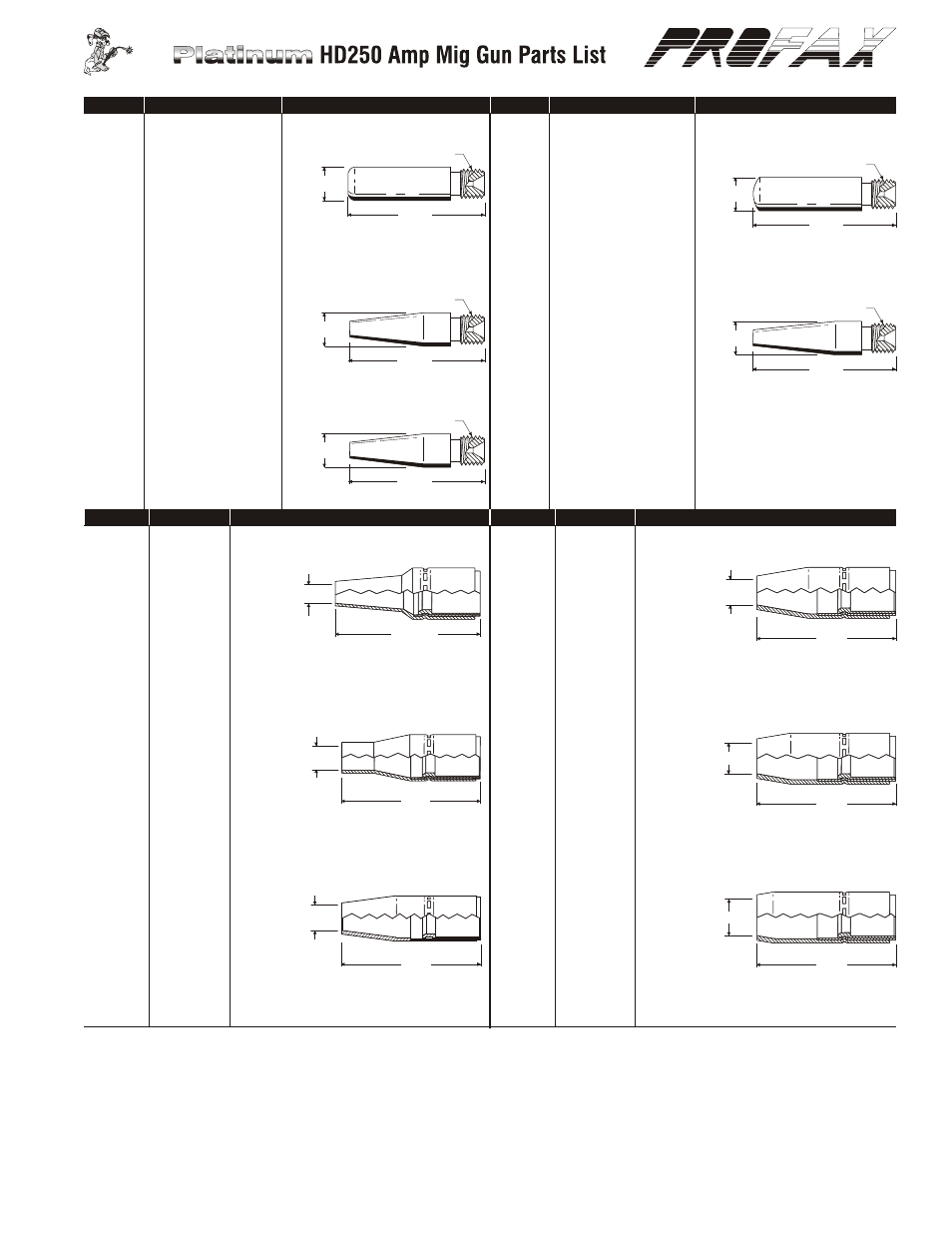

PROFAX DESCRIPTION PROFAX DESCRIPTION
16S-35 Contact tip .035 .044
16S-40 Contact tip .040 .049
16S-45 Contact tip .045 .054
16S-52 Contact tip .052 .064
1-1/2”
M8 - 1.25 Thd.
3/8”
PROFAX DESCRIPTION TIP I.D.
16ST-35 Contact tip .035 .044
16ST-40 Contact tip .040 .049
16ST-45 Contact tip .045 .054
16ST-52 Contact tip .052 .064
1-1/2”
M8 - 1.25 Thd.
3/8”
17S-35 Contact tip .035 .044
17S-40 Contact tip .040 .049
17S-45 Contact tip .045 .054
17AS-364 Contact tip 3/64” aluminum .060
17S-52
Contact tip .052 .064
17ST-35 Contact tip .035 .044
17ST-40 Contact tip .040 .049
17ST-45 Contact tip .045 .054
17ST-52 Contact tip .052 .064
1.350
M8 - 1.25 Thd.
3/8”
1.350
M8 - 1.25 Thd.
3/8”
2
3
2A
3A
PROFAX DESCRIPTION TIP I.D.
Recessed
*Standard tip shipped with gun.
Recessed
Flush
Flush
27S75 H.D. Nozzle 3/4”
27S62 H.D. Nozzle 5/8”
27S50 H.D. Nozzle 1/2”
27K50 M.D. Nozzle 1/2”
2-7/8”
2-7/8”
2-7/8”
5/8” I.D.
1/2” I.D.
3/4” I.D.
27T38 Nozzle 3/8”
27T50 Nozzle 1/2”
2-7/8”
2-13/16”
3/8” I.D.
1/2” I.D.
2-7/8”
1/2” I.D.
17SLT-35 Contact tip .035 .044
17SLT-40 Contact tip .040 .049
17SLT-45 Contact tip .045 .054
17SLT-52 Contact tip .052 .064
1.350
M8 - 1.25 Thd.
3/8”
2B
Recessed
(Use with 27T38 nozzle)
