Profax MHC-14 - Manual (Page 4)

®
®
3

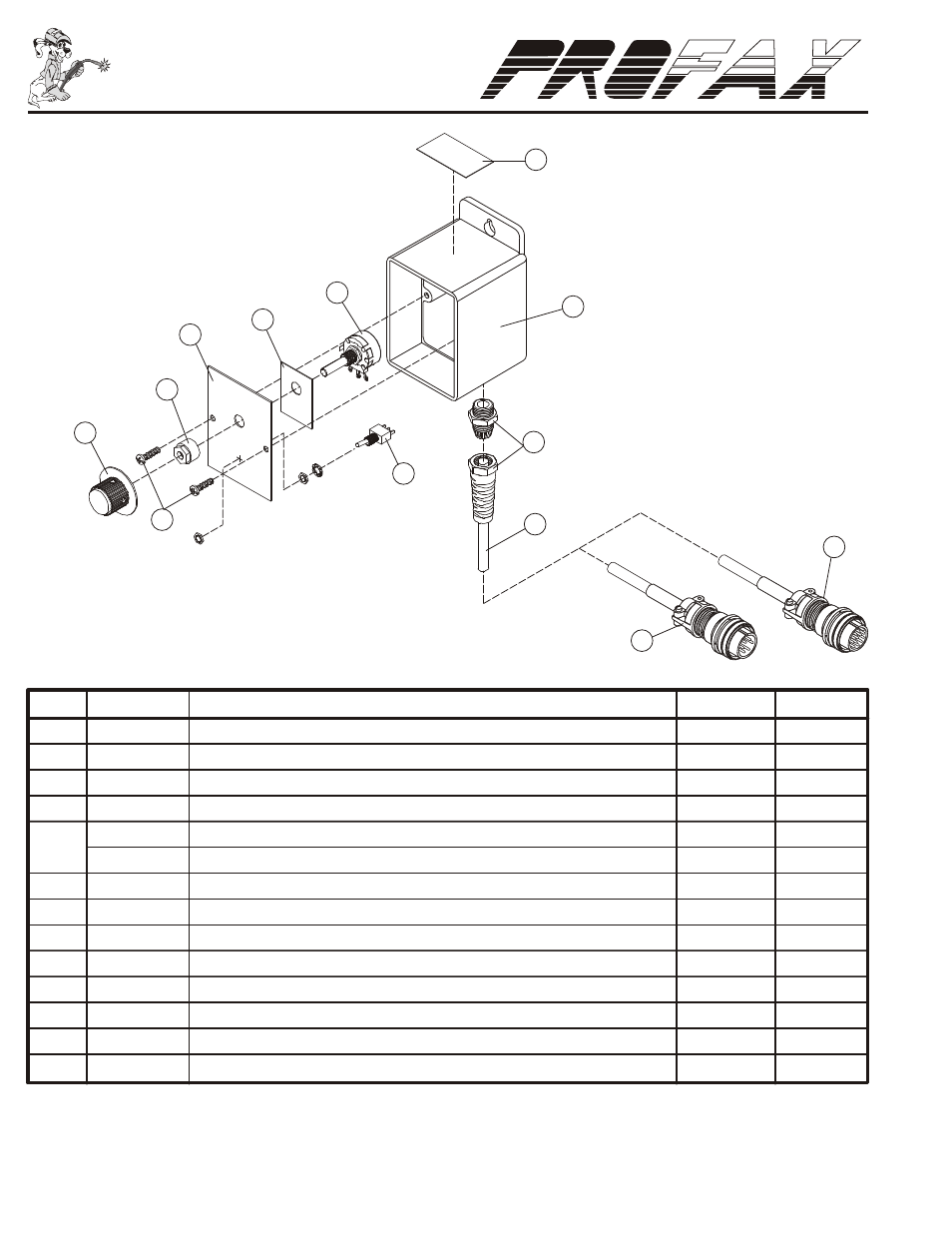

ISOMETRIC EXPLODED PARTS VIEW
& REPLACEMENT PARTS LIST
AVAILABLE THROUGH YOUR
WELDING SUPPLY DISTRIBUTOR
ITEM PART NO. DESCRIPTION MHC-14 MHC-23
1 9813 Potentiometer - 1K - 1T - 2W 1 1
2 9327 Tension Nut 1 1
3 9029 Potentiometer Insulator 1 1
4 9812 Base 1 1
5 9825 Dial Plate 1
9826 Dial Plate 1
6 9814 Knob 1 1
7 9816 Contactor Switch 1 1
8 R185SC Screw 2 2
9 9815 Strain Relief 1 1
10 9820 Cord - Size 18/5 (order by ft.) 1 1
11 9830 Label - CAUTION! 1 2
12 PX039273 Plug - 5 Pin 1
13 PX136961 Plug - 14 Pin 1
1
3
5
2
8
6
9
4
11
10
12
13
7
