PROFESSIONAL AUDIO & SOUND

®

PAGE 14

Specifications are subject to change without notice

T3115/3130/3160BGM

INTEGRATED AMPLIFIERS

INSTALLATION AND WIRING

MUSIC ON HOLD - ZONE 2 FUNCTIONS

3115 MOH Rear

CLASS 2 WIRING ACCEPTABLE

SER. NO.

COM

70V

MUTE

GROUND

LINE FUSE

1.6A 250 V

CAUTION; TO REDUCE THE RISK OF FIRE OR SHOCK DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT
REMOVE COVER. THERE ARE NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION: TO REDUCE THE RISK OF FIRE,
REPLACE ONLY WITH SAMETYPE OF
FUSE.

ATTENTION: AFIN DE
REDUIR LE RISQUE
D©INCENDIE, REMPLACER
SEUL PAR UN FUSIBLE DE
MEME TYPE.

MOH OUTPUT

LEVEL

AUX

47K ohm 200 Mv

IN PARALLEL

ATTENTION: POUR REDUIRLES RISQUES D© INCENDIE OU
DE CHOC ELECTRIQUE, NE PAS EXPOSER A LA PLUIE OU
L©HUMIDITE, NE PAS ENLEVER LE COUVERCLE. AUCUN
REGLAGE A L©INTERIEUR. POUR REPARATION
CONSULTERUNE PERSONNE QUALIFIEE

117V 60 Hz

500 W MAX.

UNSWITCHED

A

MPLIFIER

POWER RATING
SUPPLY VOLTAGE

POWER CONSUMPTION

15 W RMS

117V 60 HZ

570 VA

T3115BGM

8 OHM

1 WATT

8

25V

600 ohm

1 Volt

AUX

ATTENUATOR

L

R

TEL OUTPUT

LEVEL

600 OHM

100 MV

10K OHM

1 V

250 OHM

1 MV

TEL

MIC

PROGRAM

G

HOT

COM

G

HOT

COM

G

HOT

COM

UNMUTE G

BALANCED

BALANCED

BALANCED

MOH OUTPUT

4

1

2

3

5

PROG

AUX

MOH/ZONE 2 SOURCE SELECTOR

INTERNAL MOH

AND ZONE 2

SOURCE JUMPER

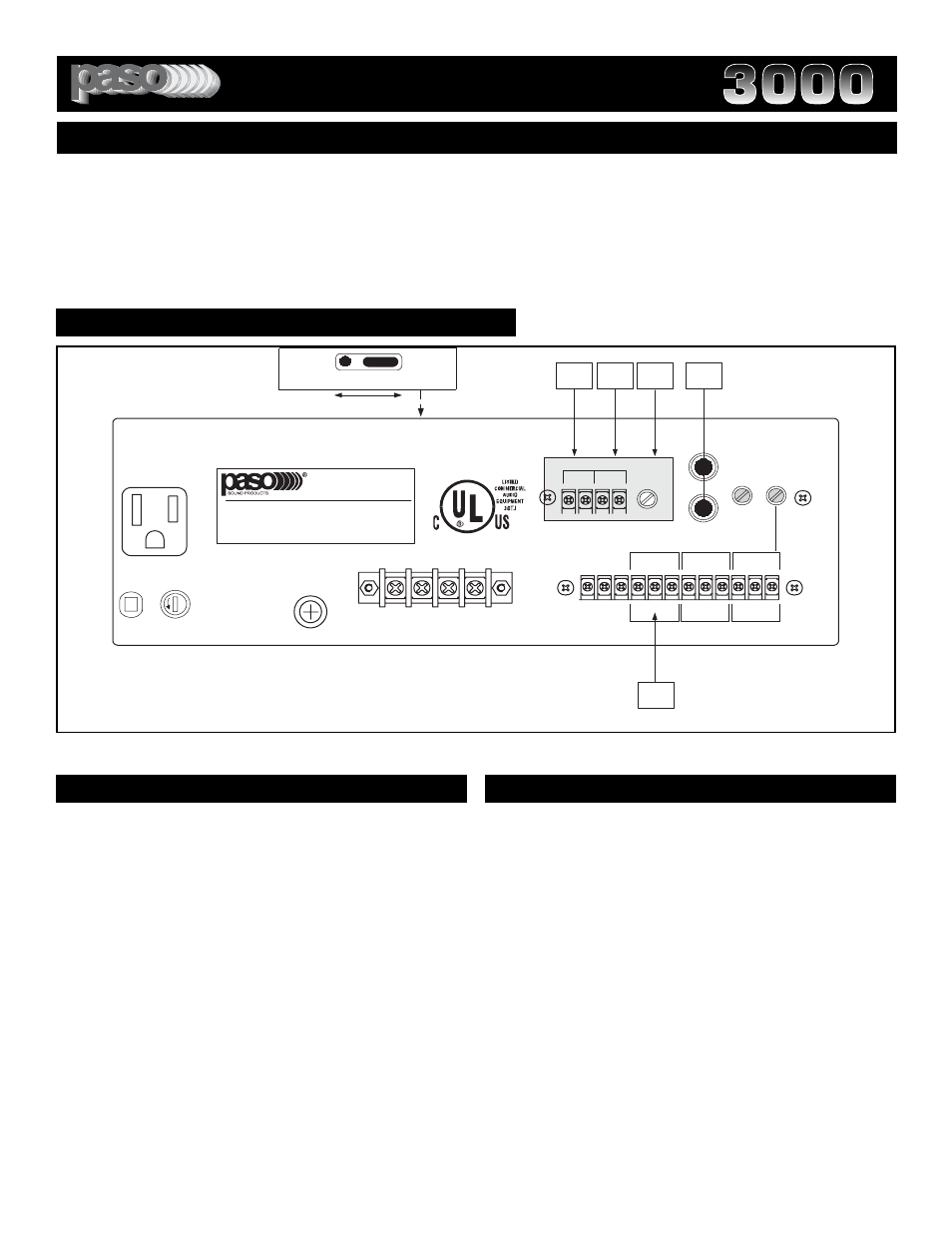

Fig. 14 - Rear Panel View - MOH and ZONE 2 Output and Control

MOH/SECOND ZONE AMPLIFIER

THE FOLLOWING INSTRUCTIONS REQUIRE THE REMOVAL OF THE AMPLIFIER PROTECTIVE COVER AND ARE
PROVIDED FOR USE BY QUALIFIED PERSONNEL ONLY.

TO AVOID THE RISK OF ELECTRICAL SHOCK DO NOT PERFORM ANY INSTALLATION OR SERVICING UNLESS YOU
ARE QUALIFIED TO DO SO. REFER INSTALLATION OR SERVICING TO QUALIFIED PERSONNEL.

CAUTION !

REMOVAL OF THE AMPLIFIER COVER PRESENTS AN ELECTRICAL SHOCK HAZARD

ALWAYS REMOVE THE POWER CORD FROM THE AC WALL OUTLET

MOH AMPLIFIER FUNCTIONS

MOH AMPLIFIER

a) The MOH Amplifier can only receive programs from the AUX
Input or the PROGRAM Input.
b) Selection of the input source is by internal Jumper.
c) The two independent MOH/SECOND ZONE Outputs may be
used simultaneously.
d) The MOH 600 ohm Output is Transformer Balanced.
e) The Rear Panel MOH Amplifier Level Control operates both
the MOH and SECOND ZONE Outputs simultaneously.

MOH/SECOND ZONE OPERATION ISSUES
1)
Paging from the Microphone Input or the Telephone Input does
not effect the MOH Amplifier.
2) Position of the AUX and the PROGRAM Inputs Level Control
does not affect the MOH Amplifier Output Level.
3) Muting of the AUX and PROGRAM Channels during Paging
does not effect the Output of the MOH Amplifier.

1 = 600 ohm, 1 Volt Output
2 = 8 ohm, 1 Watt Output
3 = MOH Amplifier Level Control

4 = AUX Input Jacks
5 = PROGRAM Input

MOH/SECOND ZONE AMPLIFIER
The Integrated Amplifier is equipped with an independent 1 Watt
Amplifier that can be utilized as a MUSIC ON HOLD AMPLIFIER
and as a SECOND ZONE AMPLIFIER. The MOH Output provides
a 600 ohm, 1 Volt Transformer Balanced Output. Simultaneously a
Second Zone 8 ohm, 1 Watt Output is also available.

MOH AMPLIFIER INPUT SOURCE
The program source for the Input of the MOH Amplifier can be
selected from either the AUX Input Source or the PROGRAM Input
source. See Access to the MOH Input Source Selector
Instructions.

MESSAGES ON HOLD
By utilizing a Message Repeater connected to the PROGRAM
Input Messages can be channeled to the Music on Hold Output
without effecting the other operations of the Amplifier. For more
information refer to the appropriate section in this Manual.
