- 5 -

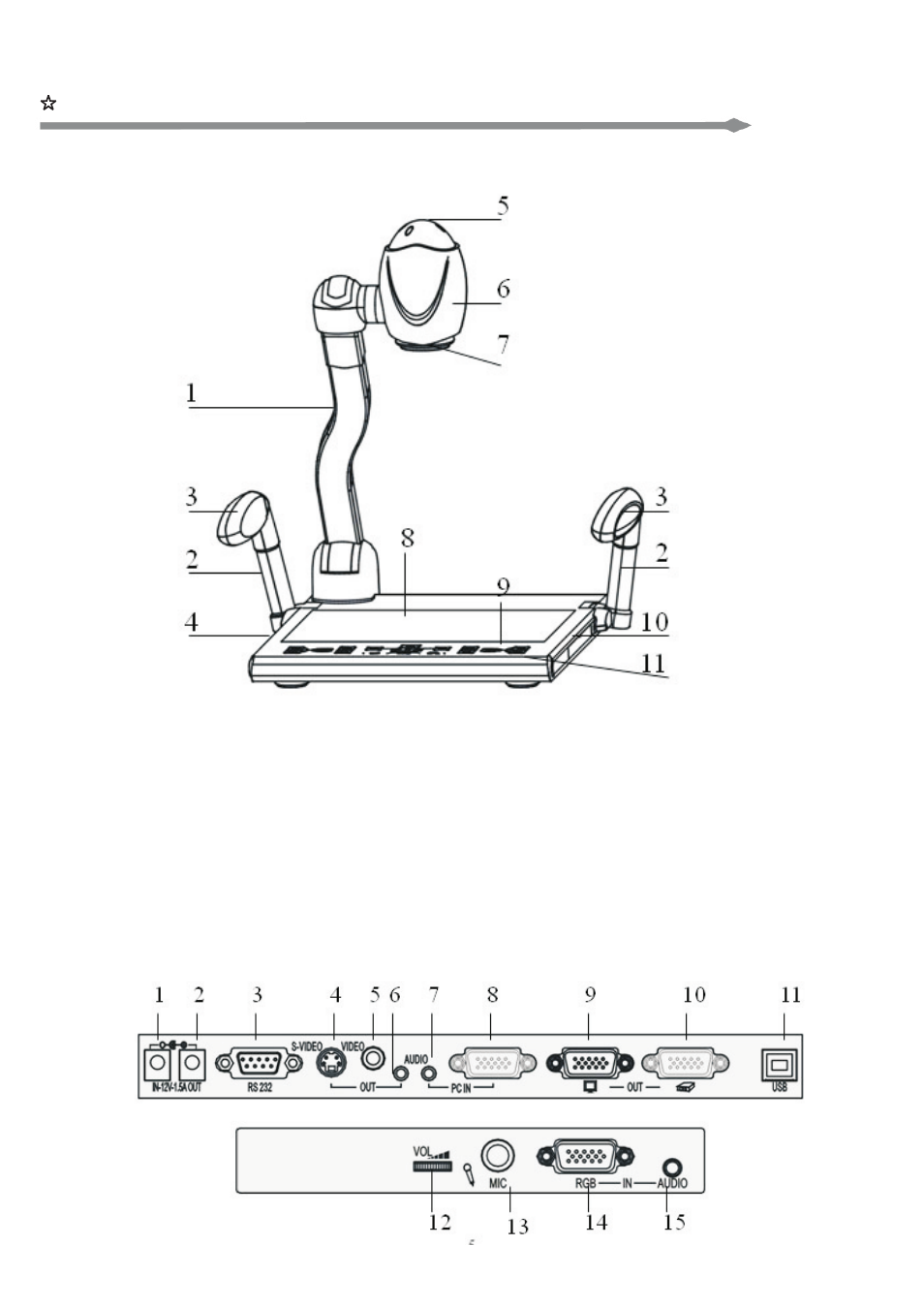

Struction & components :
= Whole Structure :
= back/side connections :
1.Main Pole; 2.Assistant lamp Arms; 3.assistant lamps; 4.drawer
(once Push to rebound, twice push to recover.
Attention: don’t pull it out of the position with heavy strength);
5.Infrared Receiver Window; 6.Camera Outshell; 7.CameraCover;
8.Baselight; 9.Back Connections; 10.Side connections;
11.Control Panel.
