27
Using the Configuration Menu (continued)

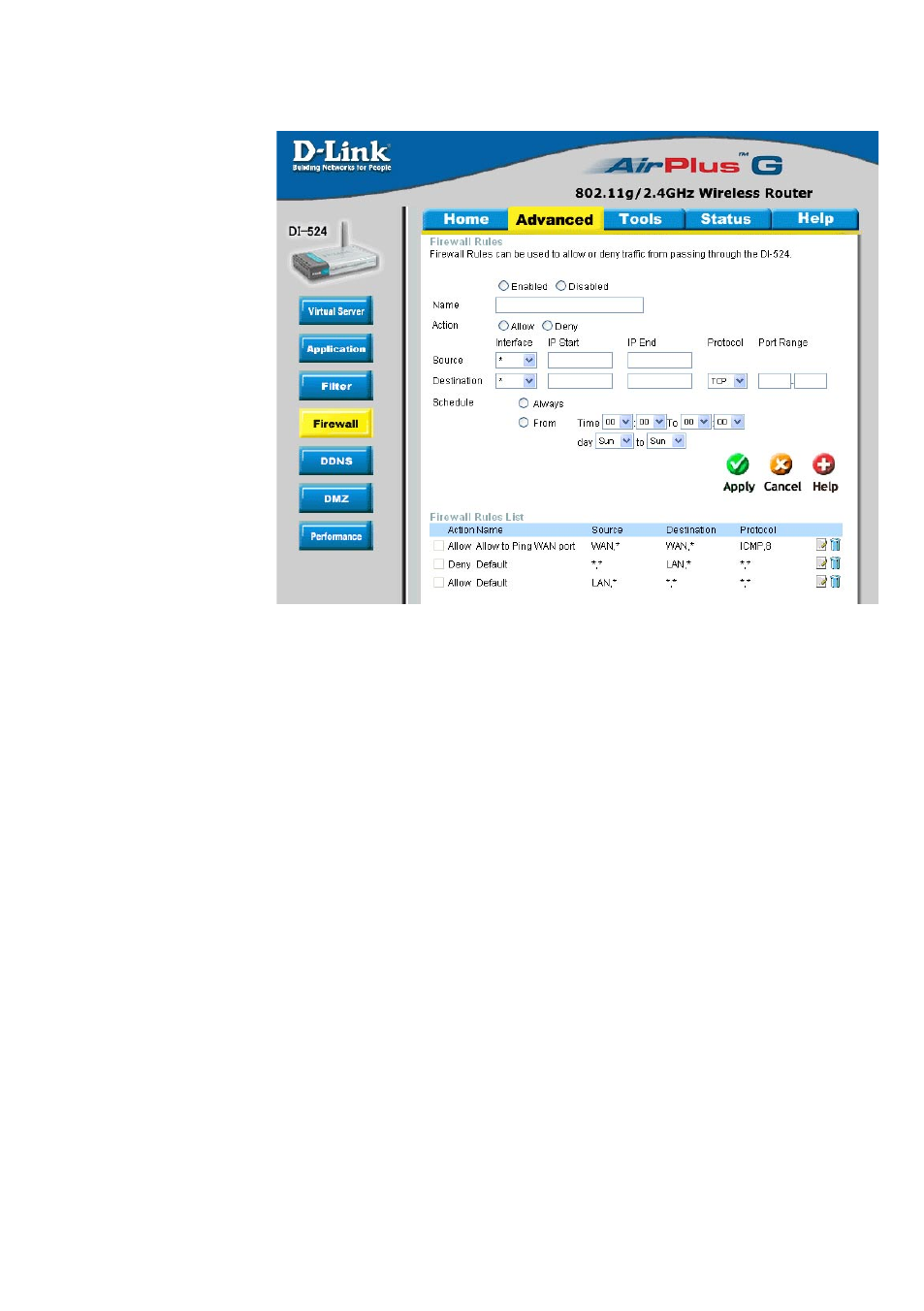

Advanced > Firewall
Firewall Rules is an advanced feature used to deny or allow traffic from passing
through the DI-524. It works in the same way as IP Filters with additional settings. You
can create more detailed access rules for the DI-524. When virtual services are created
and enabled, it will also display in Firewall Rules. Firewall Rules contain all network
firewall rules pertaining to IP (Internet Protocol).
In the Firewall Rules List at the bottom of the screen, the priorities of the rules are from
top (highest priority) to bottom (lowest priority.)
Note:
The DI-524 MAC Address filtering rules have precedence over the Firewall Rules.
Firewall Rules- Enable or disable the Firewall
Name-
Enter the name
Action- Allow or Deny
Source-
Enter the IP Address range
Schedule-
Select Always or enter the Time Range.
Destination-
Enter the IP Address range; the Protocol;
and the Port Range
