FIREPLACE INSTALLATION

Continued

FIREPLACE INSTALLATION

Installing Optional Brick Liner Models BL32D, BL36D(S), BL36DH(S)

Installing Logs, Lava Rock and Glowing Embers

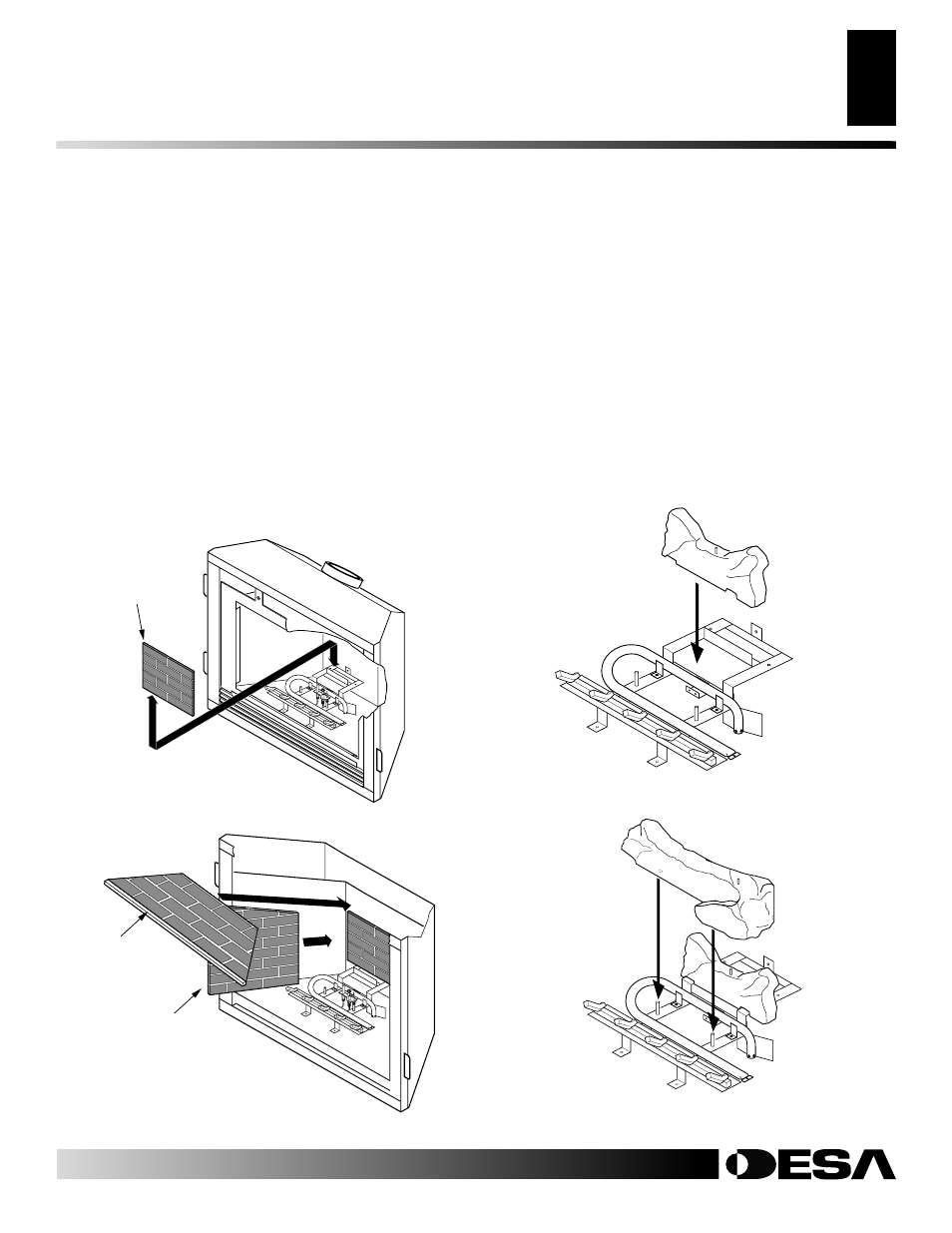

Figure 43 - Installing Rear Brick Panel

Figure 44 - Installing Left Side and Top Brick Panels

Rear Brick Panel

Left Side
Brick Panel

Top Brick Panel
((V)T36 Series
and CTDV36NR
Only)

4.

Remove three screws from deflector shield on the inside top
of firebox. Set shield and screws aside.

5.

Install rear brick panel first. Rest bottom edge of panel on back
edge of grate (see Figure 43).

6.

Install top brick panel (36" Series only) by resting on the top
of the rear panel. Hold the top brick panel in place and install
left side brick panel by sliding it between the grate and the
side of the firebox, securing top panel (see Figure 44).

7.

Install the right brick panel using the same method described

8.

Replace deflector shield using screws removed in step 4.

9.

Follow instructions on page 24 to install logs, lava rock, and
ember material.

10. Close glass door, lock latches on top and bottom of door and

replace screen (see steps 5 and 6 of Removing/Replacing Glass
Door
, page 22).

11. Close top and bottom louvers.

INSTALLING LOGS, LAVA ROCK AND
GLOWING EMBERS

Note: 36" models shown. Logs will vary slightly for 32" models.

Each log is marked with a number. These numbers will help you
identify the log when installing. It is very important to install these
logs exactly as instructed. Do not modify logs. Only use logs
supplied with fireplace.

Open louvers, remove screen, unlock door latches, and open glass
door. See steps 1 and 2 of Removing/Replacing Glass Door, page 22.
Install logs according to instructions for fireplace model numbers.

1.

Place log #1 (rear log) on top of grate. Make sure the notches
in the bottom of the log fit over the grate (see Figure 45).

2.

Rest log #2 (large front log) on the pins on the front part of the grate
(see Figure 46).

1

2

Figure 45 - Installing Log No. 1

Figure 46 - Installing Log No. 2
