FIREPLACE INSTALLATION
Continued
FIREPLACE INSTALLATION
Checking Gas Connections (Cont.)

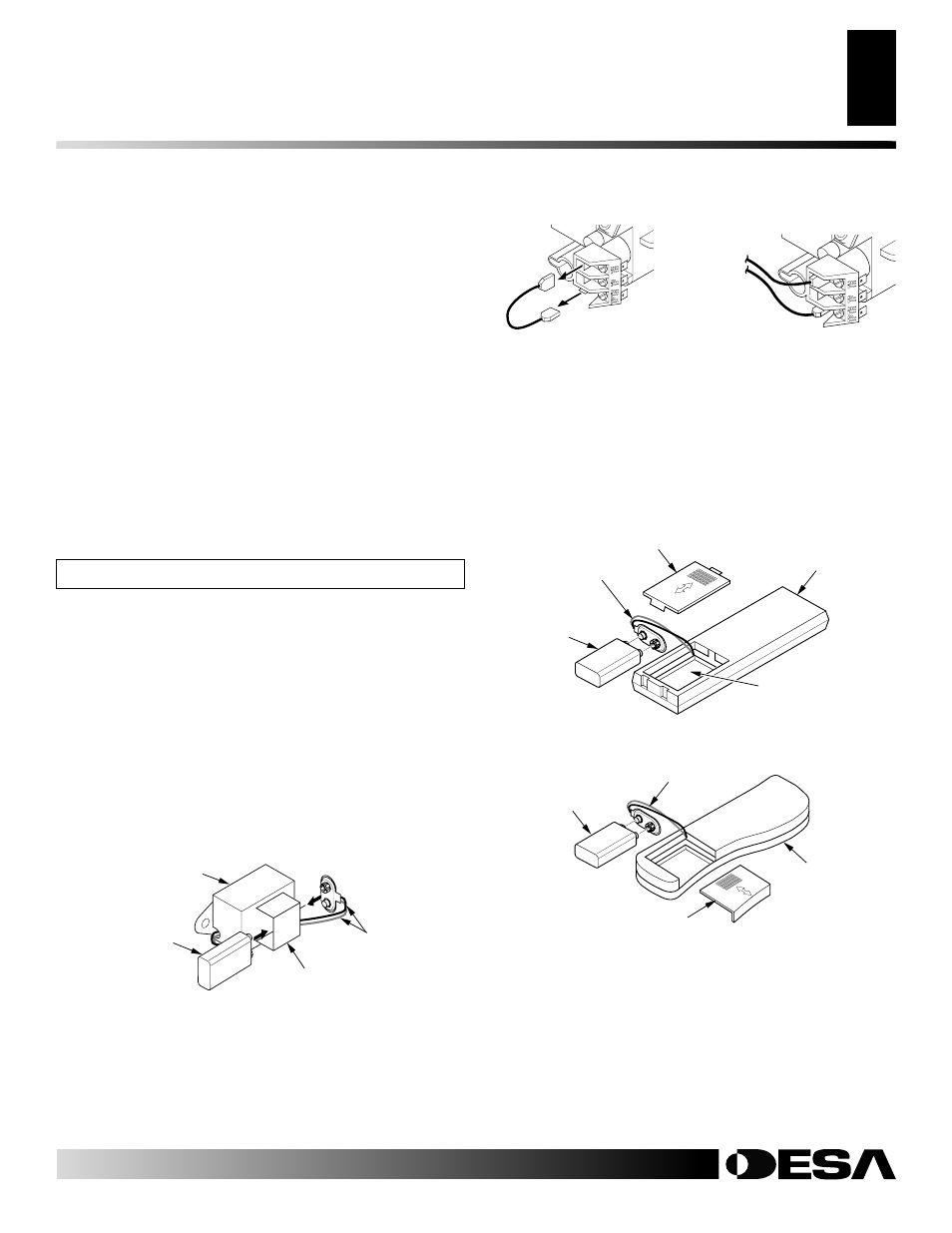

Installing Optional Wireless Hand-Held Remote Control - GHRC and GHRCT(A) Series
Installing Remote Receiver
1. Open bottom louver and locate the switch bracket on the left.
2. Unscrew the switch bracket. Lean bracket forward so you are
able to access the back of the remote receiver.
3. Locate the battery clip mounted on the back of the receiver.
Slide a 9-volt alkaline battery (not included) through the clip
(see Figure 36).
4. Attach the terminal wires to the battery.
5. Remove wire from TH to TPTH on control valve (see Figure 37).
6. Connect wires from receiver to TH and TPTH to control valve
(see Figure 38).
7. Replace the switch bracket.
INSTALLING OPTIONAL WIRELESS HAND-
HELD REMOTE CONTROL - GHRC AND
GHRCT(A) SERIES
NOTICE: Use only alkaline batteries (not included).
Figure 36 - Attaching Alkaline Battery to Receiver
Figure 38 - Control Valve
Terminals
To Optional
Remote
Accessory
Figure 37 - Disconnecting TH to
TPTH Wire
9-Volt
Alkaline
Battery
Receiver
Terminal
Wires
Battery Clip
Pressure Testing Fireplace Gas Connections
1. Open equipment shutoff valve (see Figure 33, page 20).
2. Open propane/LP supply tank valve for propane/LP fireplace
or main gas valve located on or near gas meter for natural gas
fireplace.
3. Make sure control knob of fireplace is in the OFF position.
4. Check all joints from equipment shutoff valve to gas valve (see
Figure 34 for propane/LP or Figure 35 for natural gas, page 20).
Apply noncorrosive leak detection fluid to all joints. Bubbles
forming show a leak. Correct all leaks at once.
5. Light fireplace (see Operating Fireplace, pages 25 through
27). Check all other internal joints for leaks.
6. Turn off fireplace (see To Turn Off Gas to Appliance, page 25).
Installing 9-Volt Alkaline Battery in Hand-Held
Remote Control Unit
1. Remove battery cover on back of remote control unit.
2. Attach terminal wires to a 9-volt alkaline battery (not included).
Place battery into the battery housing.
3. Replace battery cover onto remote control unit.
Figure 39 - Installing Alkaline Battery in Hand-Held Remote
Control Unit ([C]GHRC)
Battery Cover
9-Volt
Alkaline
Battery
Terminal
Wires
Remote
Control Unit
Battery
Housing
Figure 40 - Installing Battery in Hand-Held Remote Control Unit
([C]GHRCT[A] Series)
Remote
Control
Unit
Battery
Cover
9-Volt
Battery
Terminal
Wires
