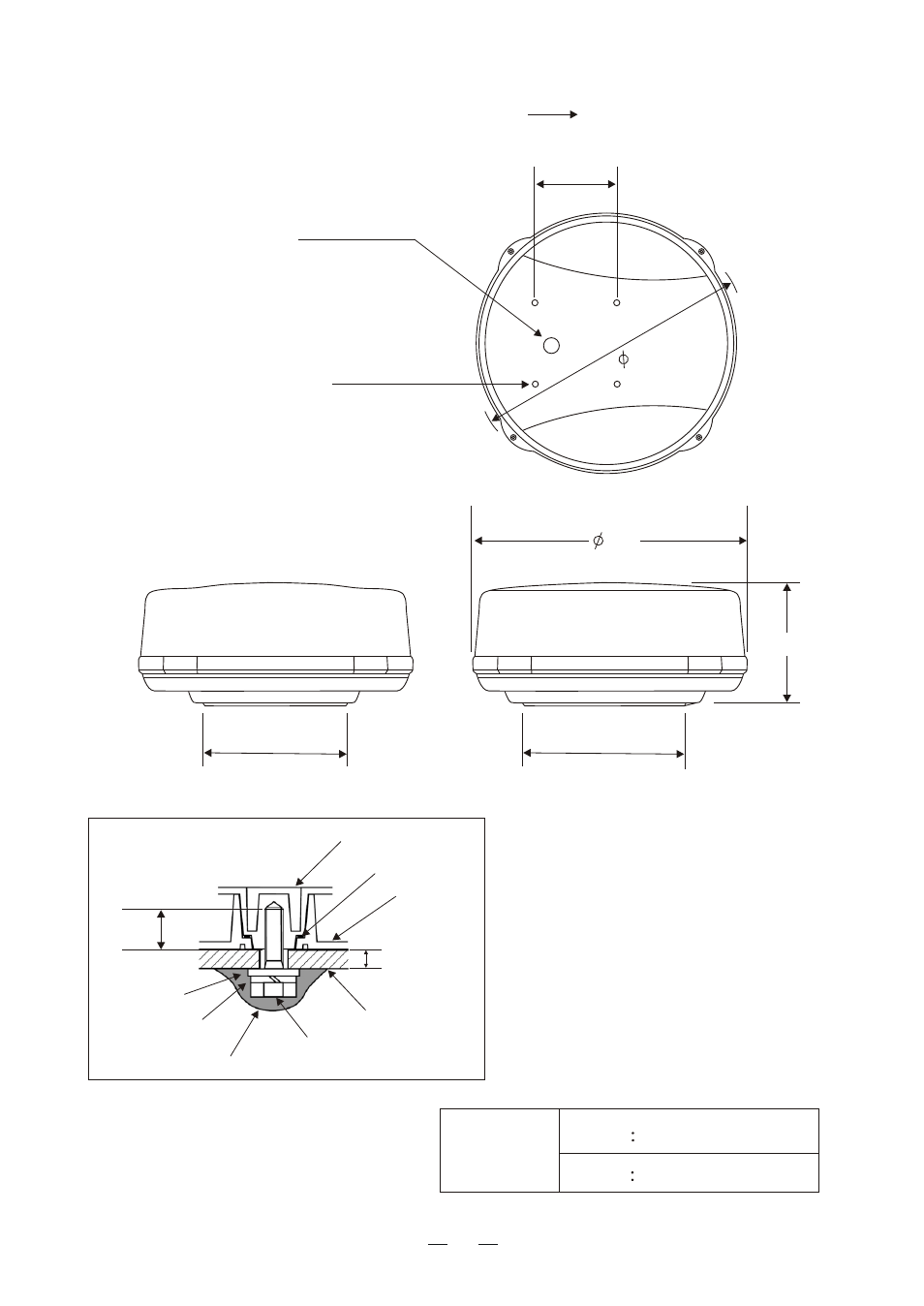

MODE KRA-1003
NAME SCANNER UNIT
ONWA ONWA
604
270
420 400
160
Front
4-M10
64
0
KR-1538
CABLE ENTRY
25mm
Effective
thread length
Flat
washer
Spring
washer
Apply silicone sealant
Hex bolt
Platform
5 -10 mm
Antenna base plate
Packing
Radome
KR-1238
