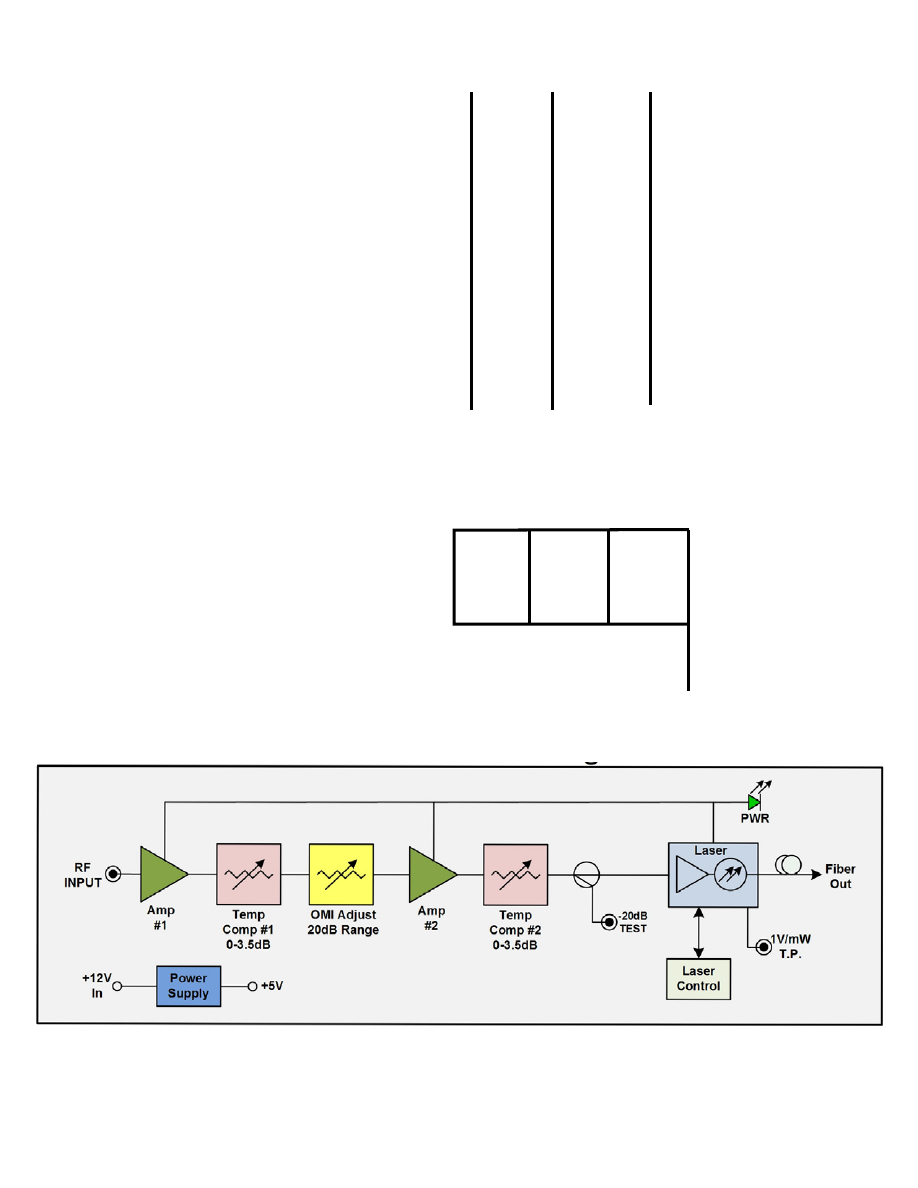

Figure 4 - OTOT-300C Block Diagram
Min Typ Max Units
Frequency Range 5 300 MHz
Pass Band Flatness -1 +1 dB
RF Test Point (35MHz Load) +10 dBmV/Ch
RF Test Point Flatness -1 +1 dB
dBmV/Hz
DFB & CWDM NPR Range 15 18 dB
Impedance (F Connector) 75 Ohms
RF Adjustment Range 20 dB
Return Loss 15 dB
DFB 41dB NPR Threshold * -60
* RF Adjustment is centered.
RF Output & Performance Characteristics
Min Typ Max Units
Weight 12 oz.
340 g
Dimensions (H x W x L) 3.05 x 6.96 x 0.975 in.
7.75 x 17.7 x 2.48 cm
Physical Characteristics
