3.1 Configuration Examples
Typical configurations for DA-3GHD-2x4:

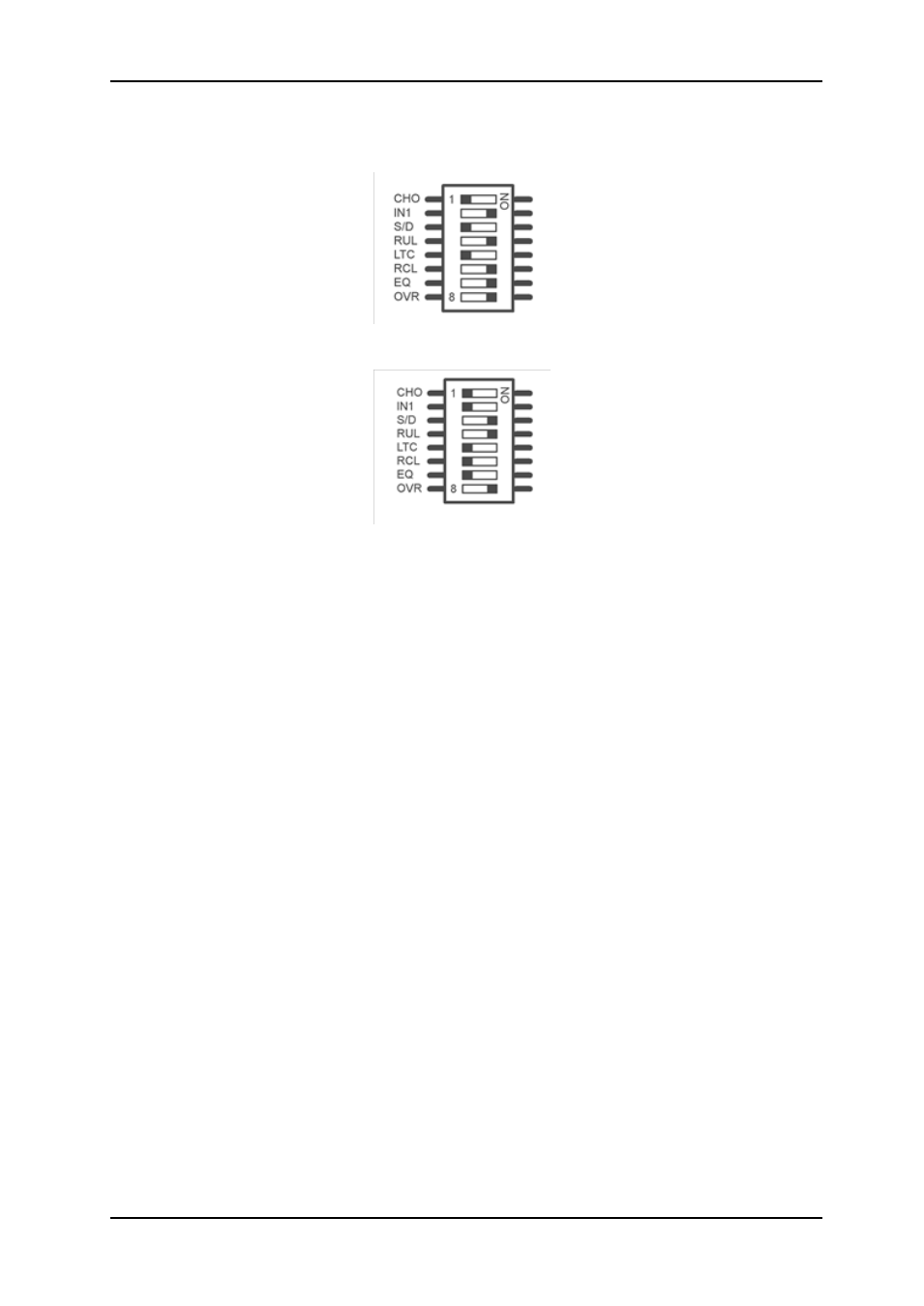

Figure 3: Distribution mode, Input 1 priority, Input 1 to all outputs, reclocker and equalizer on
Figure 4: Distribution mode, Input 2 priority, Input 1 to 4 outputs, Input 2 to 4 outputs,
transparent mode without equalization and reclocking.
