DA-3GHD-2x4 Rev. C
nevion.com | 7
3 Configuration
The DA-3GHD-2x4 supports a number of different formats. The correct configuration can
either be set with a DIP switch or with the GYDA system controller
. The layout of DA-3GHD-
2x4 is shown in the drawing below with the DIP switch to the upper left position.

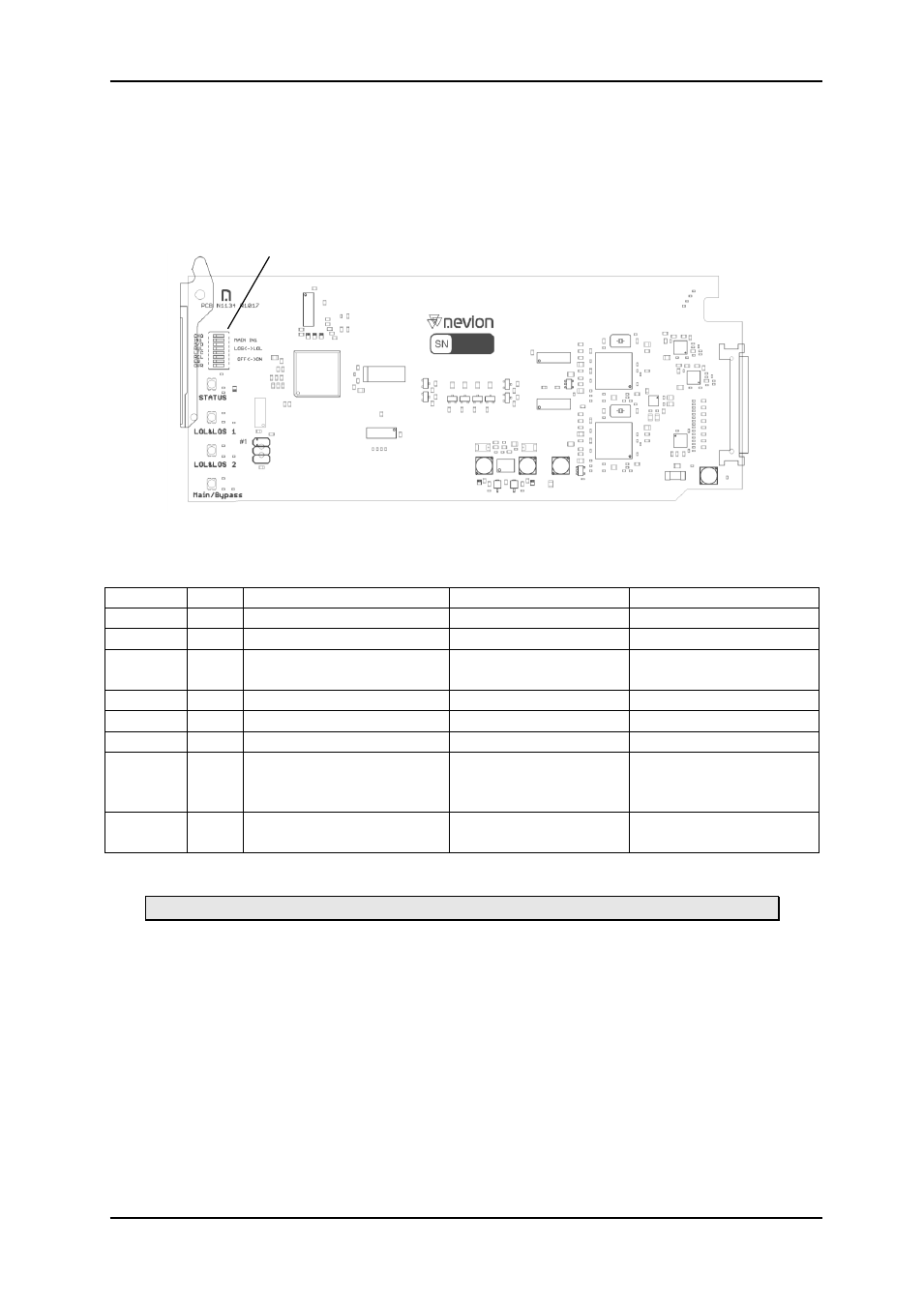

Figure 2: DA-3GHD-2x4 module DIP switches
DIP switch configuration must be set according to the table below:
Switch # Label Function DIP=OFF Function DIP=ON Comment
1 CHO Not used
2 IN1 Input 1 stby, 2 main Input 1 main, 2 stby Select main/standby
3 S/D Single distributed output Dual distributed
output Single or dual
distribution amplifier
4 RUL Not used
5 LTC Not used
6 RCL Reclocker Bypass Reclocker ON Reclocker mode
7 EQ Cable equalizer Bypass
(Loss of signal will not
work on this mode) Cable equalizer ON Equalizer mode
8 OVR Module controlled by
Gyda system controller
Module controlled by
DIP switches Select GYDA config.
mode
Table 2: DA-3GHD DIP switches
All DIP switches are off when pointing towards the release handle.
DIP-switch
