DA-3GHD-2x4 Rev. C
nevion.com | 12
GPI name
(setup1/
setup2)
Function
(setup1/ setup2)
Pin # Mode Direction Electrical
Maximums
for GPI
outputs:
Max current:
100mA
Max voltage:
30V
Max power:
200mW
Status General error status for the
module. Pin 1 Inverted Open
Collector
(open is alarm) Output
Not used Pin 2
Signal
present 1 Good signal routed to
output 1 Pin 3 Inverted Open
Collector
(open is alarm) Output
Signal
present 2 Good signal routed to
output 2 Pin 4 Inverted Open
Collector
(open is alarm) Output
Not used Pin 5
Not used Pin 6
Not used Pin 7
Ground 0 volt pin Pin 8 0V.

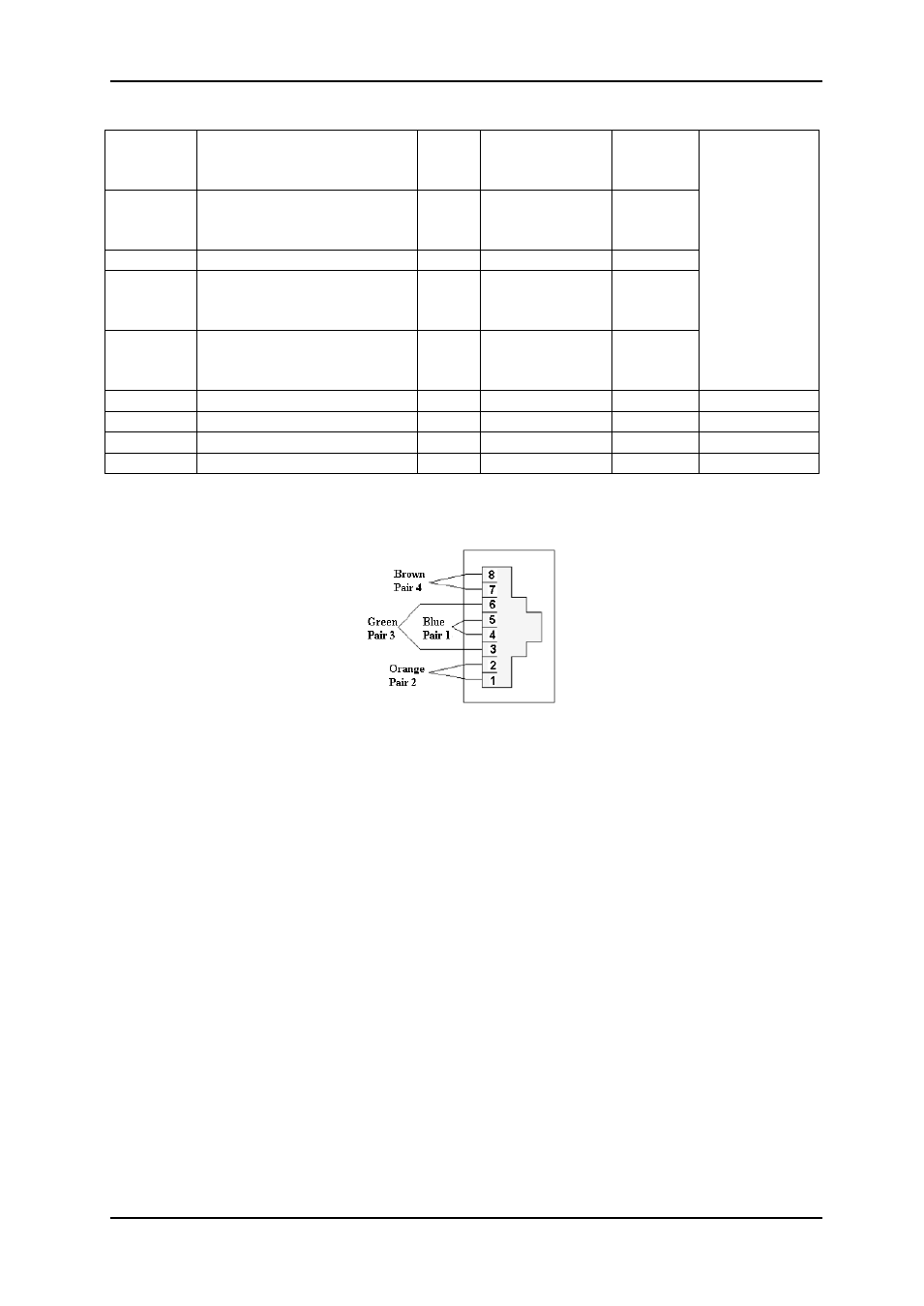

Table 4: Description of GPI interface
Figure 10: GPI Interface
