Operation Section
25

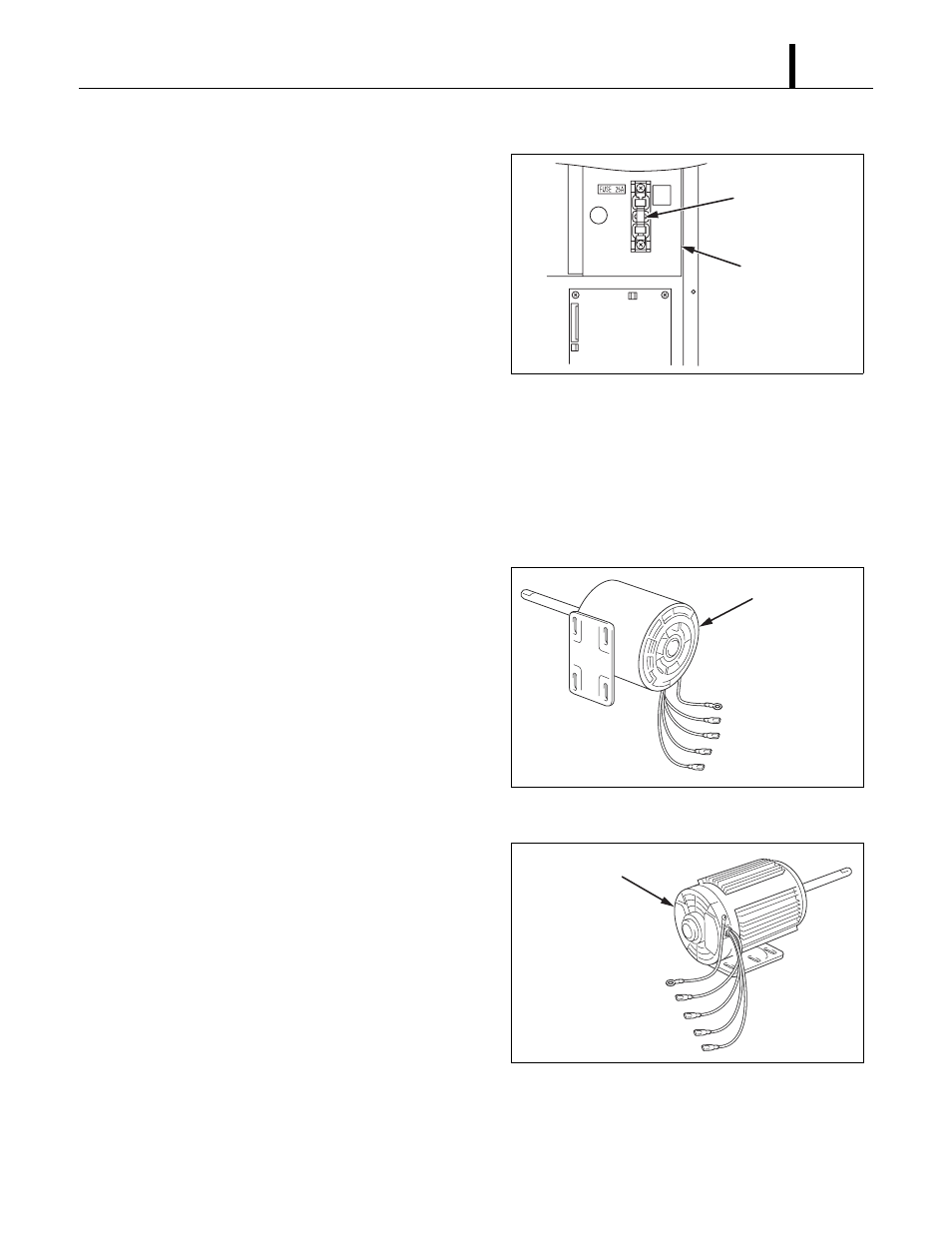

(5) Fuse (For Transformer)
• This fuse provides protection against damage
to the transformer. The fuse is located in the
secondary circuit of the transformer.
• It must be replaced with the exact type of fuse
or an equivalent.
Specifications:
- Time delay type
- Class cc
- Rated volt: 600 V
- Rated amp: 15 A
- UL listed
6.5 Fan Motor
(1) For evaporator
• The fan motor is a single phase, induction type
two-speed motor.
Specifications:
- Rated Voltage: 230 V, 60 Hz
- Rated Output: High-590 W, Low-360 W
(2) For condenser
• The fan motor is a single phase, induction type
two-speed motor.
Specifications:
- Rated Voltage: 230 V, 60 Hz
- Rated Output: High-1195 W, Low-932 W
I001956
Fuse
Control Box
I001774
Evaporator Fan Motor
Ground (Green/Yellow)
J7 Low (Red)
CF22 (Brown/White)
CF21 (White)
J8 High (Black)
I001775
Condenser Fan Motor
Ground (Green/Yellow)
J5 Low (Red)
CF12 (Brown/White)
CF11 (White or Orange)
J6 High (Black)
