Operation Section
10

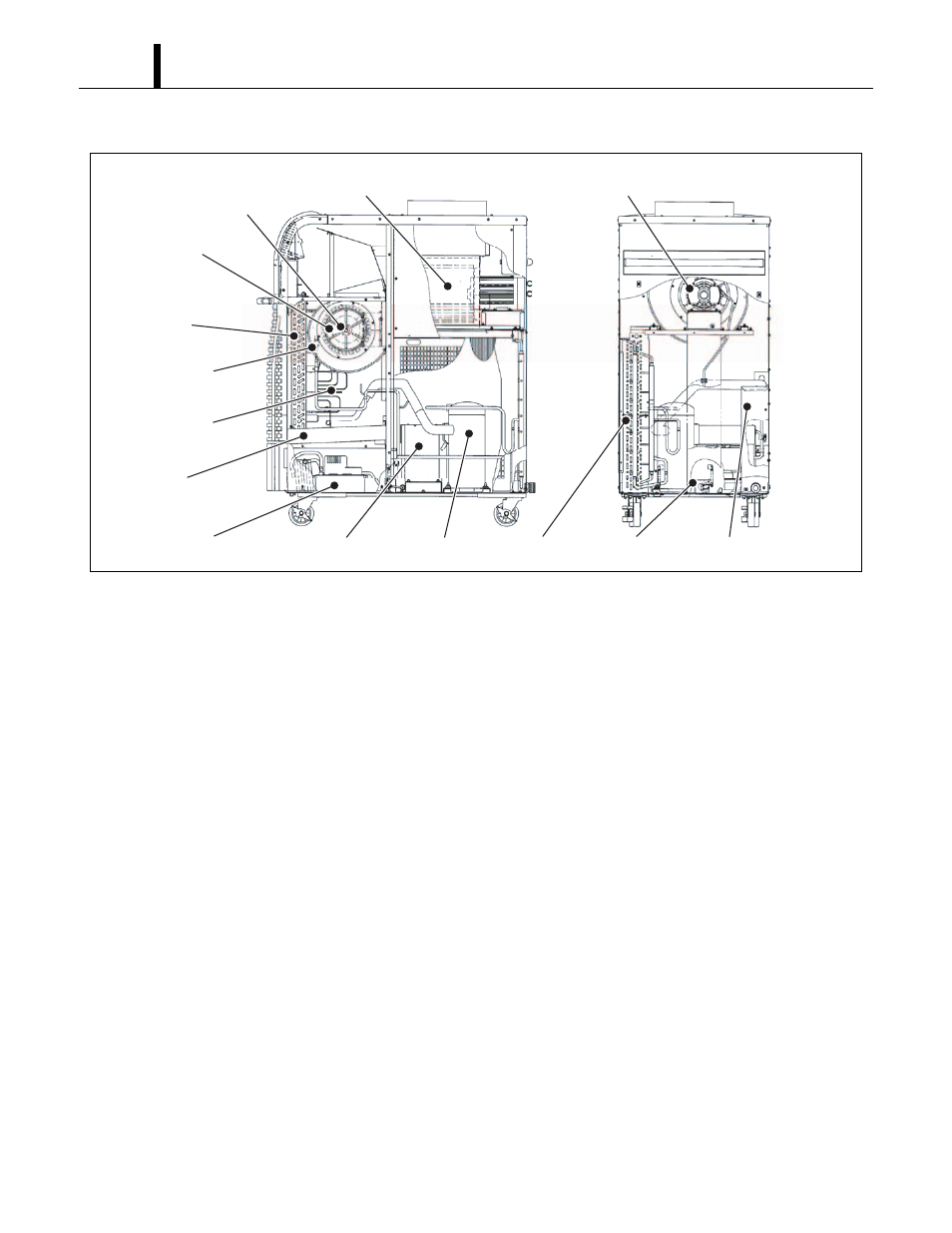

3.3 Internal Structure
3.4 Basic Construction
• The MovinCool Office Pro 63 is compact in construction because the condenser and the
evaporator are enclosed in one unit. The interior is divided into three sections. The upper front
face is equipped with the evaporator, and the lower front face contains the condensate pump
and optional drain tanks. The rear section contains the condenser, the compressor, the
transformer and the control box.
I001950
Evaporator
Fan
(Evaporator)
Fan
(Condenser)
Fan Motor
(Condenser)
Fan Motor
(Evaporator)
(Behind Fan)
Control Box
Drain Switch
Compressor
Transformer
Condensate Pump
Drain Pan
Capillary Tube
High Pressure
Switch
Condenser
