Page 21
15
HTS 1700
SWITCHED
DIMMER
RaCK MOUnTInG InSTRUCTIOnS
Optional front rack mount ears are available for secure installation in AV rack systems . You will need a hex wrench (not
included) to tighten the included bolts .
front ear Installation

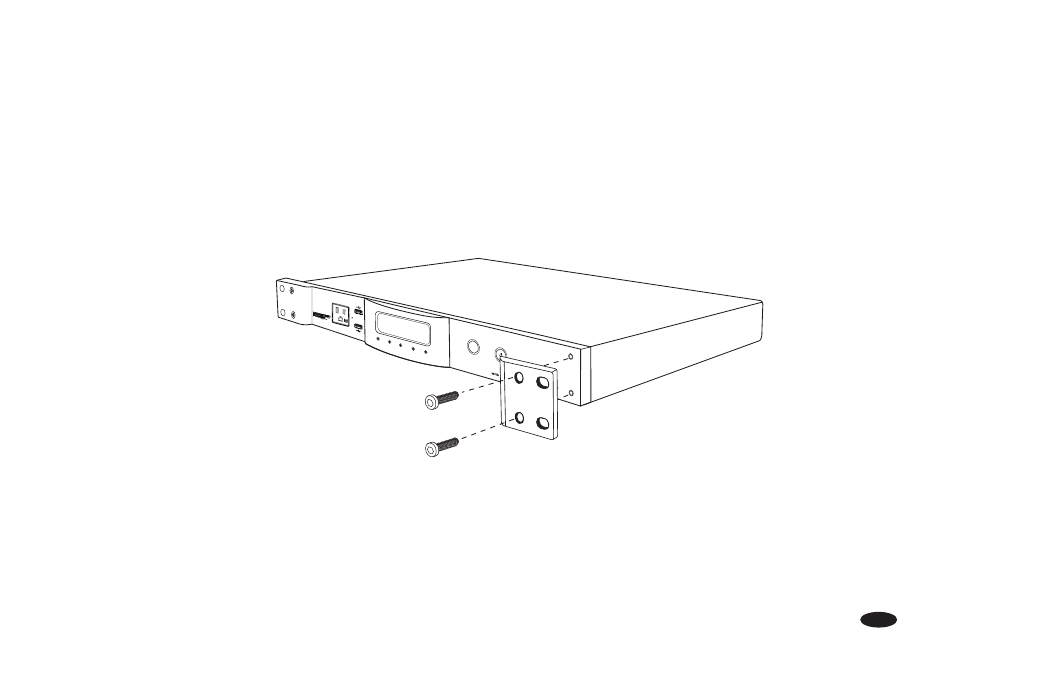

Make sure the ears are correctly oriented as shown in the diagram at right . The curved edge should be oriented closer
to the center of the HTS
1700 .
