8
CAUTION: Before doing any work on the string trimmer, always switch off
the engine and pull the spark plug connector off the spark plug.
Always wear protective gloves.
CAUTION: Start the string trimmer only after having assembled it completely.

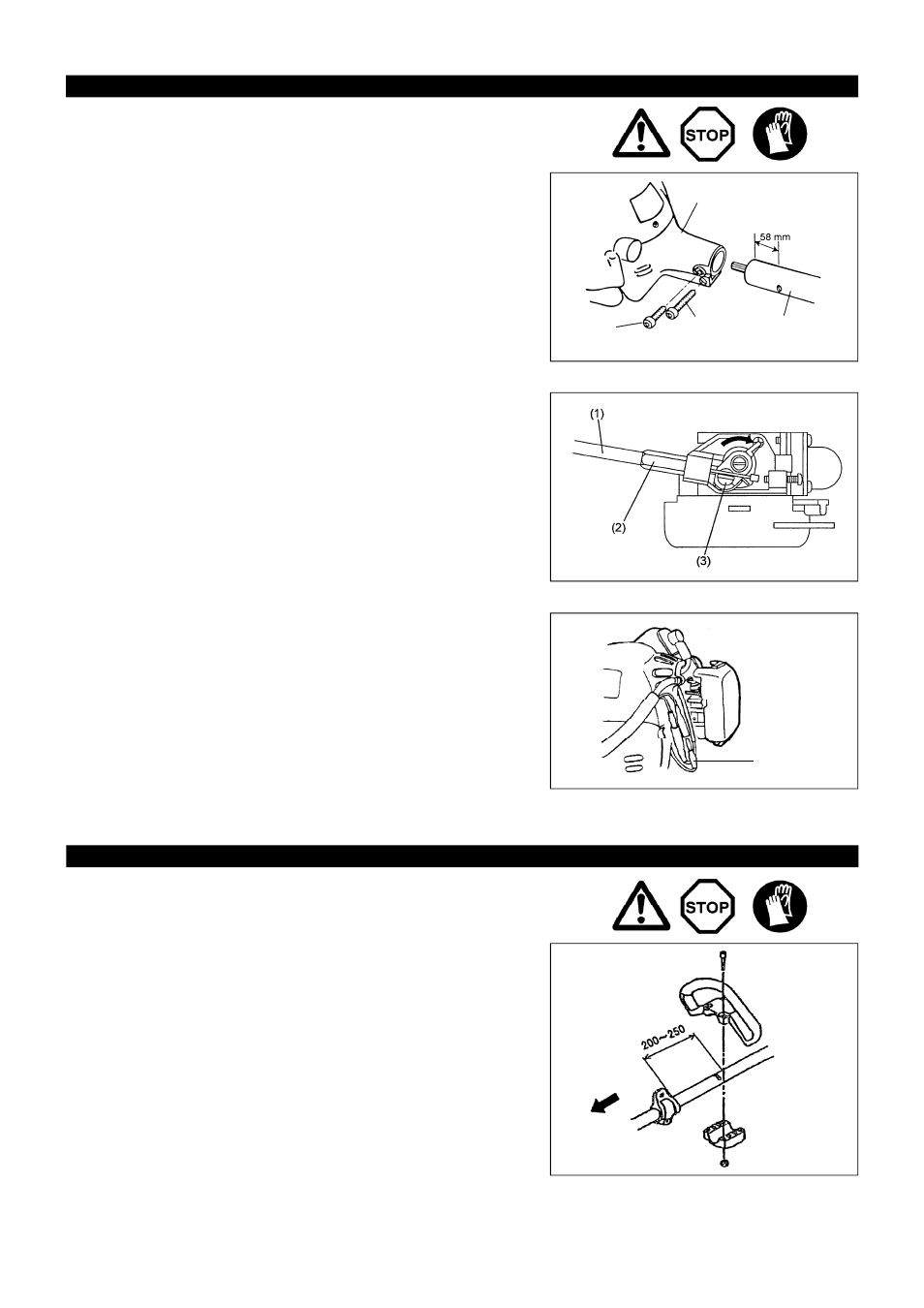

– Insert the drive shaft into the holder case (Fig).
Note: Always insert the drive shaft into the Clutch case fully (approx. 58
mm). If the inner shaft resists full insertion of the drive shaft, try to
insert it again after slightly rotating the drive shaft or the support
washer on the gear case to match the inner shaft to the hole inside
the holder case.
– After making sure that the drive shaft is installed fully and properly, tighten
the socket head bolt (M5 x 14) and socket head bolt (M5 x 25) to secure the
drive shaft.
–Inset control cable (1) through adjusting cable (2) and fit nipple of control
cable into swivel (3) of carburetor.
Connect the switch cords to the two cords from the engine by inserting one
into the other.
– Fix the cord connector by clamp.
ASSEMBLY OF ENGINE AND SHAFT
CAUTION: Before doing any work on the string trimmer, always switch off
the engine and pull the spark plug connector off the spark plug.
Always wear protective gloves.
CAUTION: Start the string trimmer only after having assembled it completely.
For machine with Loop handle
– Do not adjust position of the loop handle too close to the control grip
–The standard position of the handle is 200mm to 250mm from the hanger.
Connectors
MOUNTING OF HANDLE
Socket
head bolt
(M5 x 14) Socket
head bolt
(M5 x 25) Drive shaft
Clutch case
to engine
