8 - PMS USER’S MANUAL

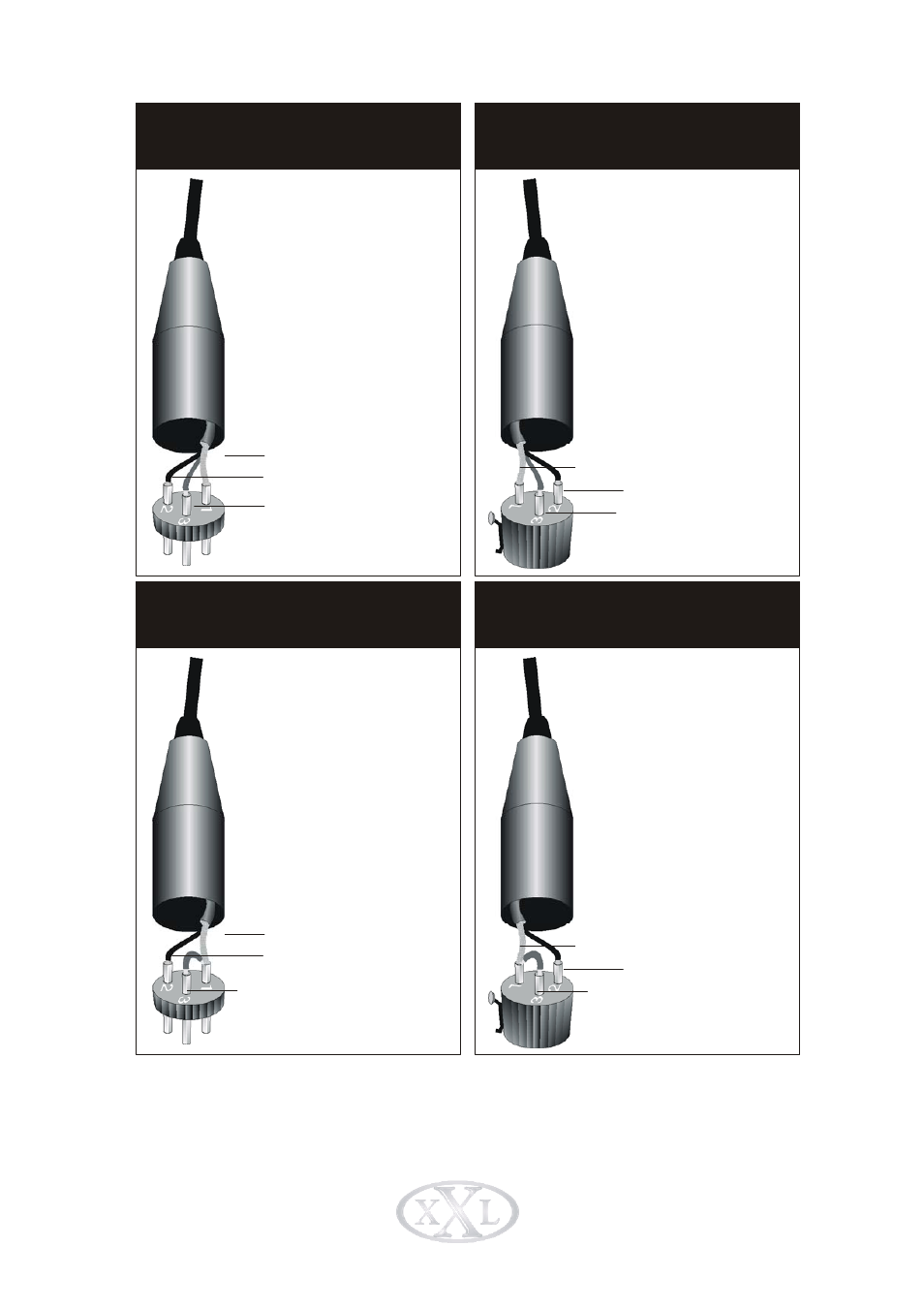

Fig.3.3 Male and Female XLR balanced and unbalanced wiring
Pin1 = Ground / Shield
Pin1 = Ground / Shield
Balanced use male
XLR connector
Unbalanced use male
XLR connector
Balanced use of female
XLR connector
Unbalanced use of female
XLR connector
Pin3 = Signal - (cold)
Pin3 = Shorted to Ground
Pin3 = Signal - (cold)
Pin3 = Shorted to Ground
Pin2 = Signal + (hot)
Pin2 = Signal
Pin2 = Signal + (hot)
Pin2 = Signal
Pin1 = Ground / Shield
Pin1 = Ground / Shield
