Assembly instructions
Step1:

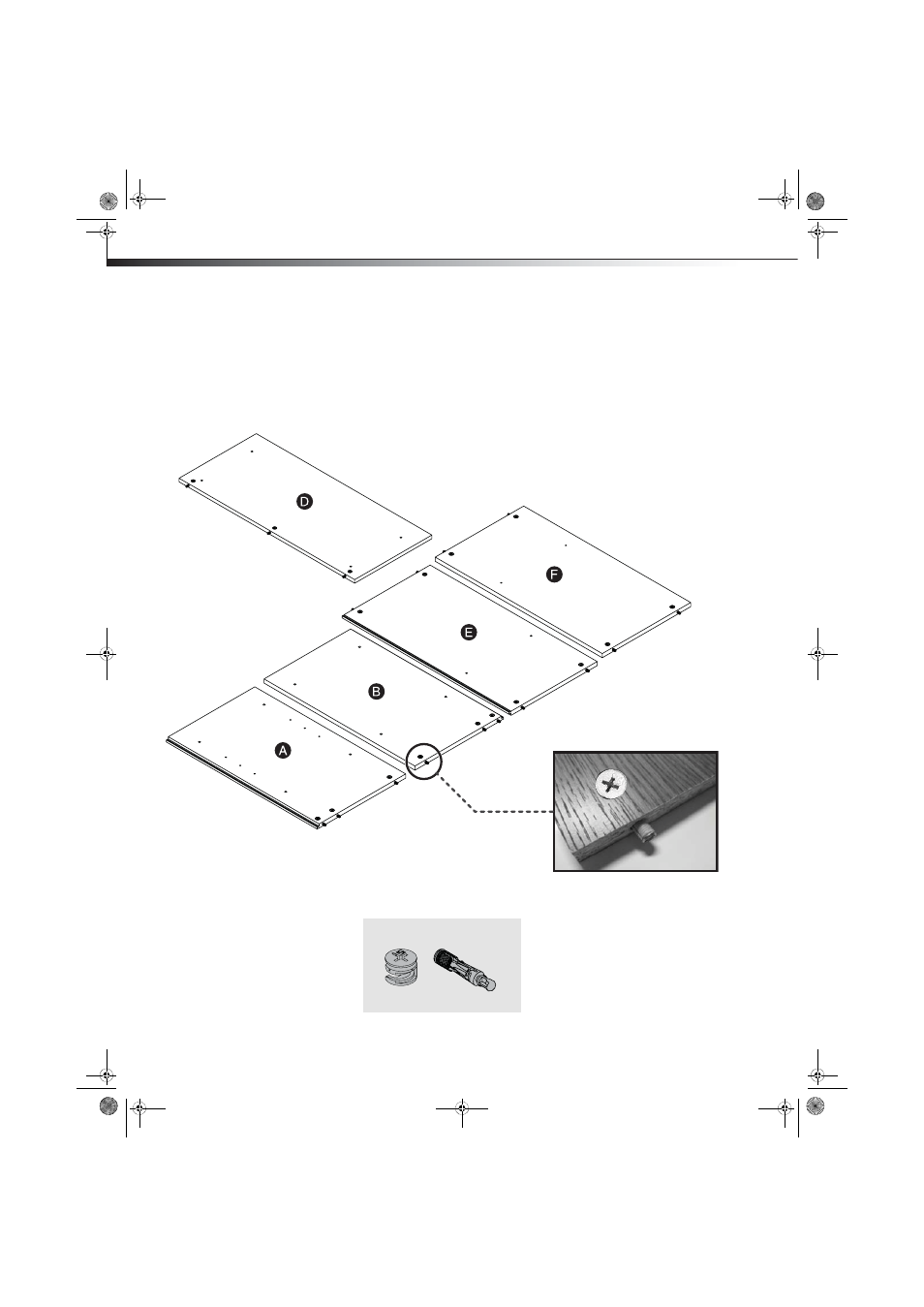

A hidden cam (M) has an arrow. When you insert the hidden cam, make sure that the arrow points toward the
hole in the side of the part you are inserting it into.
Assemble your stand on a carpeted floor or on the empty carton to avoid scratching your unit or the floor.
Push seventeen hidden cams (M) into the ends (A and B), top (D), bottom (E), and shelf (F). Then, insert a cam
dowel (N) into each hidden cam.
You’ll need:
Do not tighten the hidden cams in this step.
N (17) M (17)
