Dynex DX-TVM112 User Manual
Quick setup guide
Low-Profile TV Mount

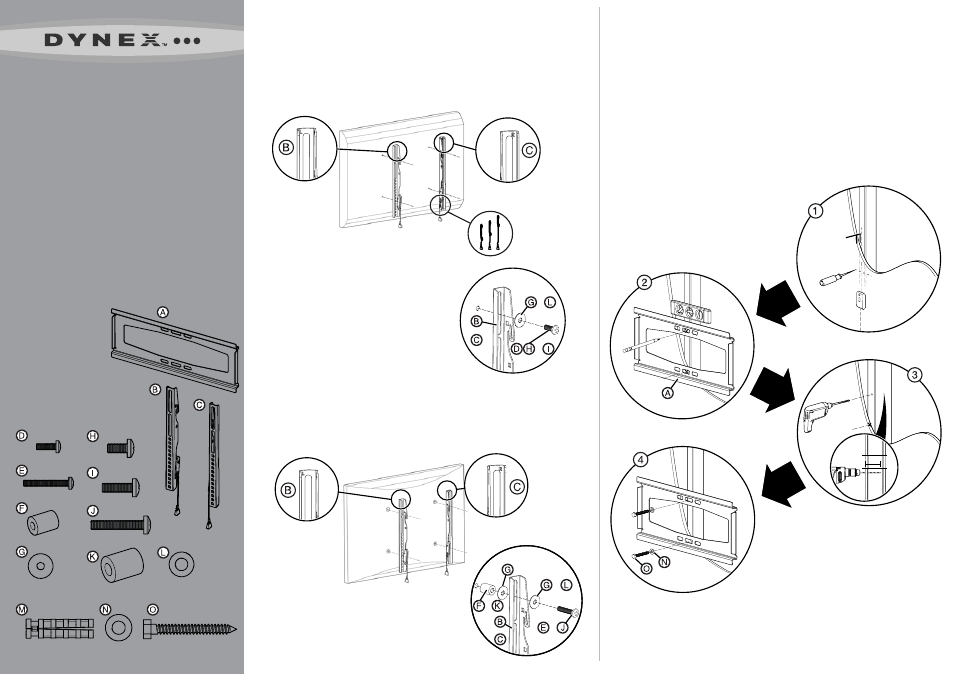

QUICK SETUP GUIDE
DX-TVM112
Thank you for choosing the Dynex DX-TVM112. The DX-TVM112 TV
mount is designed to support a TV weighing up to 50 lbs. (22.7 kg).
Package contents
A Wall plate (1)
B Left TV bracket (1)
C Right TV bracket (1)
M4 bag
D M4 x 12 mm screws (4)
E M4 x 30 mm screws (4)
F M4 spacers (4)
G M4 washers (8)
M6 bag
H
M6 × 12 mm screws (4)
I M6 × 20 mm screws (4)
J M6 × 35 mm screws (4)
K M6 spacers (4)
L M6 washers (4)
Lag bolt bag
M Wall anchors (3)
N 5/16 in. (7.9 mm) washers (3)
O 5/16
in. × 2 ½ in. lag bolts (3)
1 Attach the TV brackets
Option 1: Attaching to a TV with a flat back surface
Attach the left and right TV brackets (B and C) to the back of the TV using:
The M4 washers (G) and the M4 screws (D).
Or
The M6 washers (L) and the M6 screws (H or I).
Tools you will need:
• Power
drill
• 3/16 in. wood drill bit
• ½ in. masonry drill bit
• Phillips
screwdriver
• Level
• Socket wrench with ½ in. socket or
adjustable
wrench
• Pencil
• Stud
finder
• Awl
2 Install the wall plate
Option 1: Installing to a wood stud wall
1 Locate the stud. Verify the center of the stud with an awl or thin nail or
use an edge to edge stud finder.
2 Level the wall plate (A) and mark the hole locations.
3 Drill the pilot holes as illustrated.
4 Align the wall plate (A) with the pilot holes, then place the washers (N) over
the holes. Insert the lag bolts (O) through the washers, then tighten the lag
bolts only until the washers are pulled firmly against the wall plate.
DO NOT over-tighten the lag bolts (O).
CAUTION: Avoid potential injuries or property damage!
Any material covering the wall must not exceed 5/8 in. (16 mm).
Option 2: Attaching to a TV with a rounded back surface
Attach the left and right TV brackets (B and C) to the back of the TV using:
The M4 spacers (F), M4 washers (G), and the M4 screws (E).
Or
The M6 spacers (K), M6 washers (L), and the M6 screws (J).
Lag Bolt Bag
M4
M4
M6
M6
5/16 in.
5/16 × 2½ in.
M4 Bag
M4 × 12 mm
M4 × 30 mm
M6 Bag
M6 × 12 mm
M6 × 20 mm
M6 × 35 mm
or
or
or
or
5/8 in.
(<16 mm)**
2.5 in.
(63.5 mm)*
*Drill the pilot hole to a depth of 2.5 in. (63.5 mm)
**Maximum thickness of any material covering
the stud or concrete surface.
NOTE: Determine if there is sufficient space between the back of
the TV and the wall to connect all your cables before proceeding.
You may need to use the optional spacers to allow more clearance
between the back of the TV and the wall.
or
or
or
NOTE: Adjust to shorten
or hide the cords
