Tail/Stop, Turn Signal Lamp, and Backup Lamp

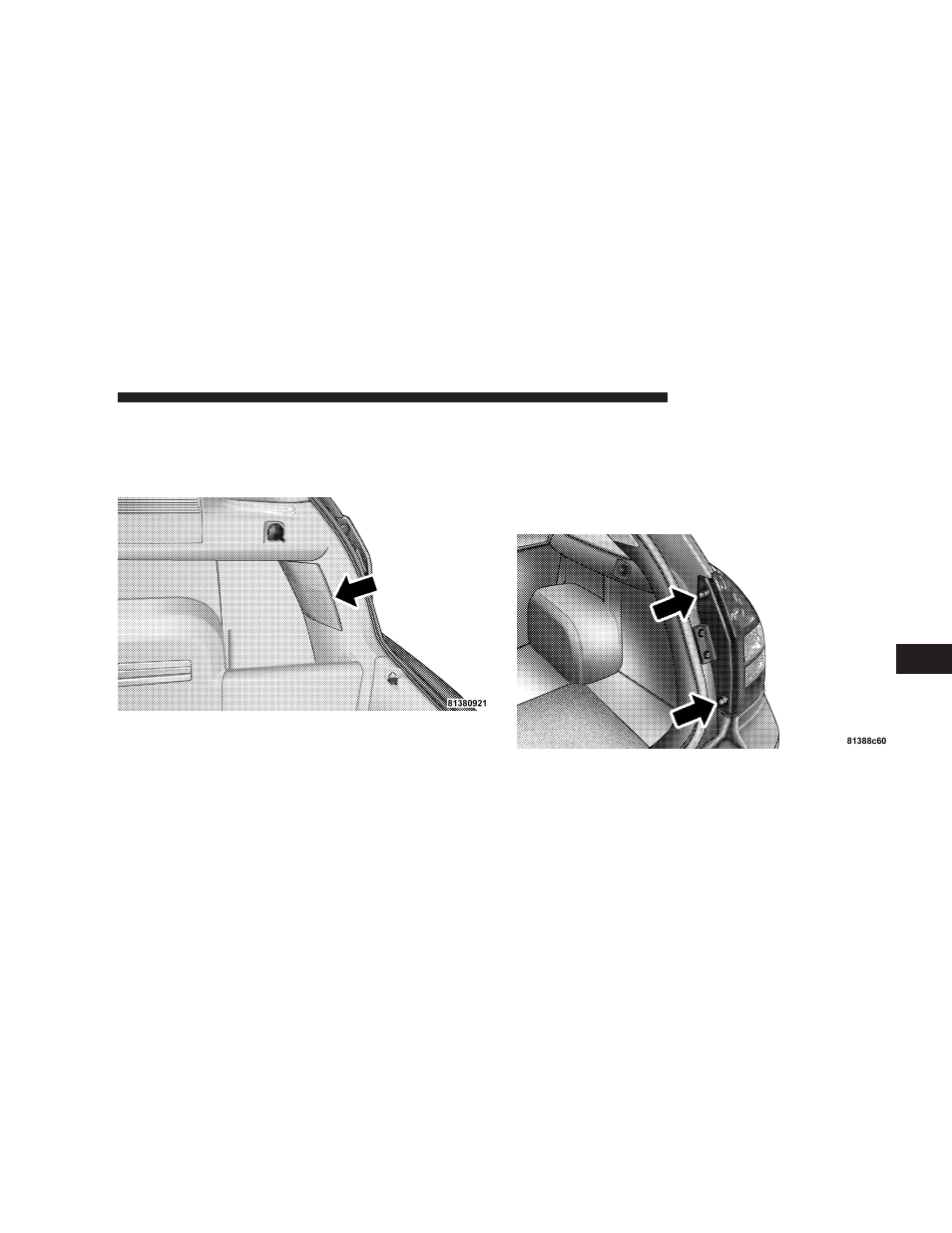

1. Open the liftgate.
2. Remove tail lamp access cover.
3. Push the tail lamp electrical connector locking tab to
the side.
4. Disconnect the electrical connector.
5. Remove 1 wingnut from the back of the tail lamp
assembly.
6. Remove 2 push pin fasteners under liftgate using a flat
bladed tool.
