Page 19
19

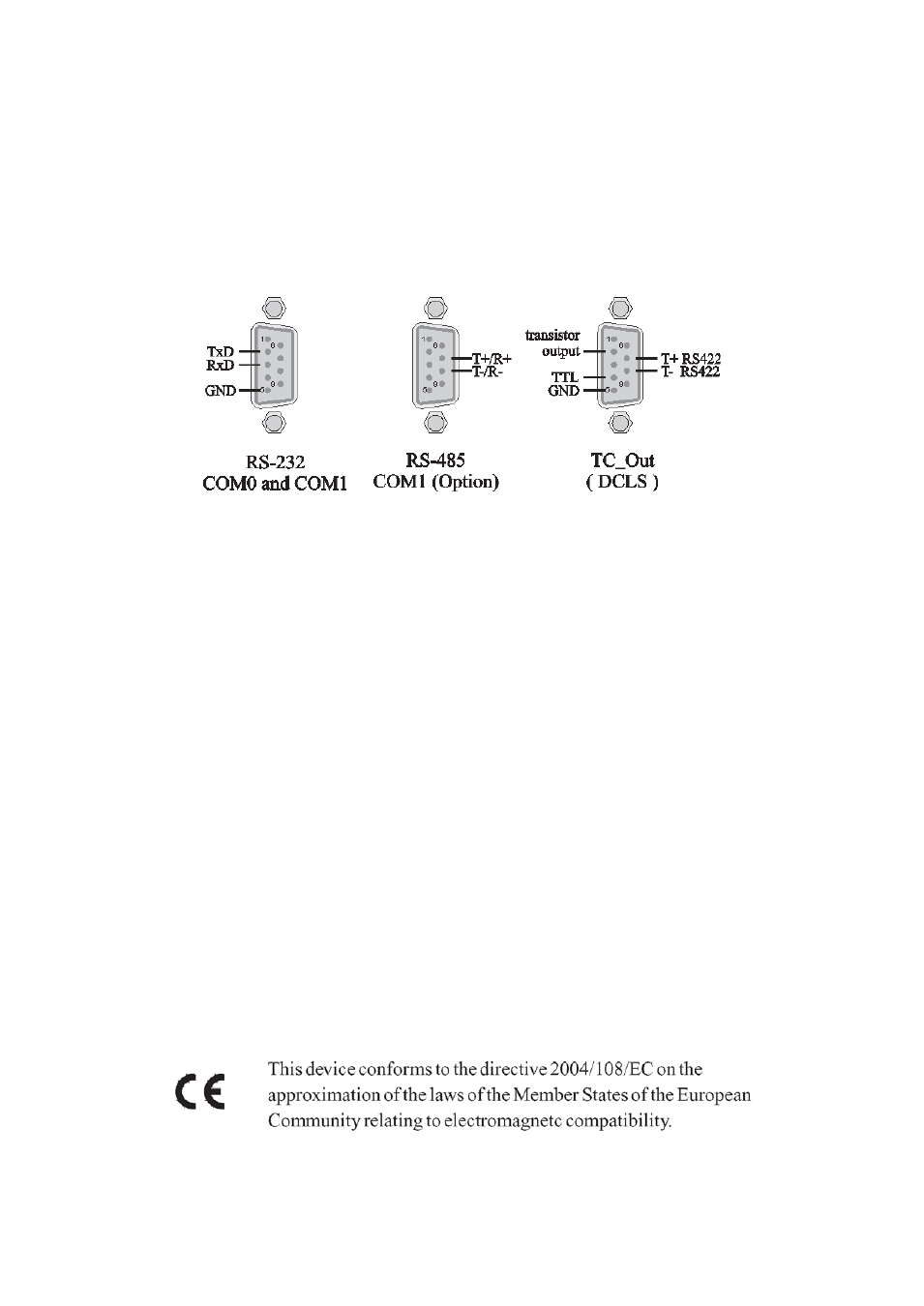

Assignment of the DSUB connectors
The serial ports COM0 and COM1 as well as the unmodulated IRIG/AFNOR time
code signals are accessible via nine-pole DSUB connectors in the frontpanel. These
RS-232 interfaces can be connected to a computer by using a standard modem cable.
TxD describes the sending, RxD the receiving line of the GPS164xHS.
Replacing the lithium battery
The life time of the lithium battery on the board is at least 10 years. If the need arises
to replace the battery, the following should be noted:
ATTENTION!
Danger of explosion in case of inadequate replacement of
the lithium battery. Only identical batteries or batteries
recommended by the manufacturer must be used for re-
placement. The waste battery must be disposed as propo-
sed by the manufacturer of the battery.
CE label
