Functional details, Signal level control, Chapter 3 – Measurement Computing CIO-DIO96 User Manual

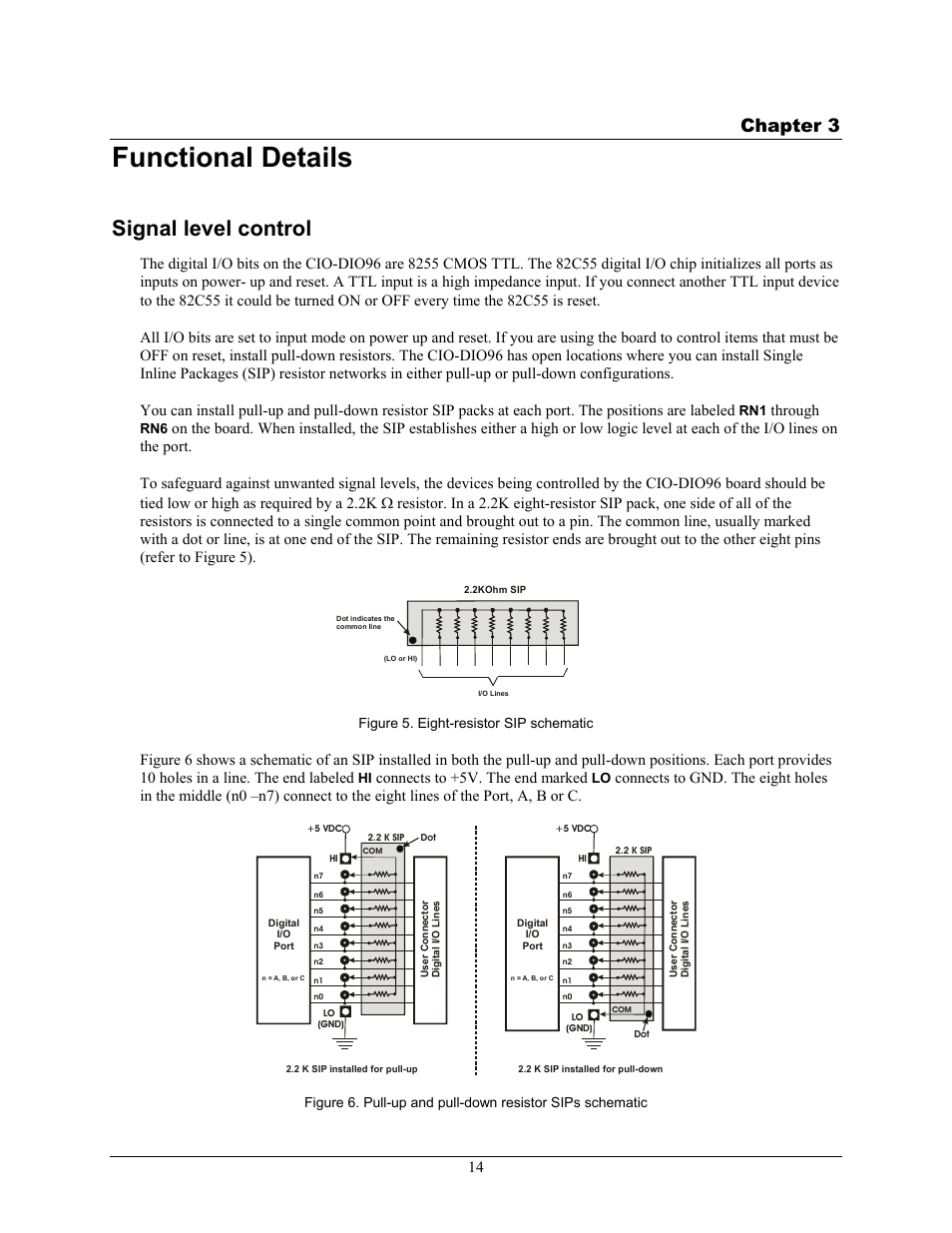

Page 14: Through, Figure 6, Connects to +5v. the end marked
