Pinout – main i/o connectors, Cabling, Cio-dio96 user's guide installing the cio-dio96 – Measurement Computing CIO-DIO96 User Manual

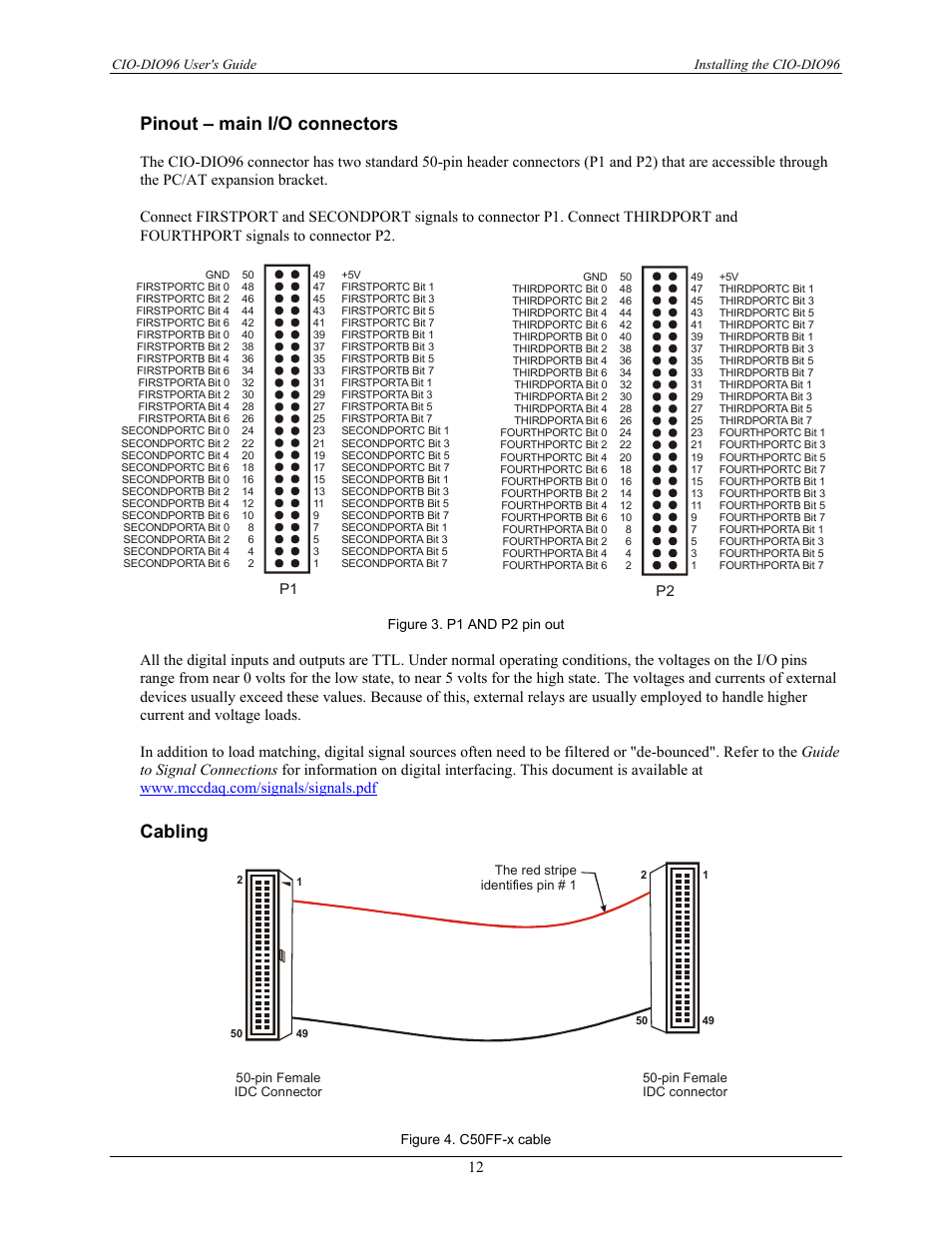

Page 12: Figure 3. p1 and p2 pin out, Figure 4. c50ff-x cable
