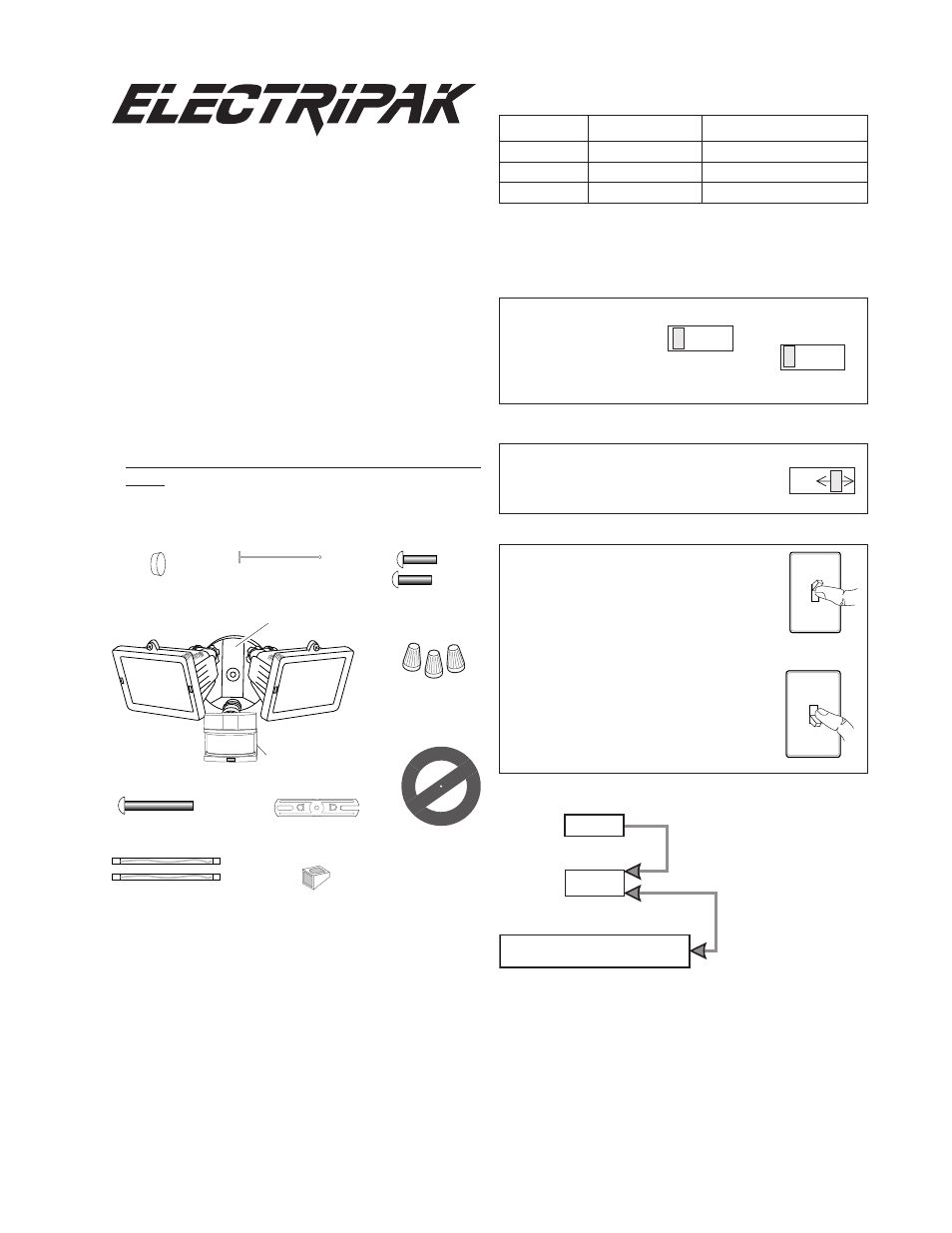

Twin Halogen
Motion Sensing
Light with 2-Level
Lighting

Model 5512

Features

• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• 2-Level Lighting Timer.
• Photocell keeps the lighting off during daylight

hours.

• LED indicates motion was sensed (day or night).

Requirements

• The Light Control requires 120-volts AC.
• If you want to use Manual Mode, the control must be

wired through a switch.

Some codes require installation by a qualifi ed

electrician.

• This product is intended for use with the enclosed

gasket and with a junction box marked for use in wet
locations.

Cover

Plate

Light Control

Sensor

3 Wire

Connectors

Gasket

6 Mounting

Screws (3 sizes)

®

Mounting Bolt

Mounting Strap

Rubber Plug

OPERATION

* resets to Auto Mode at dawn.

TEST

TEST 1 5 20

ON-TIME

Off 3 6 Dusk to
Dawn

2-Level
Lighting

Put ON-TIME switch
on the sensor bot-
tom to TEST and
the 2-Level Lighting
switch OFF.

MANUAL MODE

ON-TIME

TEST 1 5 20

... back on.

AUTO

1 Second OFF

then...

2-LEVEL LIGHTING TIMER

Light comes on half bright for selected time after dusk
(Off, 3 hr., 6 hr., until dawn). If motion is sensed, the
light turns on full bright for the ON-TIME (1, 5, or 20
minutes) then returns to dim mode.

Move ON-TIME Switch to

1, 5, or 20 minutes

Mode Switching Summary

Flip light switch

off for one second

then back on*

MANUAL MODE

AUTO

TEST

Note: When fi rst turned on wait about 1

1

/

2

minutes for

the circuitry to calibrate.

Manual mode only works at night
because daylight returns the sensor
to AUTO.

Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.

Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.

* If you get confused while switching modes, turn the

power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.

Light Shield

Plastic Hanger

2 Halogen Bulbs

This package includes:

Put the ON-TIME switch in the 1, 5,
or 20 minute position.

Mode: On-Time:

Works:

Day

Night

Test 5

Sec

x

x

Auto

1, 5, 20 min.

x

Manual Until

Dawn*

x
