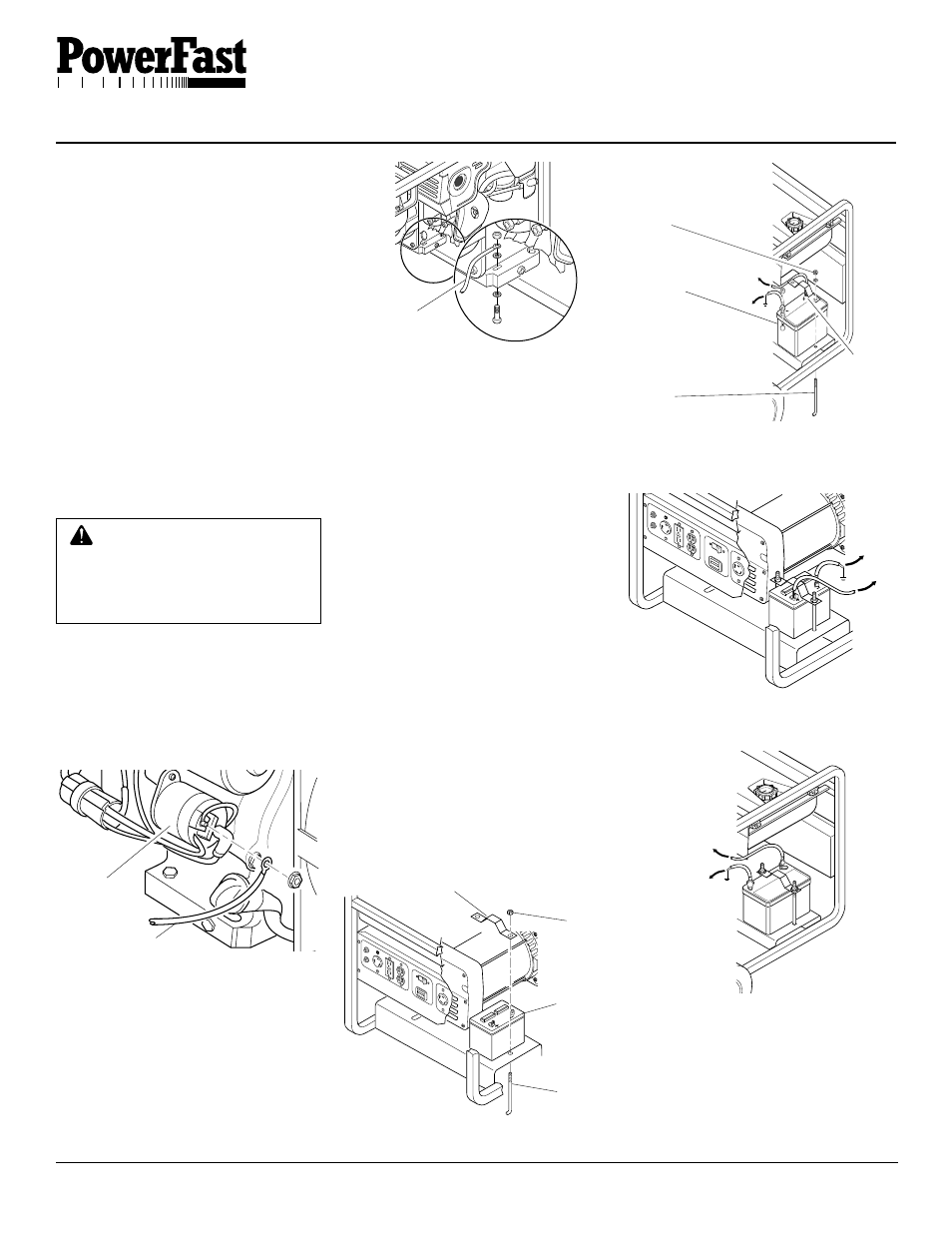

MOUNTING BATTERY TO
GENERATOR
1. Secure battery to generator by battery
hold-down system. This system consists
of the battery mounting bracket, hook
bolts, and nut (see Figure 9).
Note: Model PGH11000IE battery is
located on opposite side as shown (see
Figure 10).
2. Locate the red, positive (+) battery
cable from starter solenoid. Connect it
to the positive (+) battery terminal (see
Figures 11 and 12).
3. Locate the black, negative (–) battery
cable attached to engine block. Connect
it to the negative (–) battery terminal
(see Figures 11 and 12).
4. Check battery before starting engine.
Make sure fluid levels are full. Make
sure battery is charged.
See engine Owner’s Manual for more
information.
Battery
Hook
Bolt
Nut
BATTERY
Continued
Always wear safety glasses when working
with battery. Make sure battery terminals are
clean. Make sure cable connections are tight.
Always shut down engine before removing
or attaching battery cables. Always remove
the negative (–) cable first. Always attach
negative (–) cable last.
INSTALLING BATTERY
CABLES TO ENGINE
1. Attach the red, positive (+) battery
cable to the starter solenoid on engine
(see Figure 7). The starter solenoid is
located directly above the starter on
Model PGH11000IE. This cable is fac-
tory installed.
2. Attach the black, negative (–) battery
cable to the engine block. Use the bolt,
nut, and two washers provided with the
battery cables. Use long mounting
hole on opposite side of engine from
starter solenoid. Attach cable as shown
in Figure 8.
CAUTION: Do not over tighten
positive terminal on starter sole-
noid. Positive terminal could ro-
tate and cut into negative termi-
nal, causing a short.
