17 106746
OWNER’S MANUAL
ILLUSTRATED
PARTS LIST
FOR MODEL PGH11000IE

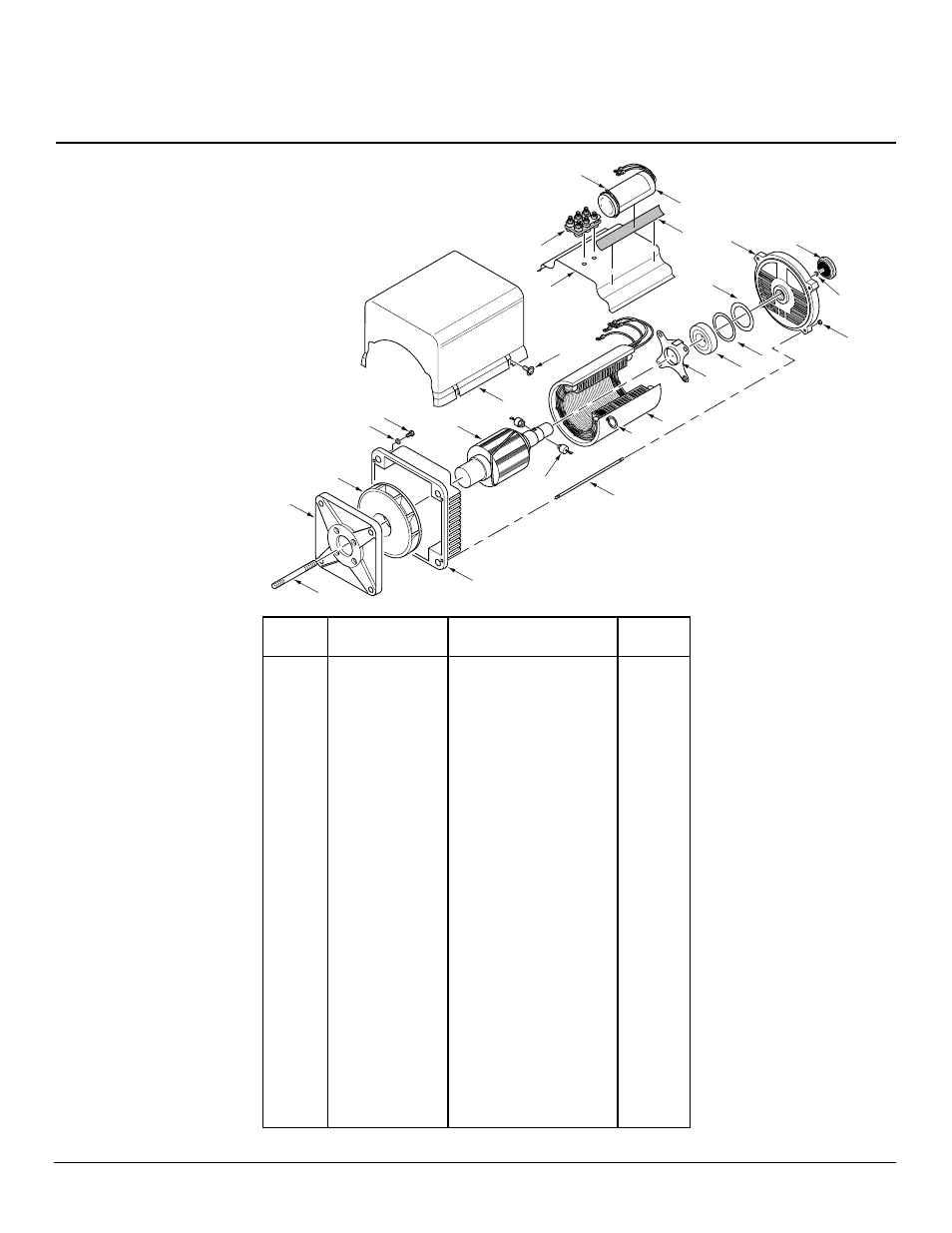

ALTERNATOR ASSEMBLY
This list contains replaceable parts used in
your generator. When ordering parts, fol-
low the instructions listed under Replace-
ment Parts on page 24 of this manual.
1 * Stator 1
2 * Rotor 1
3 103188-01 Draw Bolt 1
4 103191-01 Fan 1
5 103192-01 Balancing Disc 1
6 103193-01 Lifting Eyes 2
7 103194-01 D.E. Bracket 1
8 103195-01 N.D.E. Bracket 1
9 099847-05 Mounting Bolts 4
10 099891-01 Nuts 4
11 103189-01 Top Box 1
12 099701-01 Screw and Washer 6
13 103198-01 Plastic Cap 1
14 103199-01 Bearing 1
15 103200-01 Borelly Washer 1
16 27003012S Diode 2
17 103201-01 Terminal Block 1
18 099845-02 Capacitor 1
19 103204-01 Tie Wrap 1
20 099892-02 Foam Pad 1
21 103202-01 Capacitor Bracket 1
22 103190-01 Engine Flange 1
23 27003015S Bolts 4
24 103203-01 'O' Ring 1
25 WLE-5 Washer 2
26 099891-01 Hex Head Nut 1
† 102938-01 Alternator Assembly 1
KEY PART
NO. NUMBER DESCRIPTION QTY.
1
5
16
14
24
10
26
18
19
6
2
11
12
9
3
7
4
22
23
25
17
21
8 20
15
13
* Part not available by itself. Must purchase Alternator Assembly.
