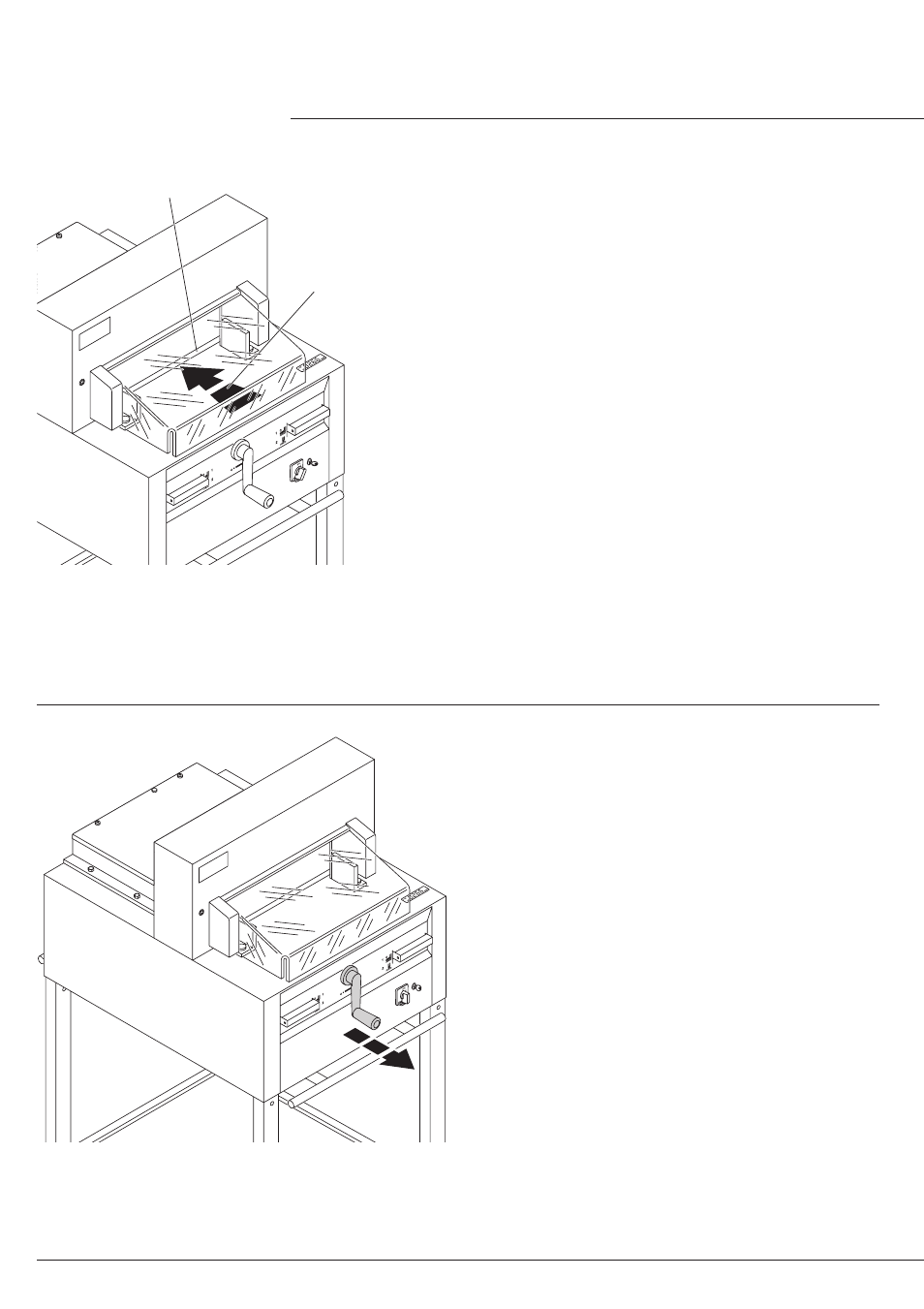

Cut according to markings
Optical cutting line (A) that indicates the exact
position of the cut. Blade cuts on the front
edge (B) of the light beam. (Only use when no
exact cut is required).
• Adjust the backgauge with the crank handle
E to the back.
• Insert paper and move by means of the
stacking angle to the backgauge H and side
lay on the left I.
• Turn the crank handle E to the right until the
marking on the paper to be cut is below the
cutting line indicator.
Pull out the handle to avoid the measurement
being wrongly adjusted.
