- 17 -
1
9
9
6
4
5
8
2
1
3
7
11 12 13

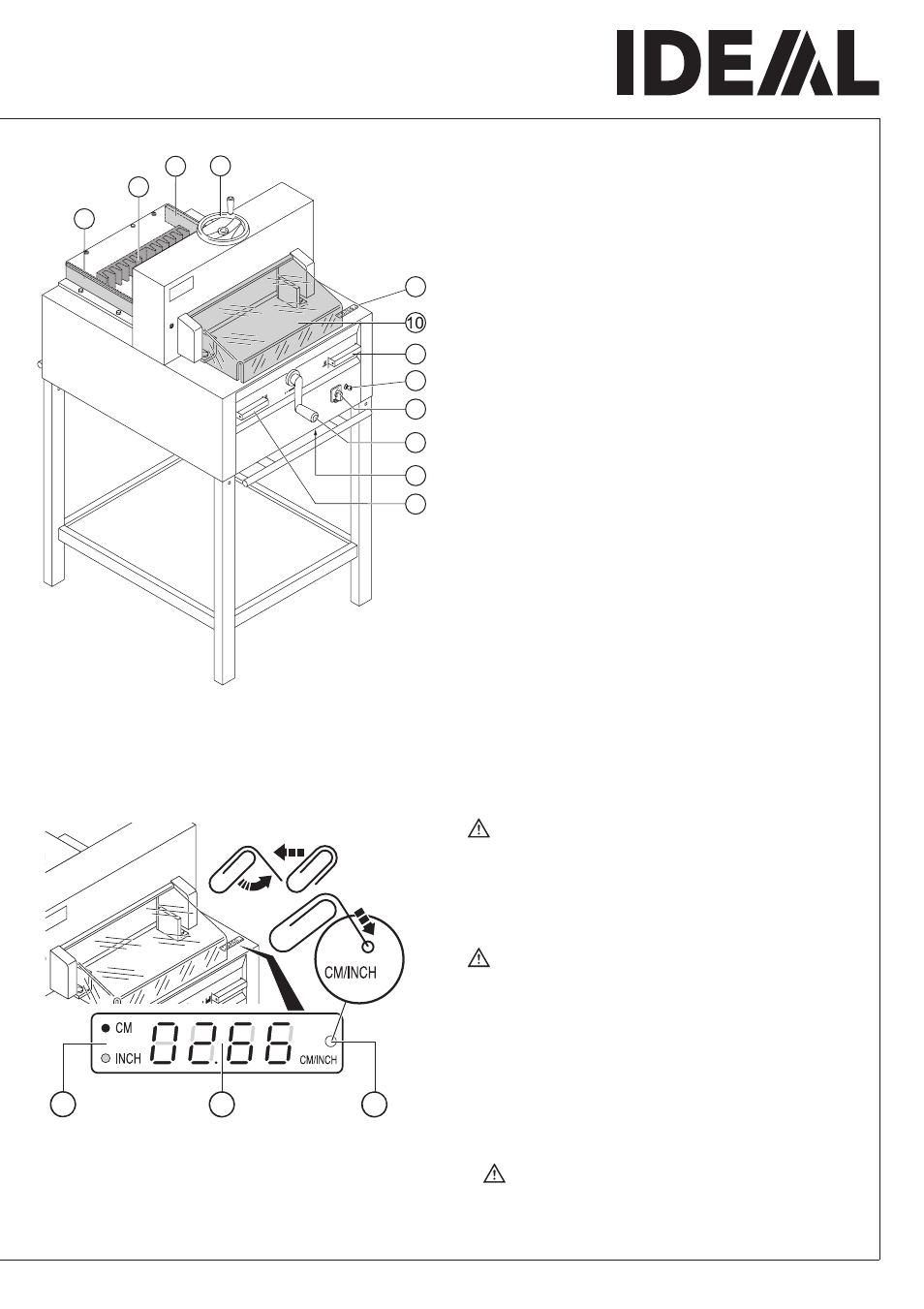

• Operation •
Operating elements
A - Safety two-handed control system
Pre-clamping (only IDEAL 4850)
and cutting
B - Overload switch
Blade drive IDEAL 4815
Blade drive, clamp drive,
IDEAL 4850
C - Display cutting size (cm or inch)
D - Main switch
E - Crank handle for backgauge
setting
F - Key switch
G - Paper clamp (only IDEAL 4815)
H - Backgauge
I - Side lay left and right
J - Front safety guard
K - Measuring unit (cm or inch)
L - Display cutting size (cm or inch)
M - Changeover (cm/inch)
Warning!
Before cutting a measurement please check
that the measurement scale (cm or inch) is
adjusted correctly. See left picture.
Cutting activation
Warning!
• Run backgauge to the front for turning the
paper stack.
• Do not interrupt the upward movement of the
blade by performing switching procedures.
• Close the front safety guard J .
• Blade must always be at the top and be
covered by the clamp. Do not touch the
blade.
(see safety information on page 32).
Risk of injury!
