Booklet Feeder Model 46 Operator Manual 2-1
2. Getting to know the Model 46
The Model 46 is a microprocessor controlled booklet
feeder designed to be used in a system together with
the mailer/inserter Model 45 and collator Model 306/
310 or as a stand-alone unit.
Take a few minutes to become familiar with compo-
nents of the Model 46.

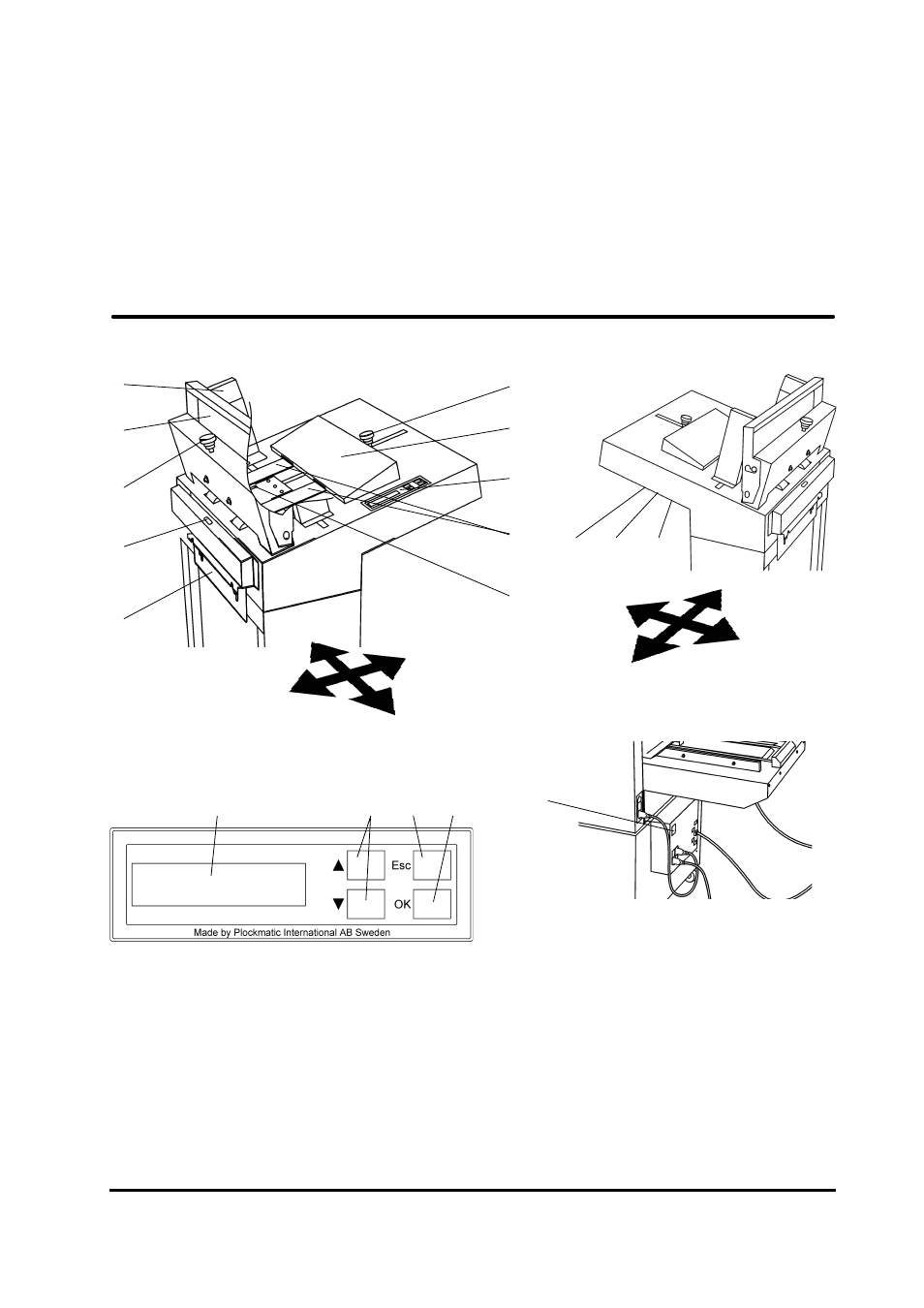

2.1 Main components
1 Insert side guides
2 Insert front guide
3 Separator pads adjustment knob
4 Outfeed sensor
5 Docking plate
6 Insert rear guide adjustment knob
7 Insert rear guide
8 Control panel
9 Insert feed belts
1
3
4
7
8
6
9
12 13 11
10 Insert sensor
11 Connection cable jack, female
12 Termination plug jack, male
13 Power cord receptacle
14 Display
15 Arrow buttons
16 Escape button
17 OK button
18 Main power switch
14 15 16 17 18
The Model 46 is powered from the Power
Pack mounted on the Model 45.
right
left
rear
front
right
left
front
rear
5
2
10
