Service and Disassembly Procedures

!

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit and discharge
capacitor through a 10,000 ohm resistor before attempting to service, unless test procedures require power to be
connected. Ensure all ground wires are connected before certifying unit as repaired and/or operational.

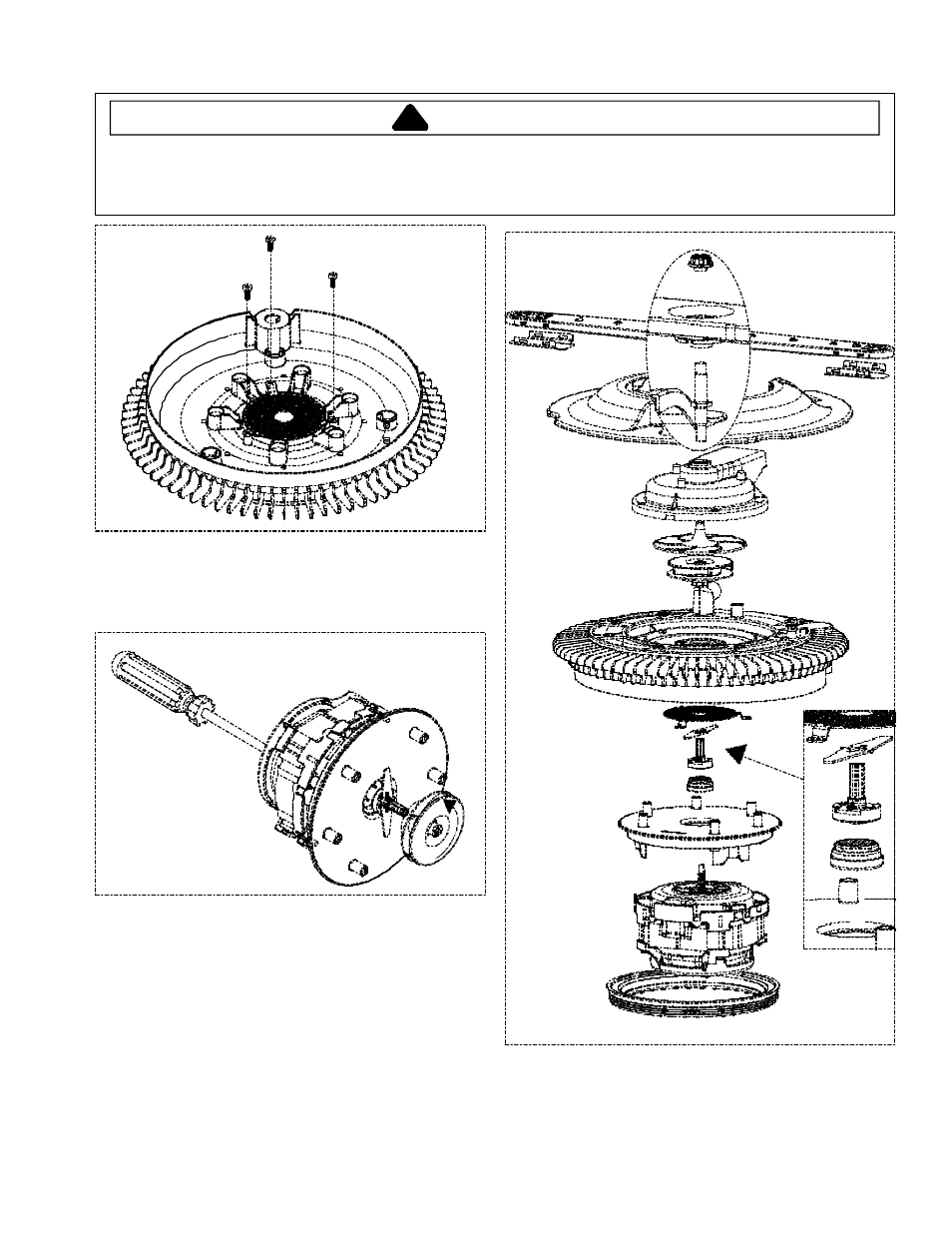

15. Remove Chopper Sleeve by using Impeller as a

wrench. Lock motor rotation using the access hole
provided in back of motor.

16. Lift off Seal Seat Assembly.
