17 104307
OWNER’S MANUAL
CLEANING AND
MAINTENANCE
WARNING: Turn off heater
and let cool before cleaning.
CAUTION: You must keep
control areas, burner, and circu-
lating air passageways of heater
clean. Inspect these areas of
heater before each use. Have
heater inspected yearly by a quali-
fied service person. Heater may
need more frequent cleaning due
to excessive lint from carpeting,
pet hair, etc.
ODS/PILOT AND BURNER
• Use a vacuum cleaner or small, soft
bristled brush to clean.
LOGS
• If you remove logs for cleaning, refer to
Installing Logs, pages 13 and 14, to prop-
erly replace logs.
• Replace log(s) if broken or chipped
(dime-sized or larger).
BURNER PRIMARY AIR
HOLE
Air is drawn into the burner through the 8
holes in the brass fitting at the burner en-
trance. There holes may become blocked
with dust or lint. Periodically inspect these
holes for any blockage and clean if needed.
Blocked air holes will create soot.
MAIN BURNER
Periodically inspect all burner flame holes
with the heater running. All slotted burner
flame holes should be open with yellow
flame present. All round burner flame holes
should be open with a small blue flame
present. Some burner flame holes may be-
come blocked by debris or rust, with no
flame present. If so, turn off heater and let
cool. Either remove blockage or replace
burner. Blocked burner flame holes will
create soot.
OPERATING
HEATER
Continued

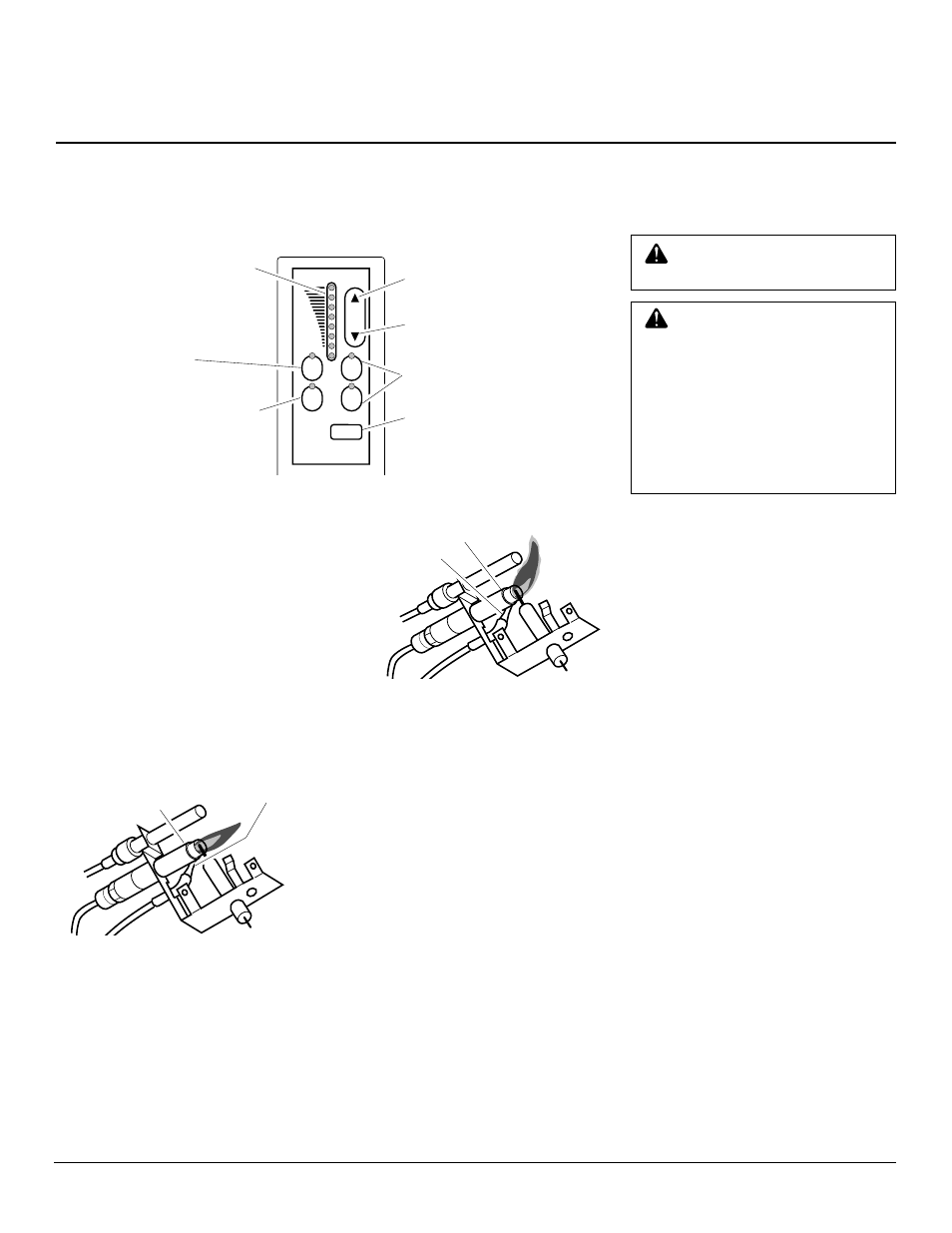

Figure 29 - Thermostat Hand-Held Remote Control Unit Selections
TEMP
STATUS
HI
LO MAN ON
AUTO OFF
Increases Room
Temperature
Decreases Room
Temperature
Turns Burners
On and Off
Shows Current
Operation Mode
The log heater will automati-
cally cycle between pilot and
the heat setting that has
been selected.
Shows Temperature Setting
Allows Burners to be Turned
On and Off with the Hand-
Held Remote Unit.
Figure 30 - Correct Pilot Flame Pattern
Pilot Burner
Thermocouple
Figure 31 - Incorrect Pilot Flame Pattern
Check pilot flame pattern and burner flame
patterns often.
PILOT FLAME PATTERN
Figure 30 shows a correct pilot flame pat-
tern. Figure 31 shows an incorrect pilot
flame pattern. The incorrect pilot flame is
not properly heating the thermocouple.
When the thermocouple cools, the heater
will shut down.
If pilot flame pattern is incorrect, as shown
in Figure 31
• turn heater off (see To Turn Off Gas to
Appliance, page 16)
• see Troubleshooting, pages 18 through 20
Pilot Burner
Thermocouple
INSPECTING
BURNERS
MAIN BURNER
Periodically inspect all burner flame holes
with the heater running. All slotted burner
flame holes should be open with yellow
flame present. All round burner flame holes
should be open with a small blue flame
present. Some burner flame holes may be-
come blocked by debris or rust, with no
flame present. If so, turn off heater and let
cool. Either remove blockage or replace
burner. Blocked burner flame holes will
create soot.
