Digital Video Recorder User Manual
4
2.2 Front Panel

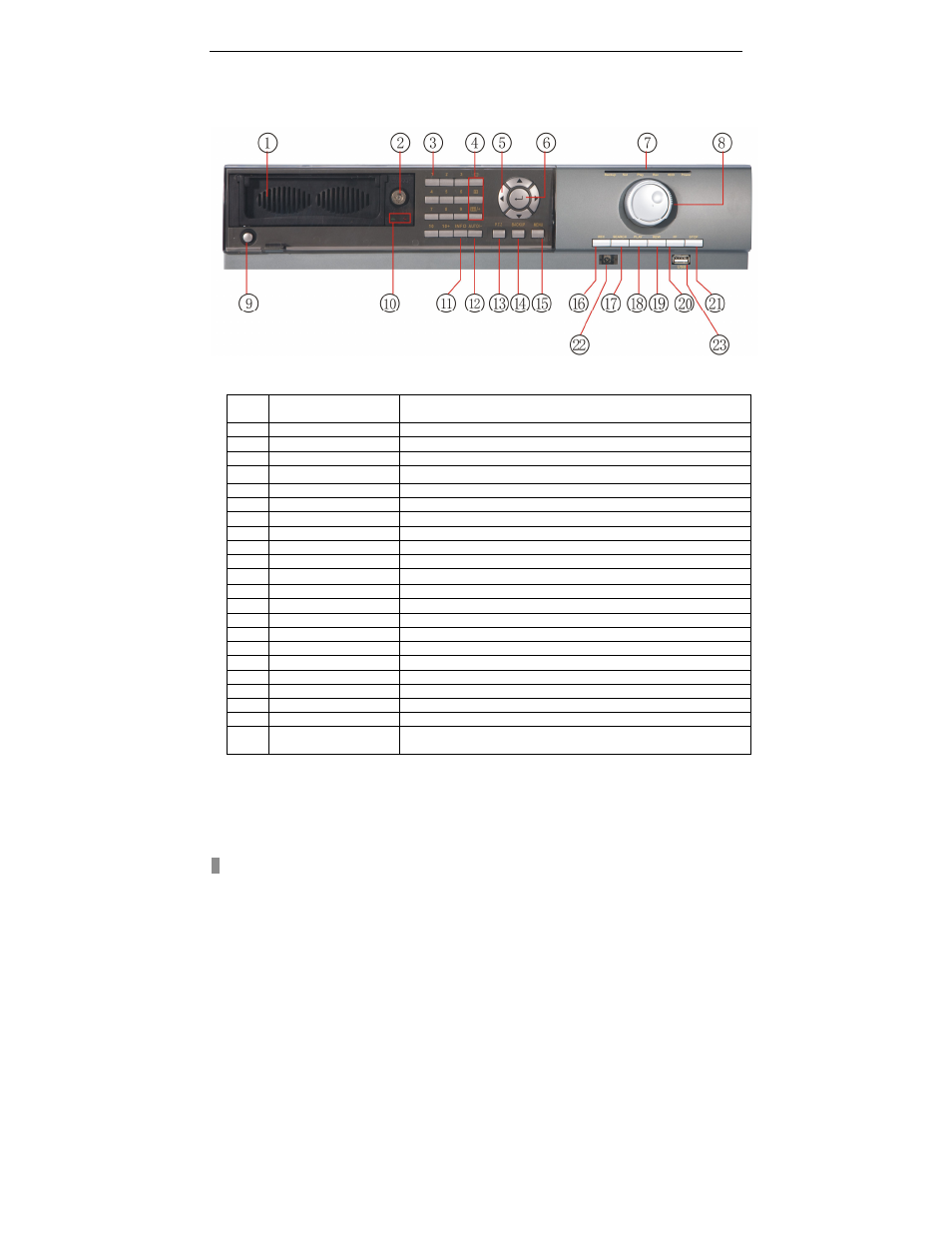

The Front Panel Layout is shown as Fig 2.3 Front Panel.
Fig 2.3 Front Panel
1
Heat Release
Window
Allow heat to escape from DVR
2
HDD Lock
Lock/Unlock the hard drive
3
Number Buttons
Input numbers or choose cameras
4
Multi-screen Button
Change screen display from single, 4, and 8 screens
5
Direction
Direction buttons. Move cursor in setup or pan/tilt/zoom (PTZ)
6
Enter Button
To confirm the choice or setup
7
Indicator Lights
Working indicators of power and network, etc.
8
Shuttle
Control the playback speed
9
Power
Shut down DVR
10
HDD Status Lights
Working status of Hard Drive
11
INFO
Check basic setup parameters of recording
12
AUTO
/-
Change screens automatically/Decrease the value in setup
13
P.T.Z.
Enter PTZ mode in live view
14
BACKUP
Enter backup mode in live view
15
MENU
Enter menu in live view
16
REC
Record manually
17
SEARCH
Enter search mode
18
PLAY
Enter playback mode
19
REW
Rewind
20
FF
Fast forward
21
STOP
Quit playback mode
22
IR Receiver
For remote control receiver
23
USB Port
To connect external USB Flash Drive for backup or to update
firmware
Table 2.1 Front Panel Layout
