SC6000 PROFIBUS MODEL
4
SC6000-1211 PROFIBUS MODEL
2 3 4
7 6
1
5

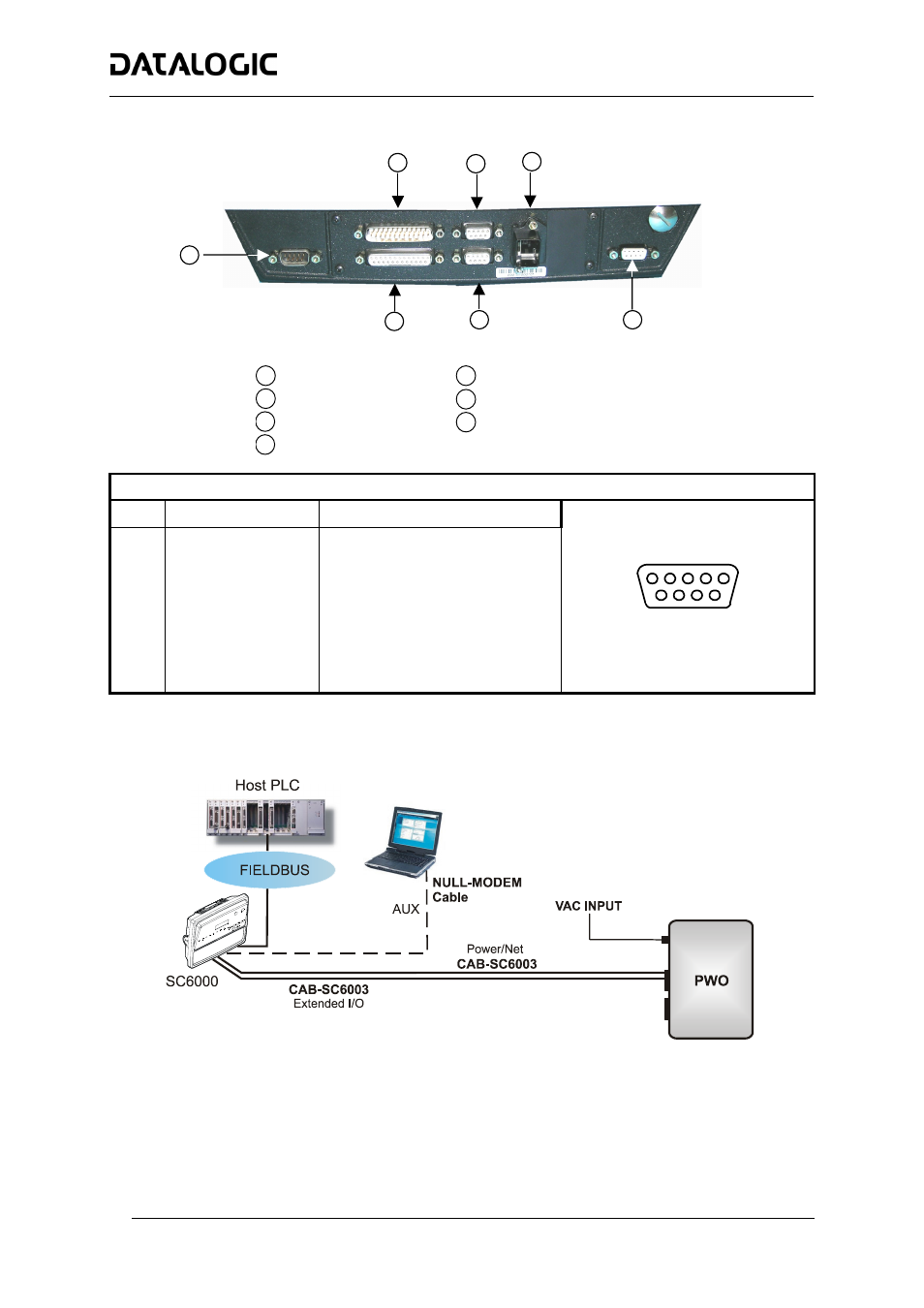

SC6000 Profibus Connector Panel
Modem Connector 1
Power/Net Connector 2
Main Interface Connector 3
Profibus Connector 5
Auxiliary Interface Connector 6
Extended I/O Connector 7
Ethernet Connector 4
PROFIBUS CONNECTOR
Pin Name Function
1 Shield* Shield, protective ground resp.
2 N.C. Not connected
3 B-LINE (RxD/TxD-P) Received/Transmitted data-P
4 CNTR-P** Repeater control signal
5 DGND Data ground (M5V)
6 +5 V Voltage plus (P5V)
7 N.C. Not connected
8 A-LINE (RxD/TxD-N) Received/Transmitted data
9 CNTR-N** Repeater control signal
5 1
9 6
9-pin D-sub Female Connector
* signal is optional
** signal is optional; RS485 level
Fieldbus Network
