8
Names aNd FuNctioNs
Basic
coNNectioNs
Basic
opera
tioN
adV
aNced
coNNectioNs
remote coNtroller
opera
tioN
trouBleshootiNg
others
Basic
coNNectioNs
ENGLISH
Notes:
• To prevent damage to circuitry, do not let the bare
speaker wires touch each other and do not let
them touch any metal part of this unit.
• Do not touch the speaker terminals when the
power is on. It may cause you to receive an
electric shocks.
• Be sure to connect the positive and negative
cables for the speaker properly. If they are miss-
connected, the signal phase will be reversed and
the signal quality will be corrupted.
WiriNg speaKer caBle
• Peel off the coating of speaker cable as shown
below.
Approx. 1 cm
Cut the coating
of cable.
Peel off the edge
of cable.
Twist
conductors.
• Wiring with speaker cable.
Turn counter-
clockwise to
loosen.
Insert conductor
of cable.
Turn clockwise
to tighten.

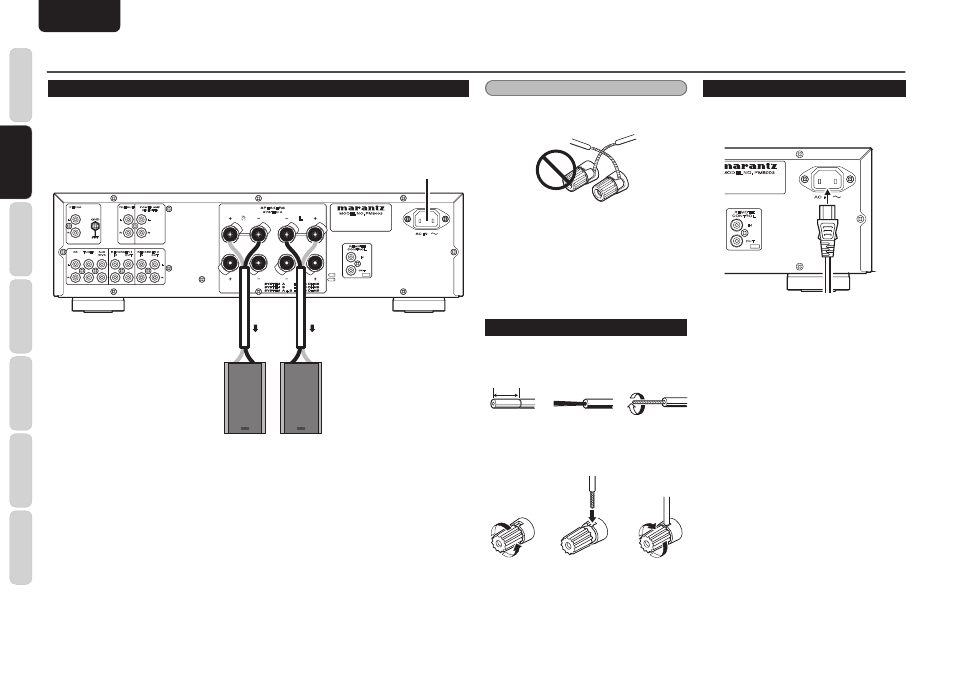

Basic coNNectioNs
• Set the SPEAKERS knob on the front panel in the A or A+B position.
coNNectiNg speaKer sYstems
Your speaker system must satisfy the below conditions. If it does not, this unit’s protective circuit will active,
whereby preventing proper playback. In some cases, the amplifier and speakers may be damaged.
• If using 1 set of speakers, total speaker impedance must be 4
Ω or more.
• If using 2 sets of speakers, total speaker impedance must be 8 Ω or more.
coNNectiNg oF ac poWer caBle
1. Plug the supplied AC power cable to the
AC IN socket on the rear panel of the main
unit.
AC IN
OUT
IN
REMOTE
CONTROL
MODEL NO. PM8003
2.
Plug the power cable into an AC outlet.
R
SPEAKERS
SYSTEM A
L
L
R
GND
CD AUX / DVD TUNER OUT IN RECORDER 1 OUT IN RECORDER 2
R
L
L
R
PHONO
AC IN
OUT
IN
REMOTE CONTROL
R L
R
L
POWER AMP DIRECT IN PRE OUT
R
L
MODEL NO. PM8003
To power outlet
R CH
speaker
L CH
speaker
