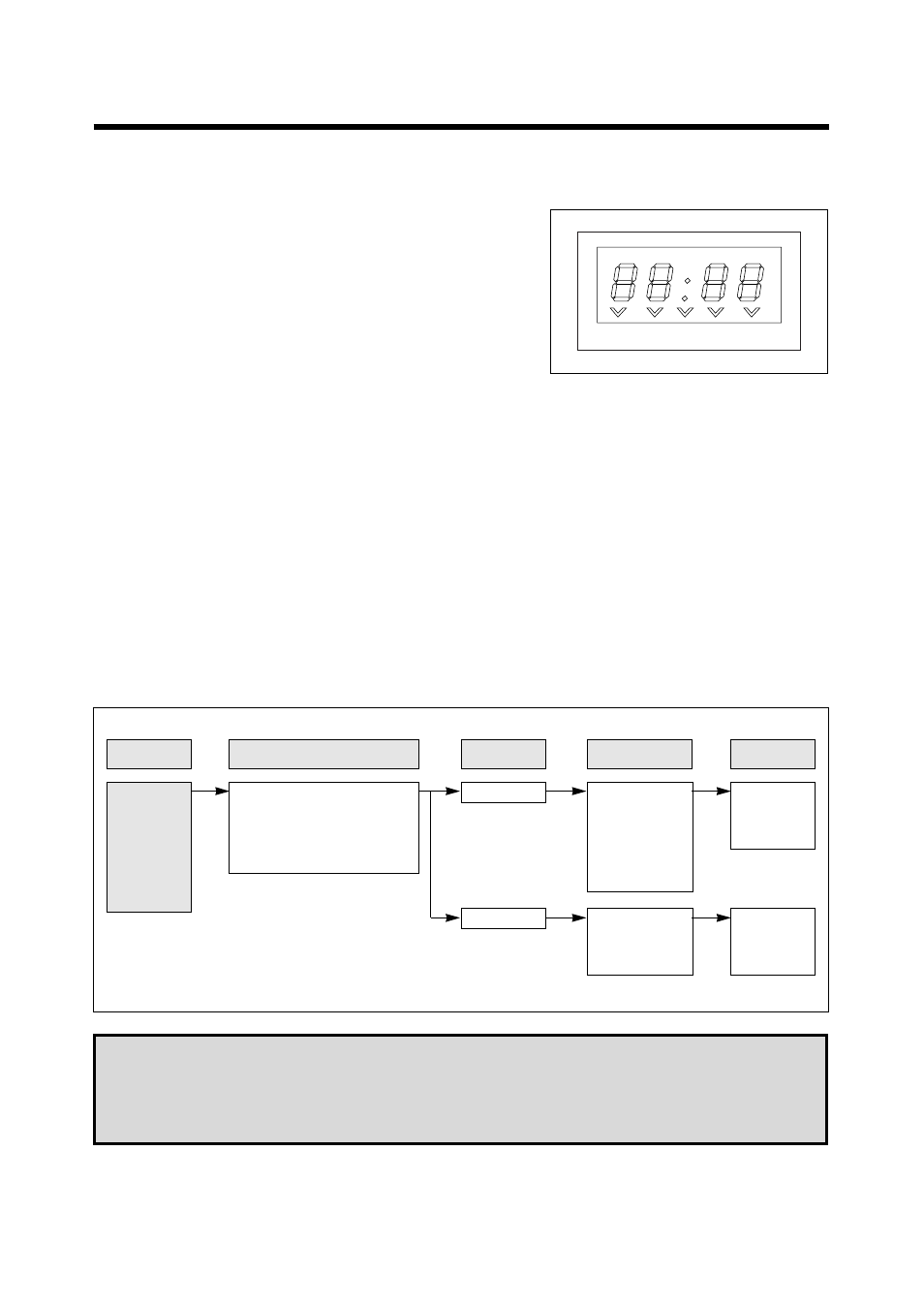

(TROUBLE 4) The following visual conditions inditions indicate a probable defective touch control circuit or
membrane switch assembly
1. Incomplete segments,
1) Segments missing.
2) Partical segments missing.
3) Digit flickering other than normal display slight flickering.
4) " :0" does not display when power is on.
2. A distinct change in the display are not on when they numbers is
the display.
3. One or more digits in the display are not on when they should be.
4. Display indicates a number different from one touched.
5. Specific numbers (for example 2 or 3) will not display when the panel is touched.
6. Display does not count down or up with time cooking or clock operation.
7. Oven is programmable and cooks normally but no display shows.
8. Display obviously jumps in time while counting down.
9. Display counts down noticeable too fast while cooking.
10. Display does not show the time of day when the clear pad is touched.
11. Oven lamp and turntable motor do not stop although cooking is finished. Check if the RELAY 2 contacts close if they
are close, replace touch control circuit.
NOTE
Before following the particular steps listed above in the trouble shooting guide for the membrane keyboard’s,
failure, please check for the continuity of each wire-harness between the membrane keyboard and P.C.B.
assembly.
CONDITION CHECK
Check rach pad for
continuity of the membrane
keyboard for the following
keyboard check procedure
Malfunction
of touch
control circuit
of control box
sub-assembly
RESULT
Normal
CAUSE REMEDY
Replace
control box
sub-assembly
Malfunction
of the membrane
keyboard
Abnormal
Replace the
membrane
keyboard
Display does
not show
programming
at all, even if
keyboard is
touched.
M/W DEF LOCK lb TIMER
