1 ... 539 111172 .... 1 .. HOOD
2 ... 539 111175 .... 2 .. SUPPORT, DRAW LATCH
3 ... 539 111182 .... 1 .. INLET TUBE
4 ... 539 111183 .... 1 .. MESH, POLY DIAMOND
5 ... 539 102587 .... 6 .. GROMMET, BUMPER
6 ... 539 105408 .. 21 .. WASHER, #10

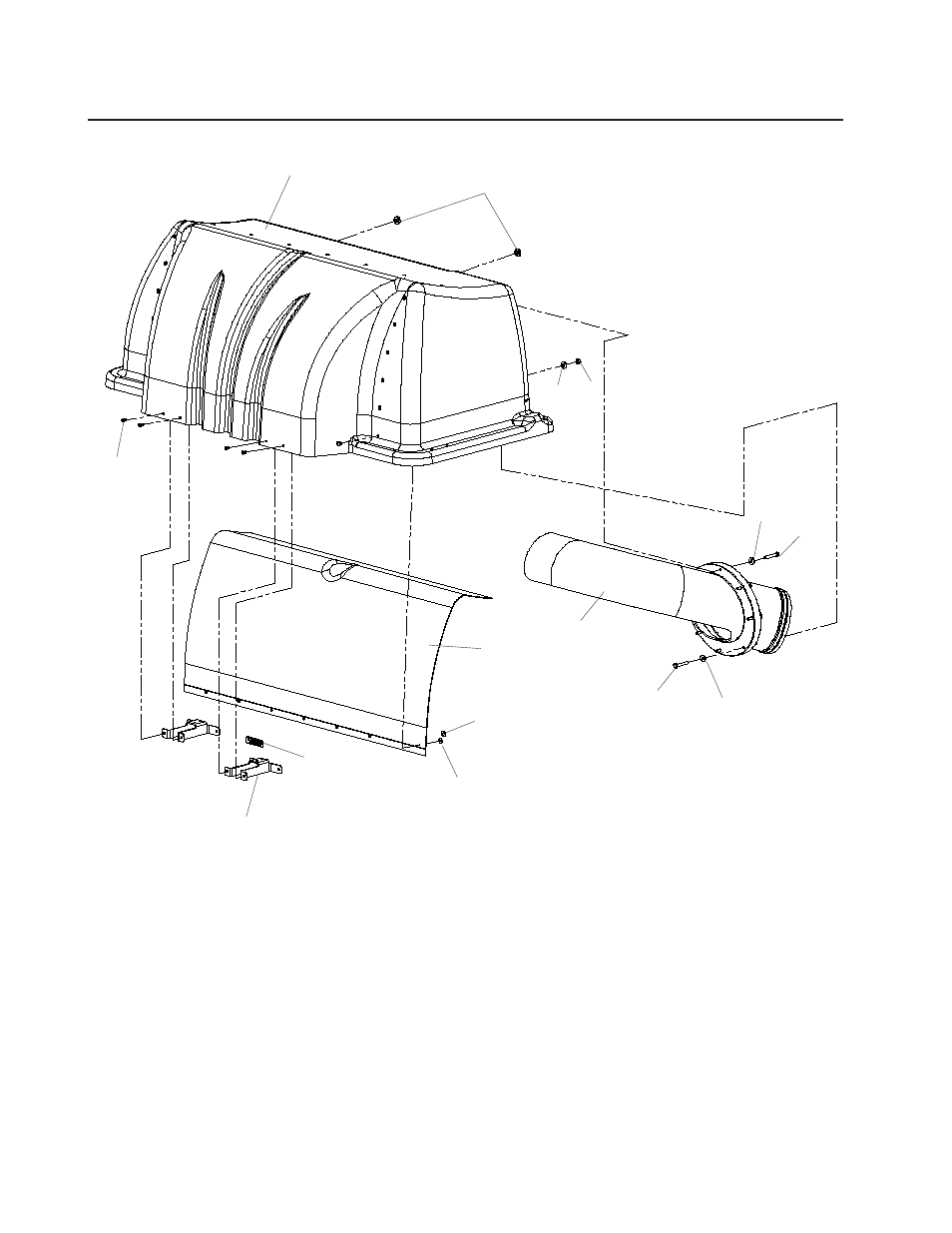

HOOD ASSEMBLY
ITEM P/N QTY. DESCRIPTION ITEM P/N QTY. DESCRIPTION
7 ... 539 976978 .... 8 .. NUT, ¼-20, NYLOK
8 ... 539 991003 .... 8 .. HCS, ¼-20 x 1¾, GR5
9 ... 539 990598 .. 16 .. WASHER, ¼
10 ... 539 102744 .... 7 .. RIVET, 3 /
16
x ¼
11 ... 539 200684 .. 25 .. RIVET, 3 /
16
, STAVEX
1
2
3
4
4
5
6
7
8
9
10
11
9
9
8
8059-018
