A
B
172736
NOTE: In some connection boxes the connector bridges are placed between contacts 4 and 5,
and in the others they are stored at a designated place within the box. These boxes have the
connection screws already in open position so they need not be unscrewed. During the tightening
procedure you will hear a faint “click”, meaning that the tightening screw should be fastened tightly
all the way.
Connection may be carried out by means of:
- rubber coated connection cables, model H05 RR-F 4x1,5 with yellow-green earthing cable;
- PVC insulated connection cables, model H05 VV-F 4x1,5 with yellow-green earthing cable; or
- any other suitable cables.
• To avoid any possible hazard, the appliance may be installed
by qualifi ed personnel only.
• Panels and furniture lining of the kitchen cabinet receiving
the hob must be treated with temperature resistant adhesives
(100°C), otherwise they might be discoloured or deformed
because of inadequate temperature resistance.
• The cooking hob is intended for building into the worktop
above the kitchen element of 600 mm width or more.
• After the installation of built-in hob make sure that there is free
access to the two fi xing elements in front.
• Suspended kitchen elements above the cooktop must
be installed at such distance to provide enough room for
comfortable working process.
• The distance between the worktop and the hood must be at
least such as indicated in the instructions for installation of the
kitchen hood, but in no case it may be less than 650 mm.
• The smallest distance between the edge of the appliance and
17

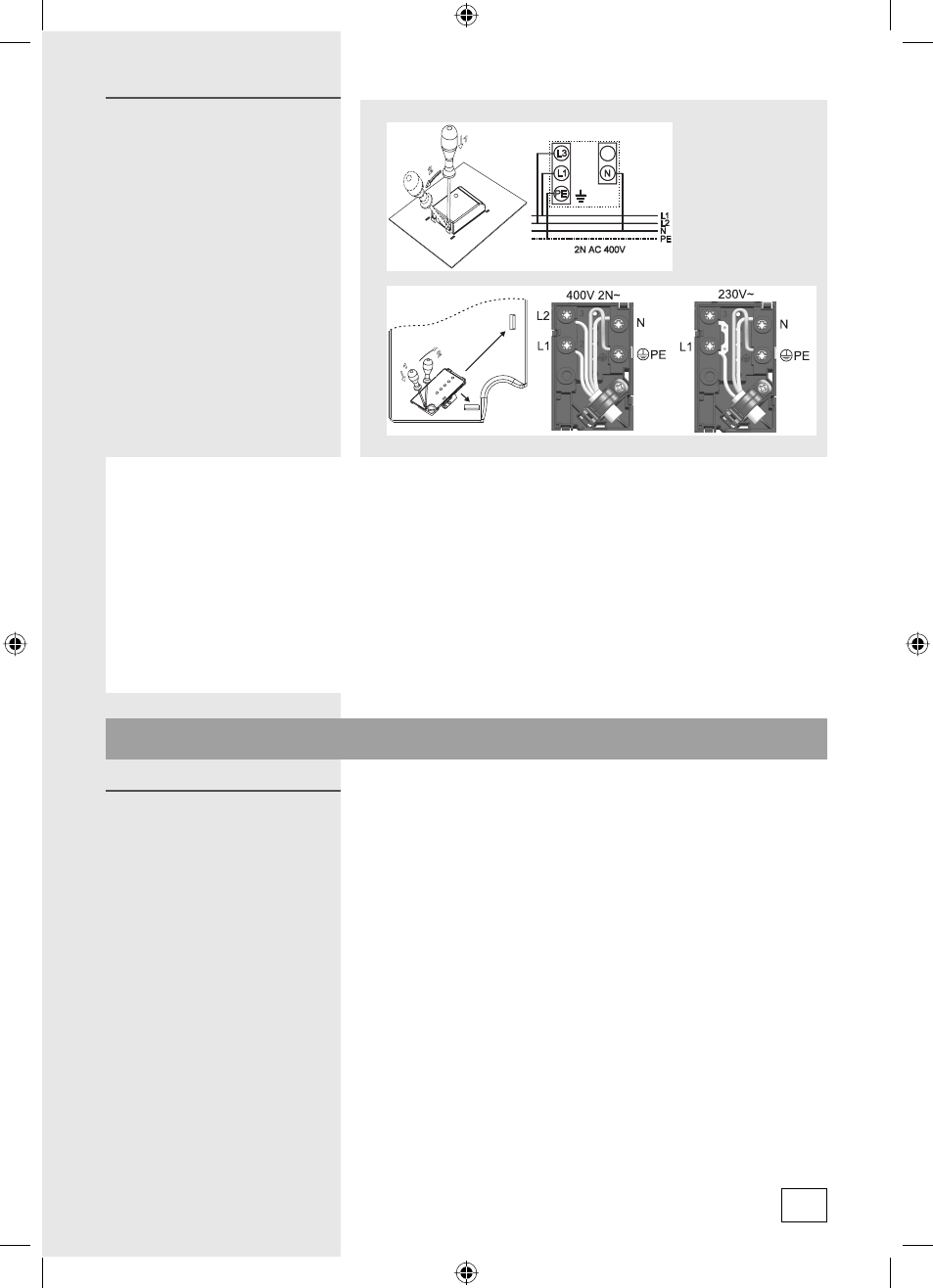

Installation diagram
Mounting the built-in cooktop
Caution !
