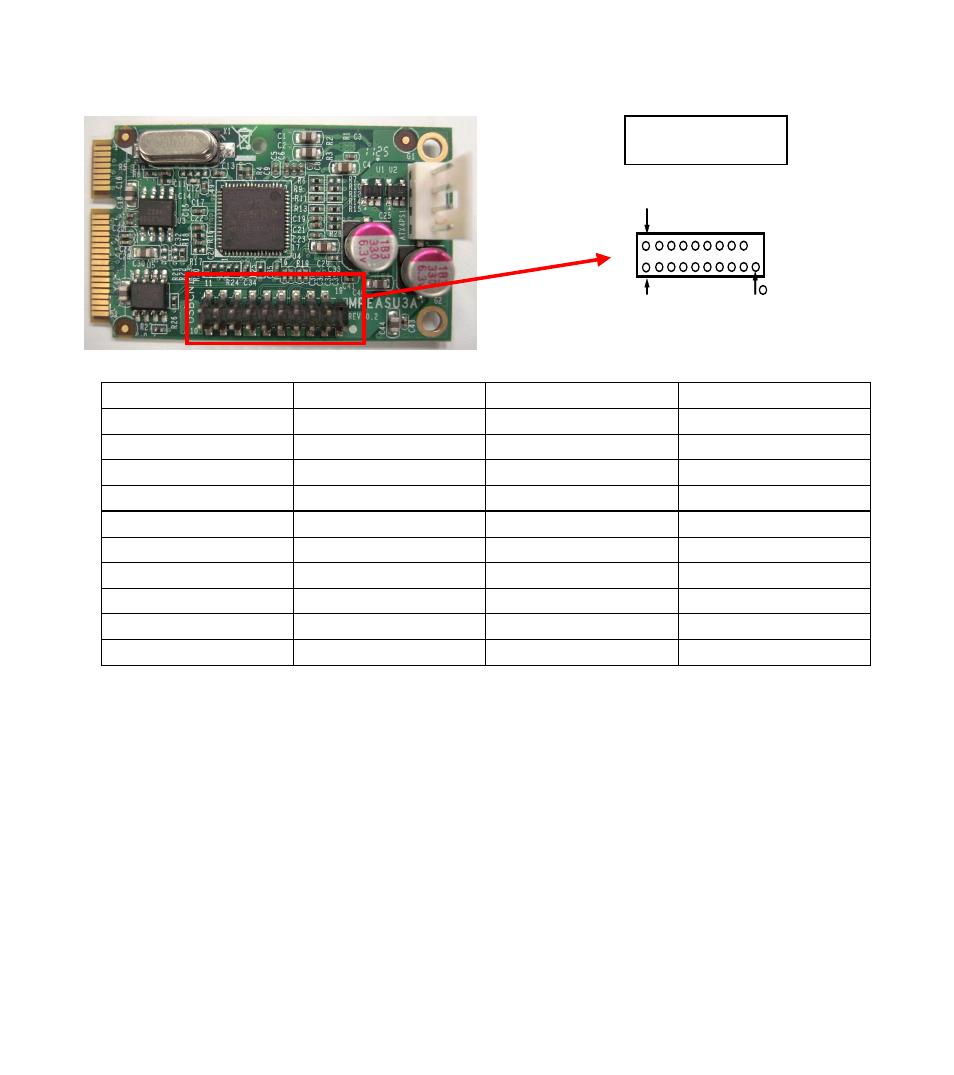

ADMASU3A pin header:
Pin Number
Pin Define
Pin Number
Pin Define
Pin1
USB3B_VCC
Pin19
USB3A_VCC
Pin2
USB3B_SSRX-
Pin18
USB3A_SSRX-
Pin3
USB3B_SSRX+
Pin17
USB3A_SSRX+
Pin4
GND-
Pin16
GND
Pin5
USB3B_SSTX-
Pin15
USB3A_SSTX-
Pin6
USB3B_SSTX+
Pin14
USB3A_SSTX+
Pin7
GND
Pin13
GND
Pin8
USB2B_D-
Pin12
USB2A_D-
Pin9
USB2B_D+
Pin11
USB2A_D+
Pin10
USB_OCA
Pin 1
Pin 10
Pin 11
USBCN1
