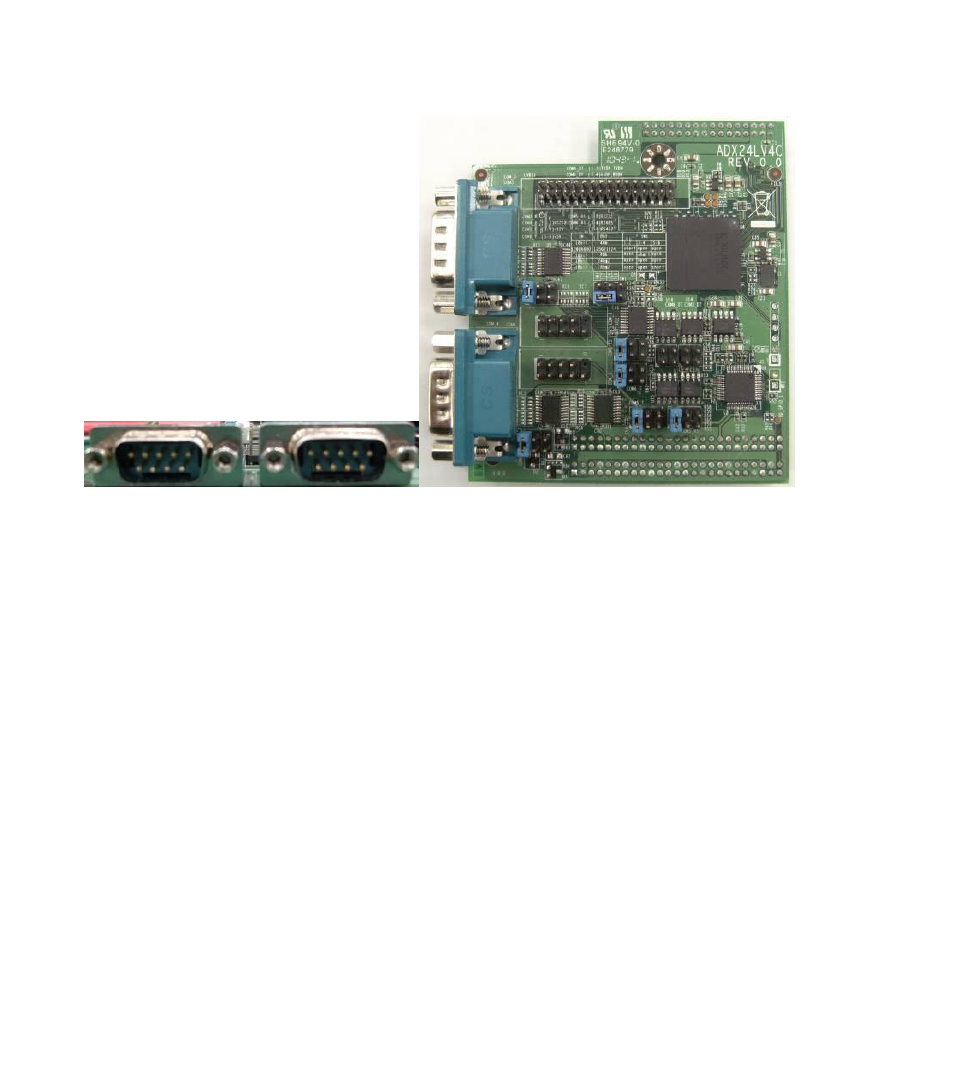

ADX24LV4C-LF
Feature
 Support 18 bit Single CH to 24 bit Dual CH LVDS

Support 18 bit Single CH to 2 * 24 bit Single CH LVDS
 Support 18 bit Single CH to 2 * 18 bit Single CH LVDS

Support two RS-232 serial ports (External)
 Support two RS-232/422/485 serial ports (Internal)

Four high-speed 16C550 compatible UART with 16-byte FIFOs

Fully programmable serial-interface characteristics

Baud rate up to 115.2K
 All of RS232s support powered function ( pin 9 )
Interface
 Jetway extend daughter card
Application
 Support 24 bit Dual CH LVDS Panel Display
 Support 24 bit Single CH LVDS Panel Display
 Support 18 bit Single CH LVDS Panel Display

Jetway NC9C & NF99 series M/B supported
