INSTALLATIoN INSTRucTIoNS
System Requirements:
• 2 GPM (0.6 lpm) or larger water pump.
• 1/2-inch (12.7 mm) water line terminating in 1/2-inch MPT fitting (to connect to toilet water supply hose).
• 4-bolt floor (closet) flange. SeaLand flanges available include 3-inch spigot, socket, MPT, or 45-degree swivel
socket.
• 2 VDC through 2-amp fuse or circuit breaker. Use 4-gauge stranded copper wire.
STEP 1: Carefully unpack the toilet bowl, rear access lid and floor flange adapter. cAuTIoN: hANdLe The vIT-
ReouS chINA ToILeT ANd AcceSS LId WITh cARe. SeT The LId IN AN AReA WheRe IT cANNoT be
bRoKeN. PLAce LId oN ToILeT oNLy AfTeR ToILeT INSTALLATIoN IS coMPLeTe.
STEP 2: Position the china bowl in the space intended. Confirm that adequate clearance is available for using the
flush handle and opening the seat and lid.
STEP 3: Mark the floor at the rear corners of the toilet bowl (fig. 1). Measure the distance between the two marks
and divide by 2 to find the toilet centerline. Mark the floor at the rear wall for the centerline.
STEP 4: Place a carpenter’s square against the back wall, and draw a center line on the floor at least 14 inches
(356 mm) long (fig. 2). Mark the centerline for the floor flange at 11-1/4 inches (286 mm) from the wall (fig. 3).
fig. 2 fig. 1

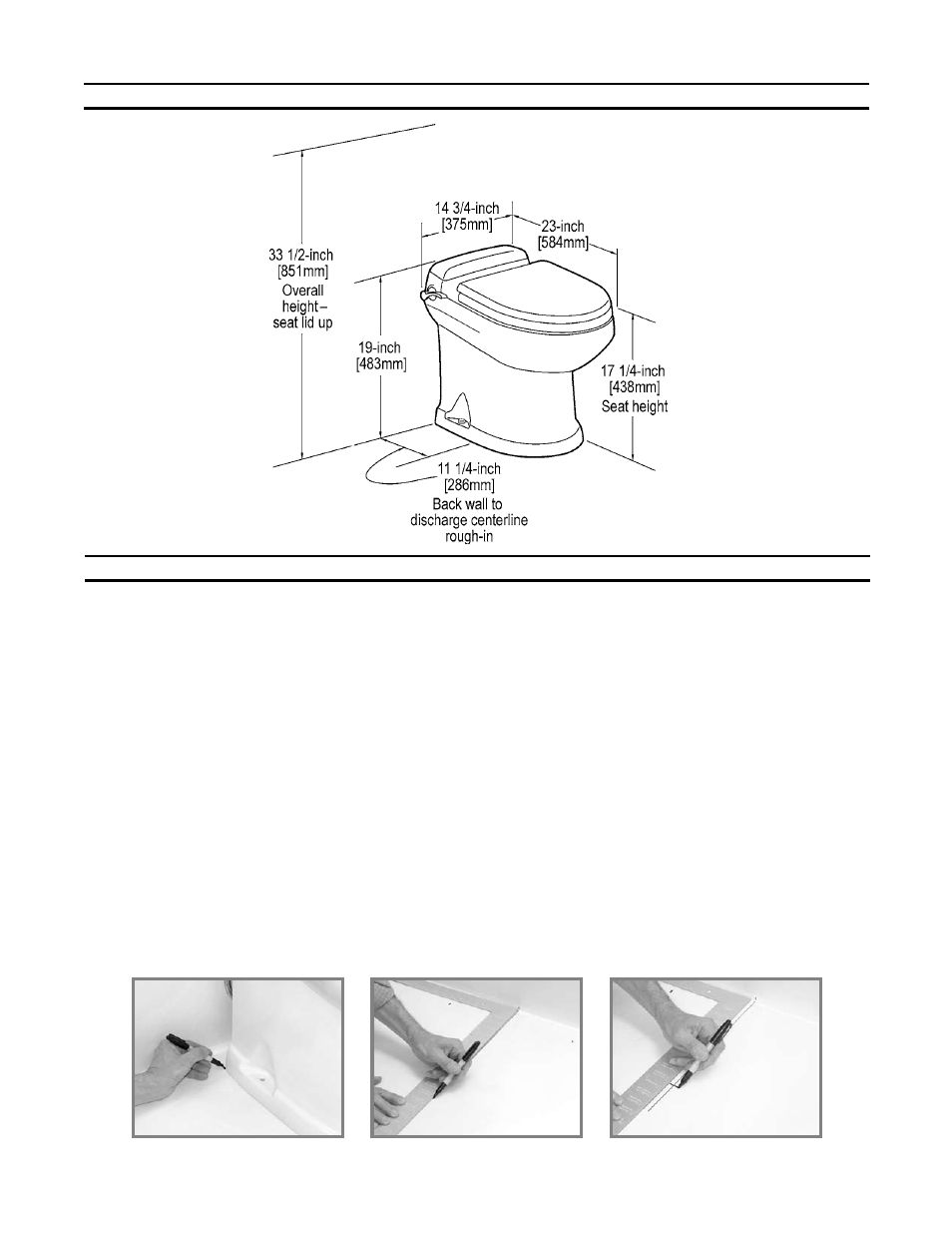

ToILeT dIMeNSIoNS
ModeL 3210
Dimensions may vary
±3/8-inch (13mm).
fig. 3
