Hypertherm HD4070 Product Configuration User Manual
Page 6
0
HD4070
Product Configuration Manual
1-3
SPECIFICATIONS
4070.97

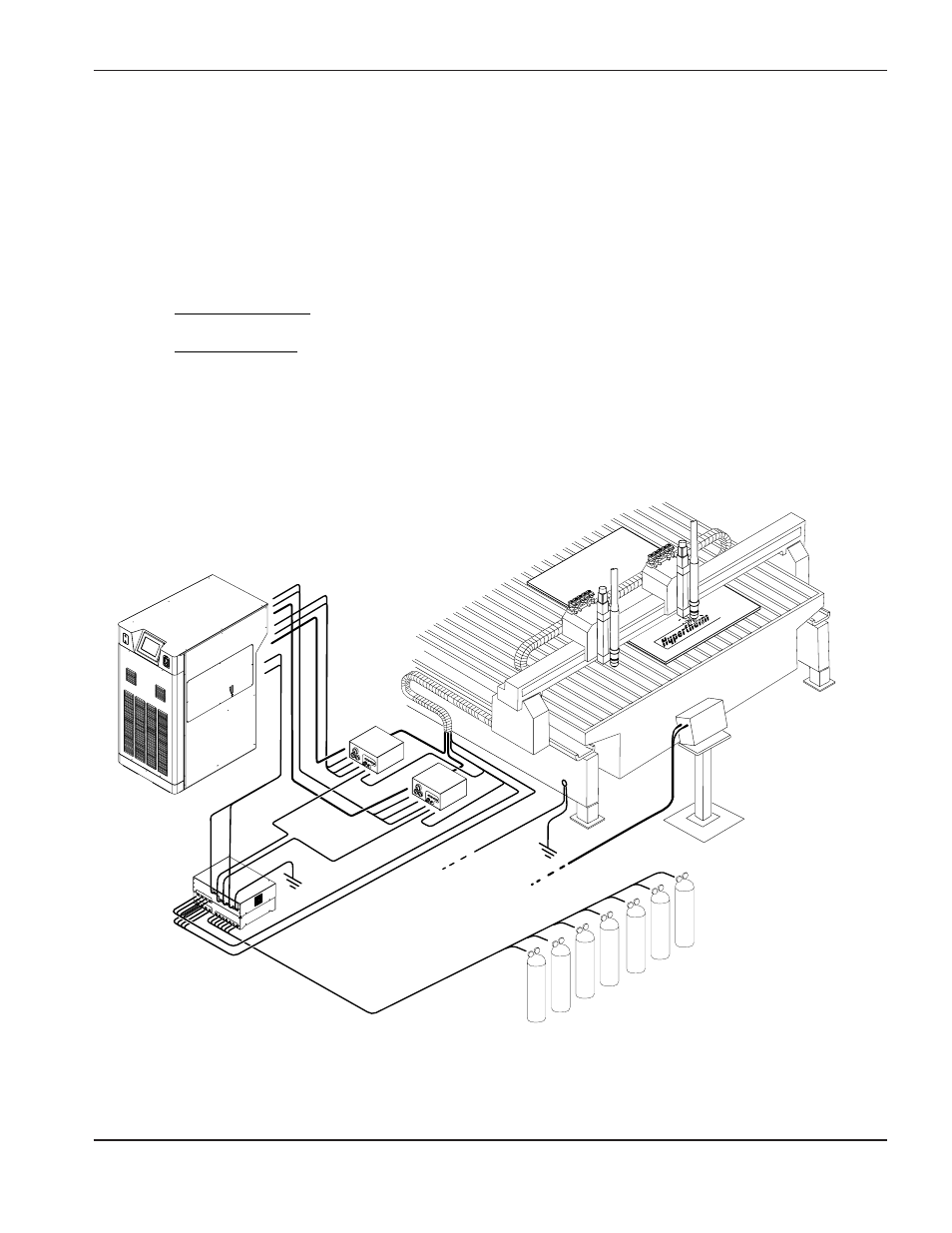

HD4070 System with 2-Torch Option
Options
• 2-Torch Option – The HD4070 plasma cutting/marking system has the ability to support 2 torches operated
from a single power supply and gas console. When one torch is selected for cutting the second torch is in
the off mode. This allows the operator to configure the system for two different processes (i.e. 100 amp
consumables installed in one torch and 200 amp consumables installed in the second torch). The operator
selects torch number-1 or torch number-2 from the HD4070 display (or CNC).
Note: A torch receptacle plug must be used if a two torch system is running in single torch mode.
Single torch mode is when a table is loaded with plate material and one torch is doing all the
cutting or marking.
Dual torch mode is when one torch is performing one operation and the second torch is
performing another operation on the same plate material.
