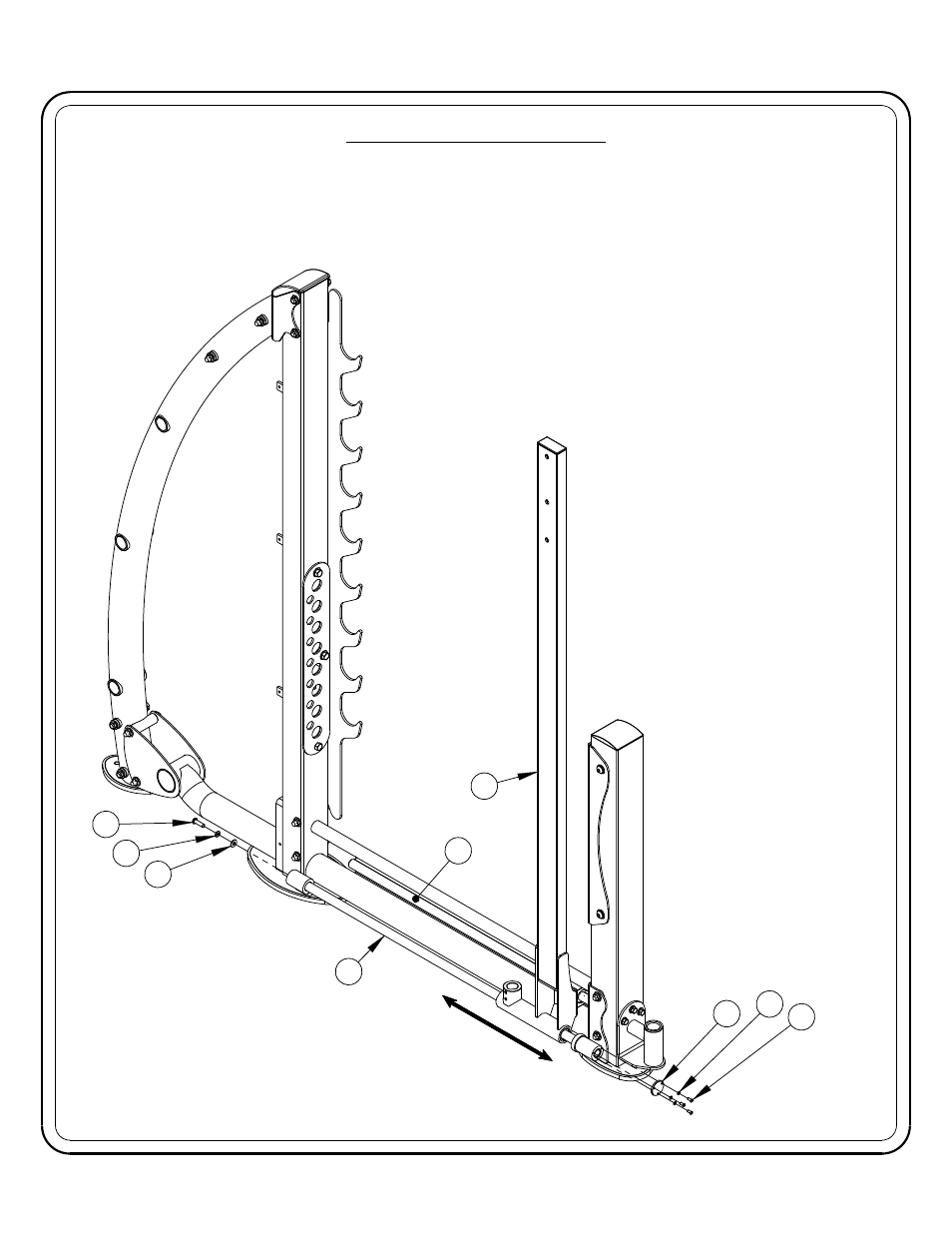

FRAME ASSEMBLY
- REPEAT ASSEMBLY FOR OPPOSITE SIDE.
- SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY.
SHAFTS ARE PROPERLY ALIGNED.
NOTE:
- WRENCH TIGHTEN HARDWARE TO SECURE (28).
- NOW THE HARDWARE FROM PAGE 1O NEEDS
TO BE TIGHTENED IN SEQUENCE TO ALIGN THE
SHAFTS. MOVE (1) TO THE MIDDLE OF SHAFT (28)
AND SEMI-TIGHTEN THE HARDWARE CONNECTING
(18) TO (1) AND ALSO THE TWO MIDDLE BOLTS
CONNECTING SHAFT (29) TO (8).
- MOVE (1) ALONG THE SHAFTS TO ONE END AND
SEMI-TIGHTEN THE BOLT AT THAT END
CONNECTING (29) TO (8), THEN MOVE (1)
TO THE OPPOSITE END AND TIGHTEN THAT BOLT.
- MOVE (1) BACK AND FORTH ALONG THE SHAFT
TO CHECK FOR SMOOTHNESS OF OPERATION
AND RE-ADJUST AS NEEDED.
- WRENCH TIGHTEN ALL HARDWARE AFTER THE
OWNER'S MANUAL
PAGE 11 CF-3754 ASSEMBLY
