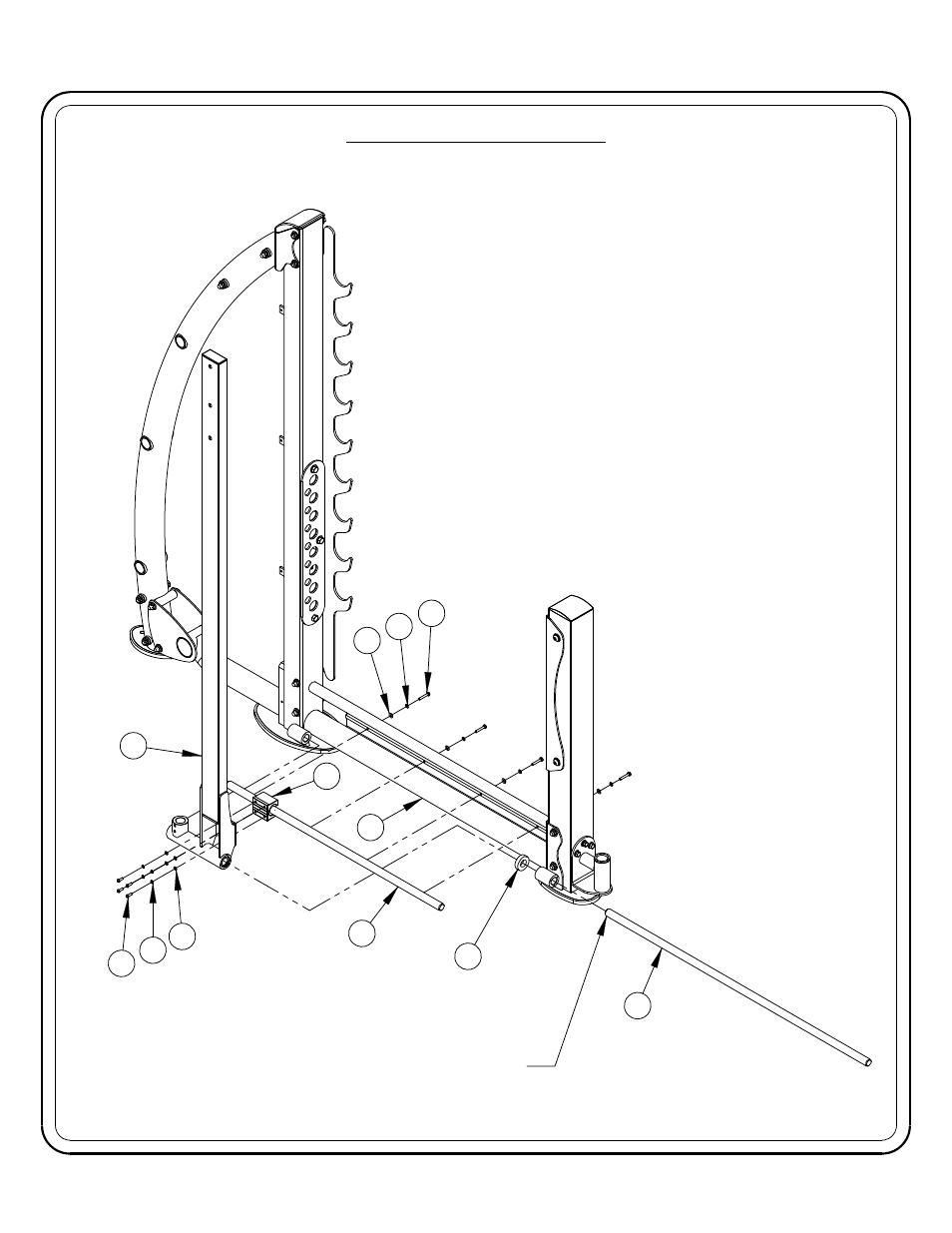

FRAME ASSEMBLY
NOTE:
- MOUNT (18) TO (4) AND HAND TIGHTEN HARDWARE.
- CAREFULLY INSTALL SHAFT (29) INTO (18)
AS SHOWN, AND BE SURE NOT TO DAMAGE
THE BEARINGS.
- CAREFULLY INSTALL SHAFT (28) THROUGH THE HOUSING ON (8),
RUBBER BUMPER (25),THEN INTO (4) AS SHOWN.
BE SURE NOT TO DAMAGE THE BEARINGS.
- ALIGN SHAFT (29) TO THE MOUNTING HOLES IN (8) AND HAND
TIGHTEN HARDWARE.
- REPEAT ASSEMBLY FOR OPPOSITE SIDE.
CF-3754 ASSEMBLY
OWNER'S MANUAL
PAGE 10
29
25
28
60
63
72
8
65
59
54
1
18
THREADED END
