Page 5: To install the expresscard adapter
Installing the adapter
5

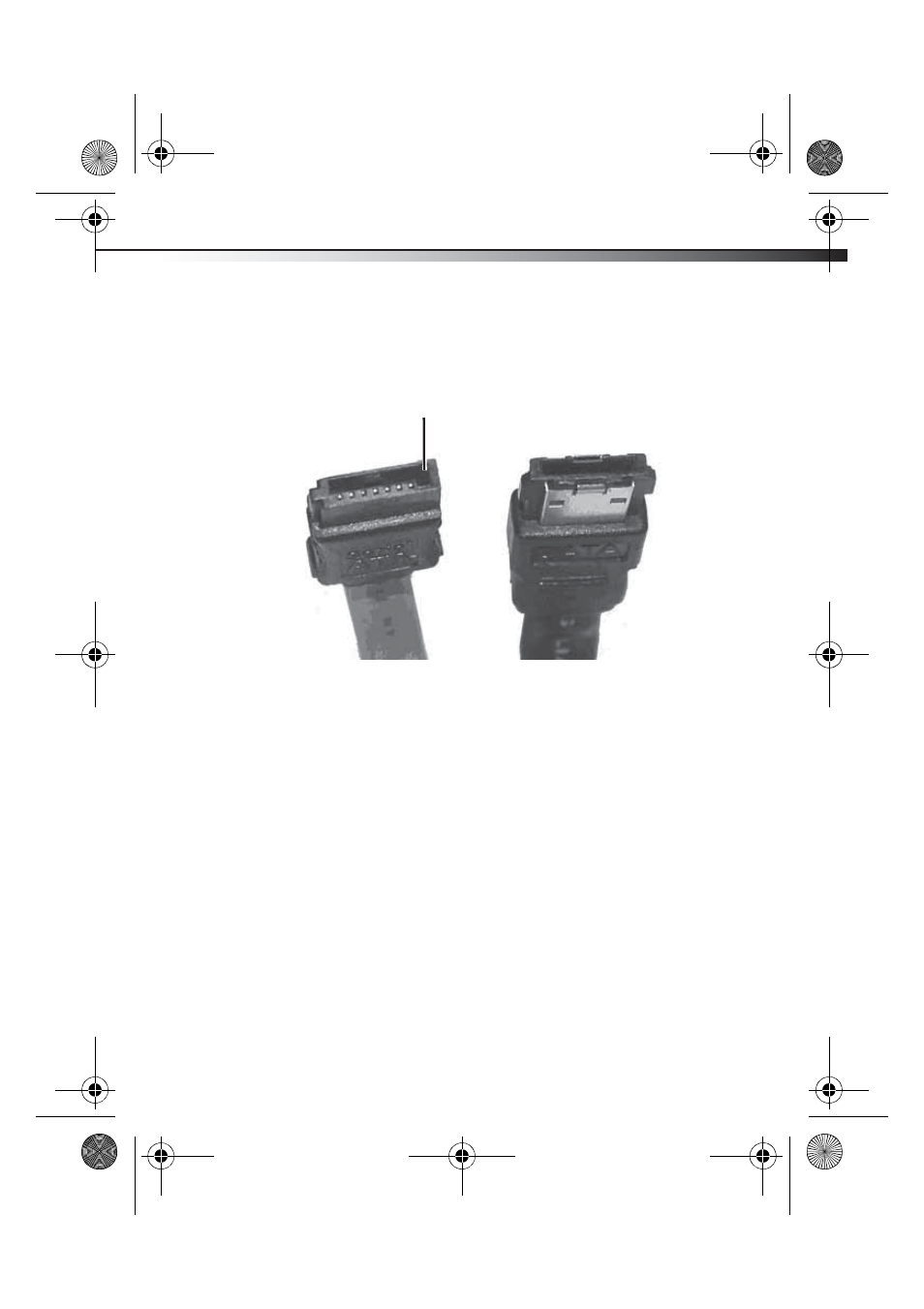

The following picture can help you to recognize both standard SATA and
eSATA cables. If you do not have an eSATA cable, you must purchase one
from your local dealer.
System requirements
• ExpressCard-enabled system with an available Express Card
34 mm or 54 mm slot
• Windows XP, Windows Vista, or Mac 10.4.x or higher
Installing the adapter
Installing the hardware
To install the ExpressCard adapter:
• Slide the ExpressCard adapter into the Express Card slot of
your notebook computer until it is firmly seated in the slot.
(Refer to the Express Card slot installation instructions in
your notebook computer’s user guide)
eSATA cable (no
L-shaped key)
SATA type A cable (has
an L-shaped key)
Use this connector
07-644 DX-ESATL small.fm Page 5 Thursday, December 27, 2007 12:26 PM
