Installation, Effect of installation on performance, Inlet duct turns discharge duct turns – Greenheck TCB/TCBRU/TCBRS (456557) User Manual

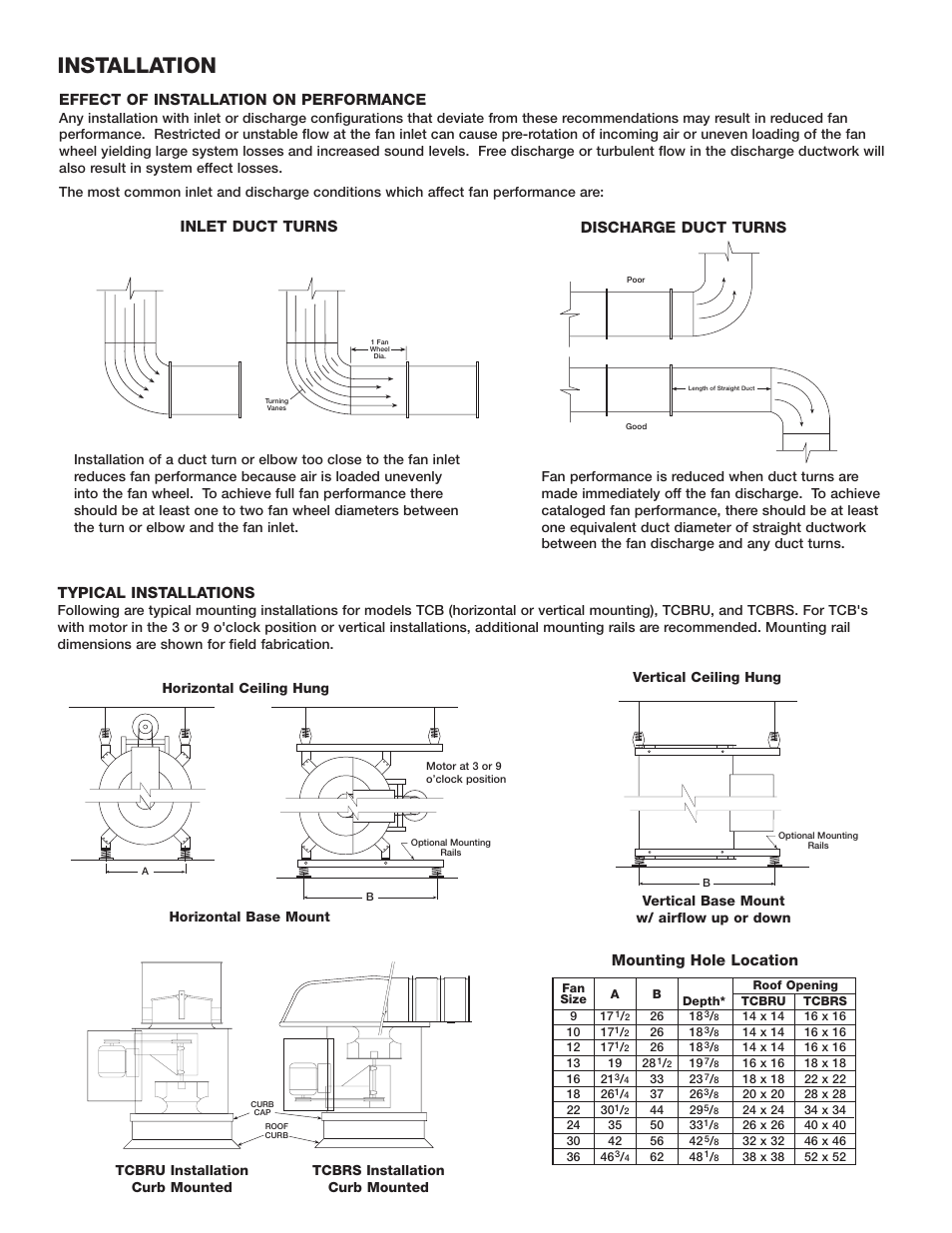

Page 2: Typical installations, Mounting hole location
