Installation instructions esd-635d, Structure depth – Greenheck ESD-635D, Chanel Installation (474639) User Manual
Page 9
9
Installation Instructions
eSD-635D
Florida Product Approval No: FL10088
Miami-Dade NOA No.: 12-0830.07
Maximum Wind-load: 150 PSF

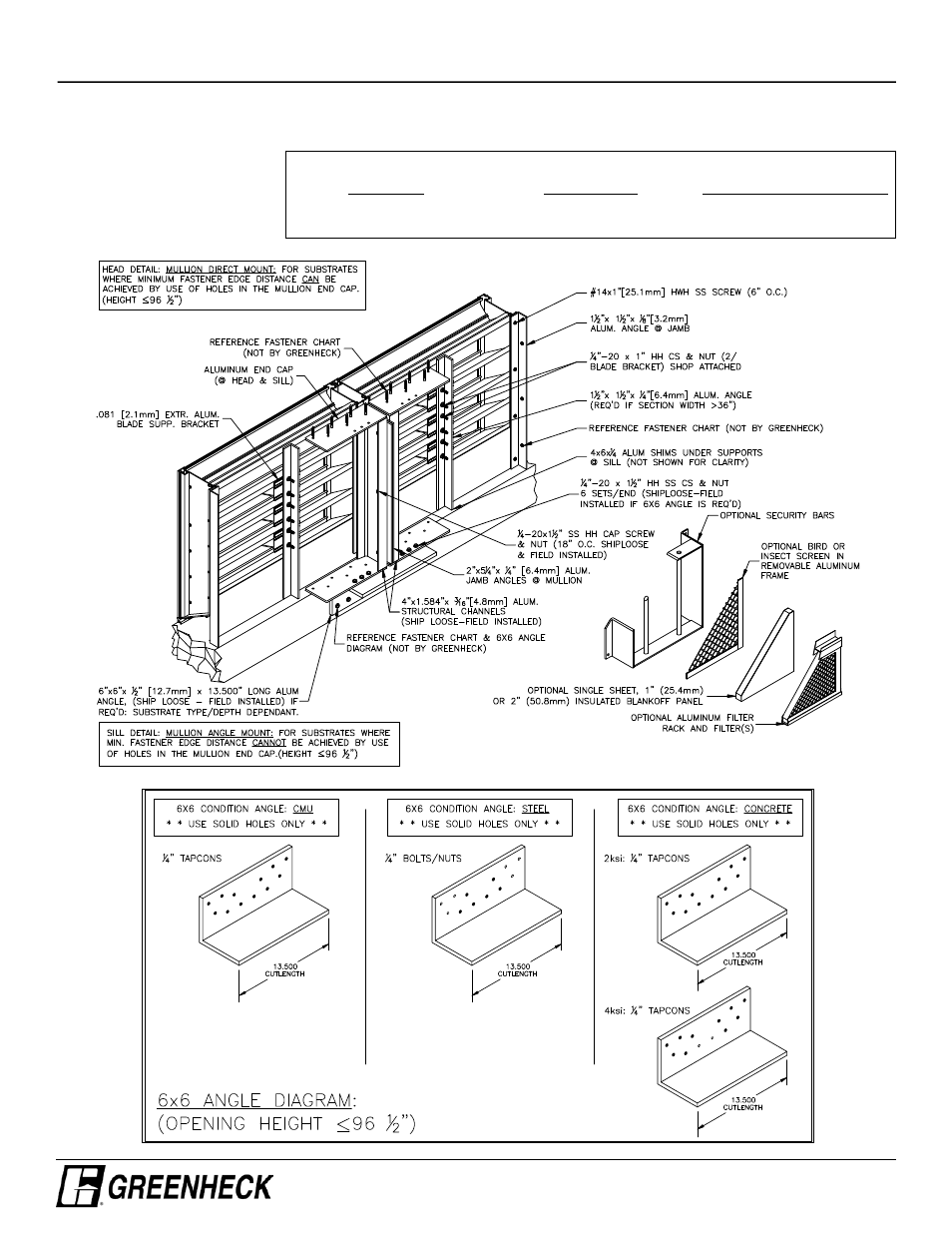

Channel Installation
Multiple Sections
Height ≤ 96 ½
CMU Substrate
• Min. structure depth 6.866 in.
• Max. structure depth 12.275 in.
Concrete Substrate
• Min. structure depth 6.866 in.
• Max. structure depth infinite
Steel Stud / Structural Steel Substrate
• Min. structure depth 5.866 in.
• Max. structure depth infinite
Structure Depth
