STEP 4: Assemble Exhaust Center Section
Hardware Required: (1) Exhaust Duct Adapter
(2) Exhaust Side Channels
(8) Screws, SMS (A) 12 x 0.625 (IHH
Instructions: • See Exhaust Center Assembly for positioning the Exhaust Duct Adapter and
Exhaust Side Channels.
• Align the holes and fasten as shown.
STEP 5: Assemble End base Section
Hardware Required: (18) 3 /
8
-16 x 3 /
4
Serrated Flange Bolts
(18) 3 /
8
-16 x 3 /
4
Serrated Flange Nuts
(1) End Channel
(2) End Base Outer Channels
(2) End Base Inner Channels
(2) Center Channels
(1) Exhaust Center Section (see Step 4)
Instructions: • Position Channels as shown in Exhaust Center and End base Assembly
• Align the holes and fasten as illustrated below.
4

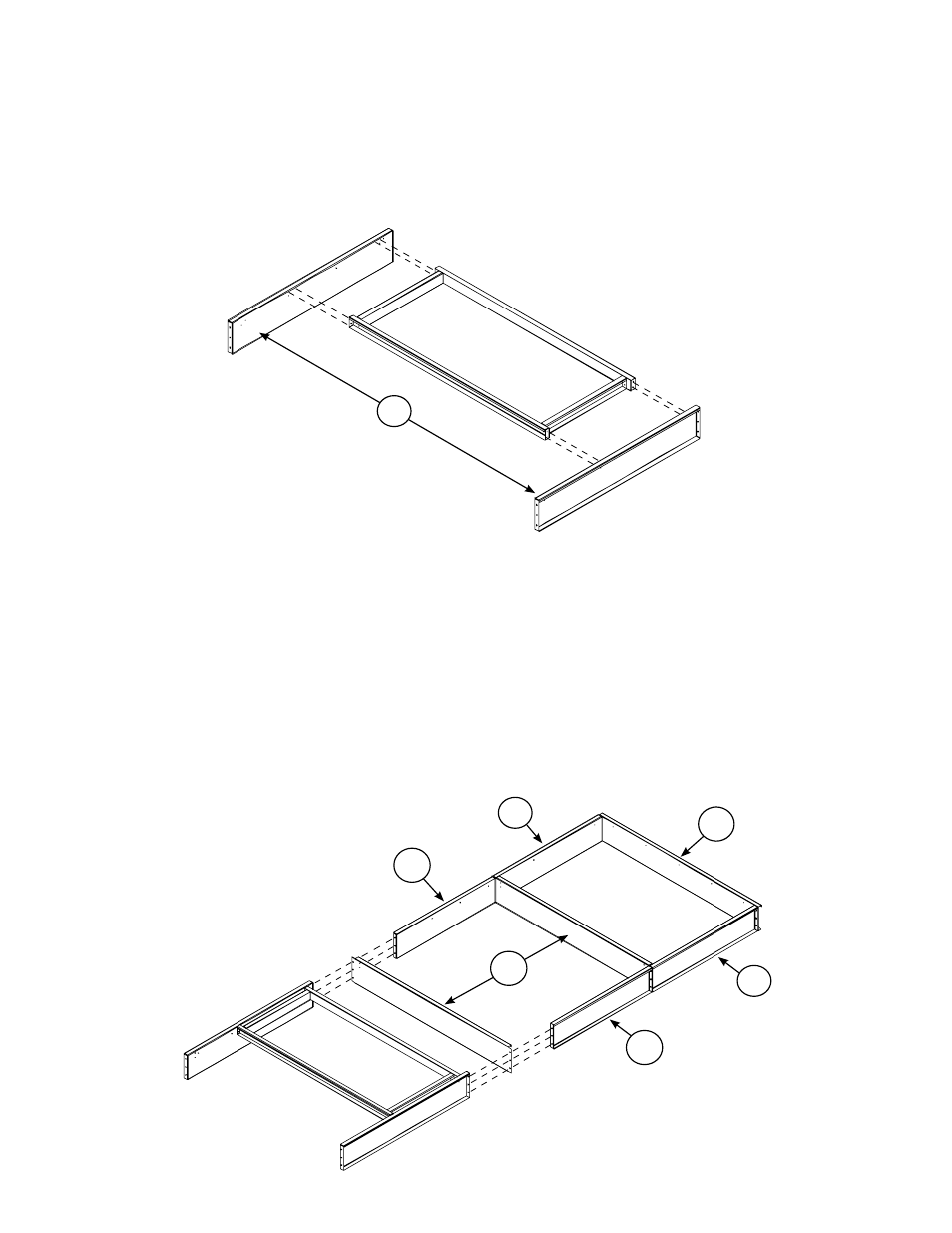

Exhaust Center
Assembly
Exhaust Center and End base
Assembly
1
5
6
6
