Installation
These Instructions are for the qualified technician, as a
guide to the installation, adjustment and maintenance,
according to the laws and standards in force. Any of
these operations must always be carried out when the
appliance has been disconnected from the electric
system.
Positioning (Fig. 4)
The appliance can be fitted into a working area as
illustrated on the figure.
Apply the seal supplied over the whole perimeter of the
working area.

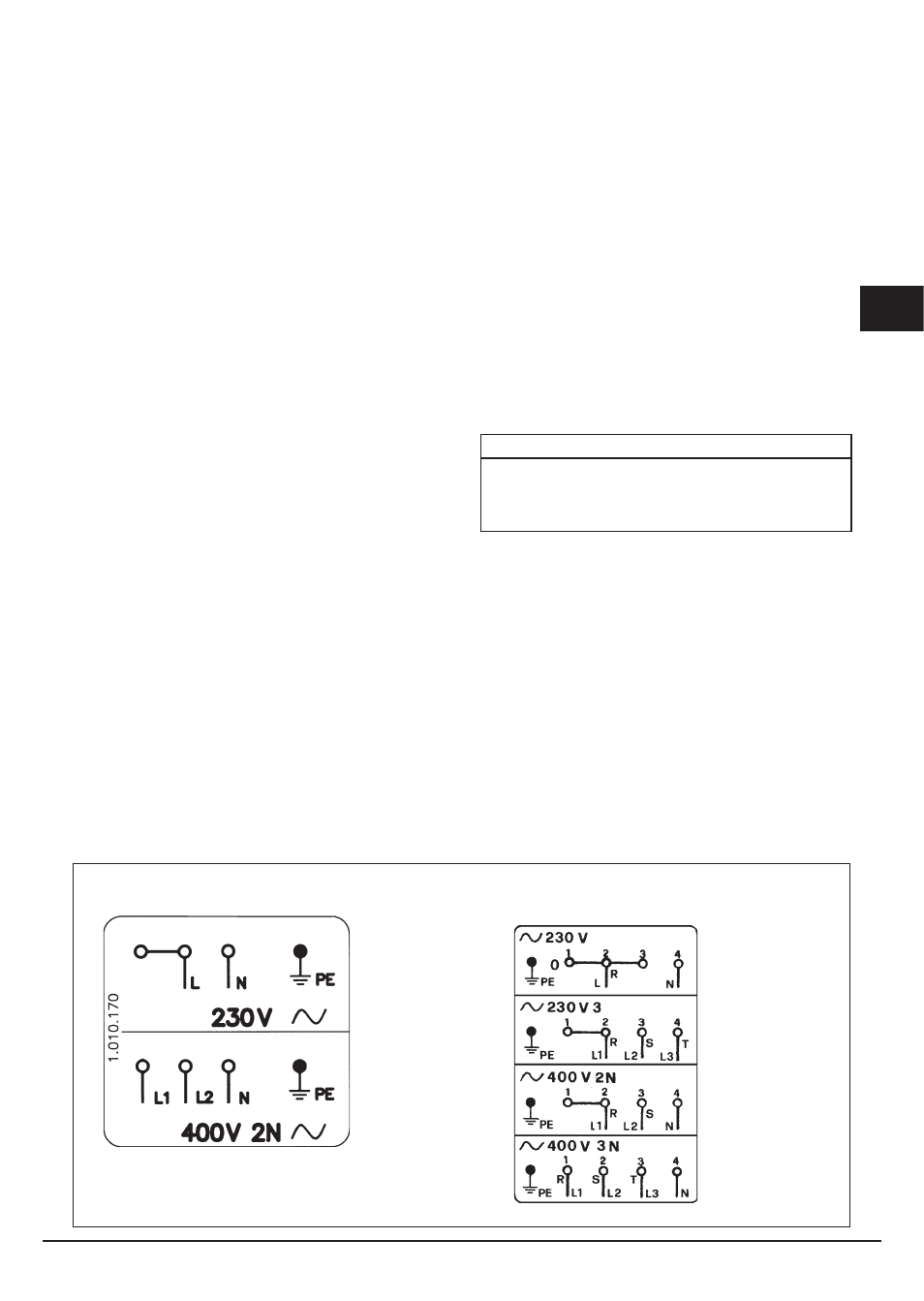

Electrical connection (Fig. 5)
Prior to carrying out the electrical connection, please
ensure that:
- the plant characteristics are such as to follow what is
indicated on the matrix plate placed at the bottom of
the working area;
- that the plant is fitted with an efficient earth connection,
following the standards and law provisions in force.
The earth connection is compulsory in terms of the
law.
Should there be no cable and/or plug on the equipment,
use suitable absorption material for the working
temperature as well, as indicated on the matrix
plate. Under no circumstance must the cable reach a
temperature above 50°C of the ambient temperature.
If connecting directly to the mains power supply, fit a
multipole switch of a suitable size for the rated capacity
with a clearance distance which completely disconnects
the power line under overvoltage category III conditions,
consistently with the rules of installation (the yellow/
green earth wir must not be interrupted).
The plug or omnipolar switch must be easily reached on
the installed equipment.
The manufacturers decline any responsibility in the
event of non-compliance with what is described above
and the accident prevention norms not being respected
and followed.
To avoid all risk, if the power cable becomes damaged,
it must only be replaced by the manufacturer, by an
authorised service centre, or by a qualified electrician.
Heating elements
Ø 145 1200 W / 1200 W
Ø 180 1700 W
H05RR-F3x2.5*
H05RR-F4x2.5
H05RR-F4x2.5
H05RR-F5x1.5
H05RR-F3x1.5
H05RR-F4x0.75
P30CD9X-P60CD9X
*Considering contemporaneity factor
Fig. 5
Instructions for the installation
